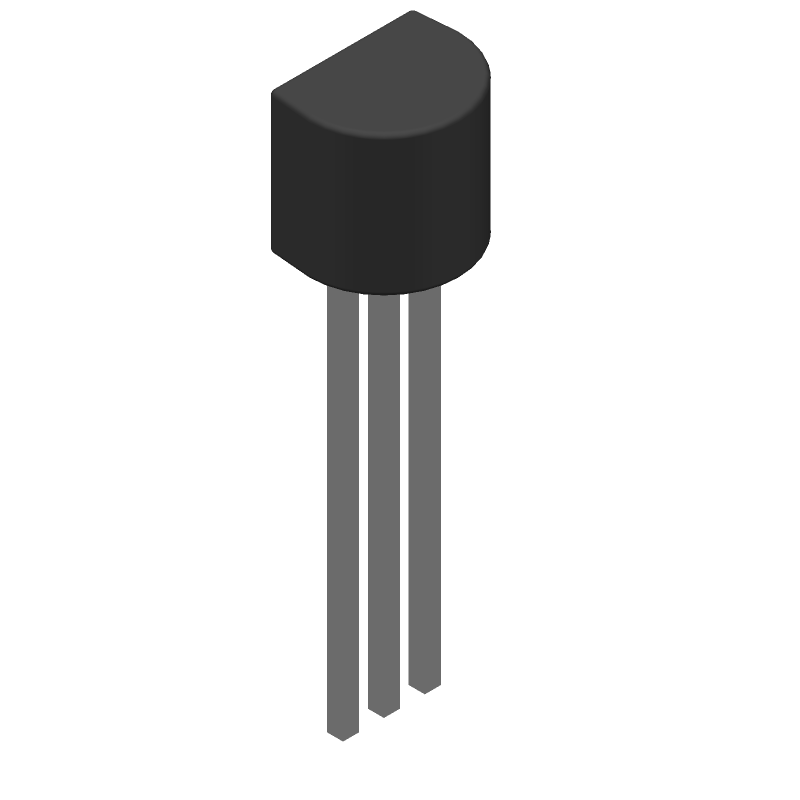

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for L79L05ABZ-AP by STMicroelectronics
Results Overview of L79L05ABZ-AP by STMicroelectronics
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
L79L05ABZ-AP Information
L79L05ABZ-AP by STMicroelectronics is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for L79L05ABZ-AP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AM3815
|
Newark | Linear Vr |Stmicroelectronics L79L05ABZ-AP RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Bulk | 10000 |
|
$0.1270 | Buy Now |
|
DISTI #
51AC9220
|
Newark | Linear Volt Reg, -5V, 0.1A, To-92 -3, Fixed Output Voltage Nom.:-5V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Input Voltage Min:-30V, Input Voltage Max:-10V, Product Range:-5V 100Ma Linear Voltage Regulators, rohs Compliant: Yes |Stmicroelectronics L79L05ABZ-AP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Bulk | 1750 |
|
$0.1100 / $0.3400 | Buy Now |
|
DISTI #
497-7297-1-ND
|
DigiKey | IC REG LINEAR -5V 100MA TO92-3 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Tape & Box (TB) |
1925 In Stock |
|
$0.1300 / $0.3400 | Buy Now |
|
DISTI #
L79L05ABZ-AP
|
Avnet Americas | Linear Voltage Regulator, Fixed, -30V to -10V Input, -5V/100mA Out, TO-92-3 - Ammo Pack (Alt: L79L05ABZ-AP) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks, 0 Days Container: Ammo Pack | 10000 |
|
$0.1219 / $0.1266 | Buy Now |
|
DISTI #
511-L79L05ABZ-AP
|
Mouser Electronics | Linear Voltage Regulators 5.0V 0.1A Negative Industrial Temp RoHS: Compliant | 5528 |
|
$0.1300 / $0.3400 | Buy Now |
|
|
STMicroelectronics | Negative voltage regulators RoHS: Compliant Min Qty: 1 | 5485 |
|
$0.1600 / $0.3300 | Buy Now |
|
DISTI #
L79L05ABZ-AP
|
TME | IC: voltage regulator, linear,fixed, -5V, 0.1A, TO92, THT, L79L Min Qty: 1 | 1166 |
|
$0.1070 / $0.4020 | Buy Now |
|
DISTI #
L79L05ABZ-AP
|
Avnet Silica | Linear Voltage Regulator Fixed 30V to 10V Input 5V100mA Out TO923 (Alt: L79L05ABZ-AP) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 11 Weeks, 0 Days | Silica - 104000 |
|
Buy Now | |
|
DISTI #
L79L05ABZ-AP
|
EBV Elektronik | Linear Voltage Regulator Fixed 30V to 10V Input 5V100mA Out TO923 (Alt: L79L05ABZ-AP) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 11 Weeks, 0 Days | EBV - 12000 |
|
Buy Now | |
|
|
LCSC | 100mA 49dB(120Hz) Fixed Negative electrode TO-226-3 Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS | 4000 |
|
$0.0615 / $0.1289 | Buy Now |
Part Details for L79L05ABZ-AP
L79L05ABZ-AP CAD Models
L79L05ABZ-AP Part Data Attributes
|
|
L79L05ABZ-AP
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
L79L05ABZ-AP
STMicroelectronics
Negative voltage regulators
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-92 | |
| Package Description | LEAD FREE, TO-92, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 1.7 V | |
| Input Voltage Absolute-Max | 30 V | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 7 V | |
| JESD-30 Code | O-XBCY-T3 | |
| JESD-609 Code | e3 | |
| Line Regulation-Max | 0.15% | |
| Load Regulation-Max | 0.06% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.1 A | |
| Output Voltage1-Max | 5.25 V | |
| Output Voltage1-Min | 4.75 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | TO-92 | |
| Package Equivalence Code | SIP3,.1,50 | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Packing Method | AMMO PACK | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Voltage Tolerance-Max | 5% |
Alternate Parts for L79L05ABZ-AP
This table gives cross-reference parts and alternative options found for L79L05ABZ-AP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of L79L05ABZ-AP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM79L05ACZ | Fairchild Semiconductor Corporation | Check for Price | Fixed Negative Standard Regulator, 5V, BIPolar, PBCY3, TO-92, 3 PIN | L79L05ABZ-AP vs LM79L05ACZ |
| LM79L05ACZ | National Semiconductor Corporation | Check for Price | IC VREG 5 V FIXED NEGATIVE REGULATOR, PBCY3, PLASTIC, TO-92, 3 PIN, Fixed Negative Single Output Standard Regulator | L79L05ABZ-AP vs LM79L05ACZ |
| LM79L05ACZ/NOPB | National Semiconductor Corporation | Check for Price | IC VREG 5 V FIXED NEGATIVE REGULATOR, PBCY3, PLASTIC, TO-92, 3 PIN, Fixed Negative Single Output Standard Regulator | L79L05ABZ-AP vs LM79L05ACZ/NOPB |
L79L05ABZ-AP Frequently Asked Questions (FAQ)
-
The maximum input voltage is 35V, but it's recommended to keep it below 20V for optimal performance and to prevent overheating.
-
To ensure stability, a minimum output capacitance of 2.2uF is recommended, and the capacitor should be placed as close to the output pin as possible.
-
The maximum output current is 150mA, but it's recommended to keep it below 100mA for optimal performance and to prevent overheating.
-
To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and keep the input voltage and output current within the recommended ranges.
-
The L79L05ABZ-AP is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. Ensure proper heat dissipation and derate the output current accordingly.
