Power Circuits / Switching Regulator or Controllers / L7986TR
Datasheets
L7986TR by:

3 A step-down switching regulator

Part Details for L7986TR by STMicroelectronics

Results Overview of L7986TR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

L7986TR Information

L7986TR by STMicroelectronics is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for L7986TR

Part # Distributor Description Stock Price Buy
DISTI # 38Y7890
Newark Dc-Dc Switching Buck (Step Down) Regulator, Adjustable, 4.5V-38Vin, 600Mv-38Vout, 3Aout, Vfqfn-10 Rohs Compliant: Yes |Stmicroelectronics L7986TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 7274
  • 1 $2.3000
  • 10 $2.0600
  • 100 $1.6600
  • 500 $1.3600
  • 1,000 $1.2900
$1.2900 / $2.3000 Buy Now
DISTI # 497-L7986TRCT-ND
DigiKey IC REG BUCK ADJUSTABLE 3A Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 10602
In Stock
  • 1 $2.2600
  • 10 $1.6770
  • 25 $1.5304
  • 100 $1.3690
  • 250 $1.2921
  • 500 $1.2457
  • 1,000 $1.2075
  • 4,000 $1.1503
  • 8,000 $1.1290
$1.1290 / $2.2600 Buy Now
DISTI # L7986TR
Avnet Americas Conv DC-DC Single Step Down 4.5V to 38V 10-Pin VFQFPN EP T/R - Tape and Reel (Alt: L7986TR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 111 Weeks, 0 Days Container: Reel 0
  • 4,000 $1.1273
  • 8,000 $1.1062
  • 16,000 $1.0893
  • 24,000 $1.0724
  • 32,000 $1.0555
$1.0555 / $1.1273 Buy Now
DISTI # L7986TR
Avnet Americas Conv DC-DC Single Step Down 4.5V to 38V 10-Pin VFQFPN EP T/R - Tape and Reel (Alt: L7986TR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 16 Weeks, 0 Days Container: Reel 0
  • 4,000 $1.0689
  • 8,000 $1.0621
  • 16,000 $1.0425
  • 24,000 $1.0235
  • 32,000 $1.0052
$1.0052 / $1.0689 Buy Now
DISTI # 511-L7986TR
Mouser Electronics Switching Voltage Regulators 2A Step-Down REG 2A DC 4.5 to 38V RoHS: Compliant 9458
  • 1 $2.2600
  • 10 $1.6800
  • 25 $1.5400
  • 100 $1.3700
  • 250 $1.3000
  • 500 $1.2500
  • 1,000 $1.2100
  • 2,000 $1.2000
  • 4,000 $1.1300
$1.1300 / $2.2600 Buy Now
DISTI # V36:1790_06553001
Arrow Electronics Conv DC-DC 4.5V to 38V Synchronous Step Down Single-Out 0.6V to 38V 3A 10-Pin VFQFPN EP T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 16 Weeks Date Code: 2404 Americas - 12000
  • 4,000 $1.0276
$1.0276 Buy Now
STMicroelectronics 3 A step-down switching regulator RoHS: Compliant Min Qty: 1 9458
  • 1 $2.2200
  • 10 $1.6500
  • 25 $1.5100
  • 100 $1.3400
  • 250 $1.2700
  • 500 $1.2300
$1.2300 / $2.2200 Buy Now
Future Electronics L7986 Series 38 V 3 A 275 kHz Buck Surface Mount Switching Regulator - VFQFPN-10 RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Lead time: 20 Weeks Container: Reel 4000
Reel
  • 4,000 $1.0900
$1.0900 Buy Now
Future Electronics L7986 Series 38 V 3 A 275 kHz Buck Surface Mount Switching Regulator - VFQFPN-10 RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Lead time: 20 Weeks Container: Reel 0
Reel
  • 4,000 $1.0900
$1.0900 Buy Now
DISTI # 78395536
Verical Conv DC-DC 4.5V to 38V Synchronous Step Down Single-Out 0.6V to 38V 3A 10-Pin VFQFPN EP T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Date Code: 2404 Americas - 12000
  • 4,000 $1.0276
$1.0276 Buy Now
DISTI # 30607380
Verical Conv DC-DC 4.5V to 38V Synchronous Step Down Single-Out 0.6V to 38V 3A 10-Pin VFQFPN EP T/R RoHS: Compliant Min Qty: 27 Package Multiple: 1 Americas - 7705
  • 27 $1.5200
  • 50 $1.4800
  • 100 $1.3300
  • 500 $1.1800
  • 1,000 $1.1100
  • 2,000 $1.0900
  • 4,000 $1.0400
$1.0400 / $1.5200 Buy Now
Future Electronics L7986 Series 38 V 3 A 275 kHz Buck Surface Mount Switching Regulator - VFQFPN-10 Min Qty: 4000 Package Multiple: 4000 4000
null
  • 4,000 $1.0900
$1.0900 Buy Now
DISTI # L7986TR
Avnet Silica Conv DCDC Single Step Down 45V to 38V 10Pin VFQFPN EP TR (Alt: L7986TR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 17 Weeks, 0 Days Silica - 24000
Buy Now
DISTI # L7986TR
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 7705
  • 1 $2.1900
  • 10 $1.5200
  • 50 $1.4800
  • 100 $1.3300
  • 500 $1.1800
  • 1,000 $1.1100
  • 2,000 $1.0900
  • 4,000 $1.0400
  • 8,000 $1.0200
  • 16,000 $0.9650
$0.9650 / $2.1900 Buy Now
Chip-Germany GmbH   RoHS: Not Compliant 2186
RFQ
DISTI # L7986TR
EBV Elektronik Conv DCDC Single Step Down 45V to 38V 10Pin VFQFPN EP TR (Alt: L7986TR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 17 Weeks, 0 Days EBV - 148000
Buy Now
Vyrian Other Function Semiconductors 23444
RFQ

Part Details for L7986TR

L7986TR CAD Models

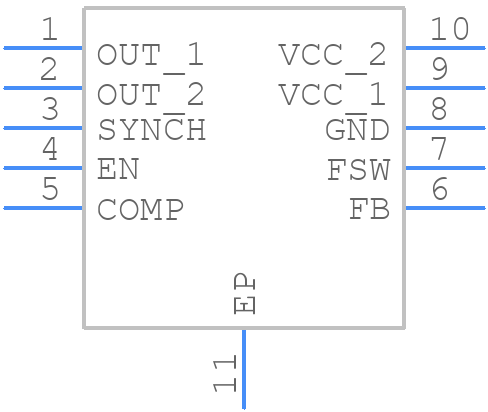

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

L7986TR Part Data Attributes

Parametric Data
L7986TR STMicroelectronics
Buy Now Datasheet
Compare Parts:
L7986TR STMicroelectronics 3 A step-down switching regulator
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 16 Weeks
Samacsys Manufacturer STMicroelectronics
Additional Feature OPERATES IN ADJUSTABLE MODE FROM 0.6V TO 38V
Analog IC - Other Type SWITCHING REGULATOR
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 38 V
Input Voltage-Min 4.5 V
Input Voltage-Nom 12 V
JESD-30 Code S-PDSO-N10
Length 3 mm
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 10
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current-Max 4.7 A
Package Body Material PLASTIC/EPOXY
Package Code HVSON
Package Equivalence Code SOLCC10,.11,20
Package Shape SQUARE
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 1 mm
Surface Mount YES
Switcher Configuration BUCK
Switching Frequency-Max 1000 kHz
Temperature Grade AUTOMOTIVE
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 3 mm

Alternate Parts for L7986TR

This table gives cross-reference parts and alternative options found for L7986TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of L7986TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
L7986A STMicroelectronics $1.3792 3 A step-down switching regulator L7986TR vs L7986A
A7986A STMicroelectronics $1.5208 3 A step-down switching regulator for automotive applications L7986TR vs A7986A
L7986TA STMicroelectronics $1.7136 3 A step-down switching regulator L7986TR vs L7986TA
NB675GL-Z Monolithic Power Systems Check for Price Switching Regulator, Voltage-mode, 10A, 600kHz Switching Freq-Max, 3 X 4 MM, MO-220, QFN-21 L7986TR vs NB675GL-Z

L7986TR Related Parts

L7986TR Frequently Asked Questions (FAQ)

  • The L7986TR can handle a maximum input voltage of 30V, but it's recommended to keep it below 28V for reliable operation.

  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor (at least 10uF), and add a 10nF capacitor between the VIN and EN pins.

  • The L7986TR can operate with an input voltage as low as 7V, but the output voltage regulation may not be guaranteed below 8V.

  • The L7986TR is rated for operation up to 150°C, but it's recommended to derate the output current and input voltage to ensure reliable operation above 125°C.

  • The output voltage of the L7986TR is adjustable and can be calculated using the formula: Vout = 1.25 x (1 + R2/R1), where R1 and R2 are the resistors connected to the FB pin.
