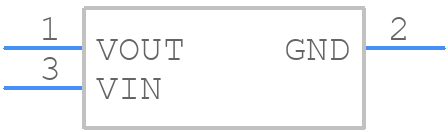

Part Symbol
-
Footprint
-

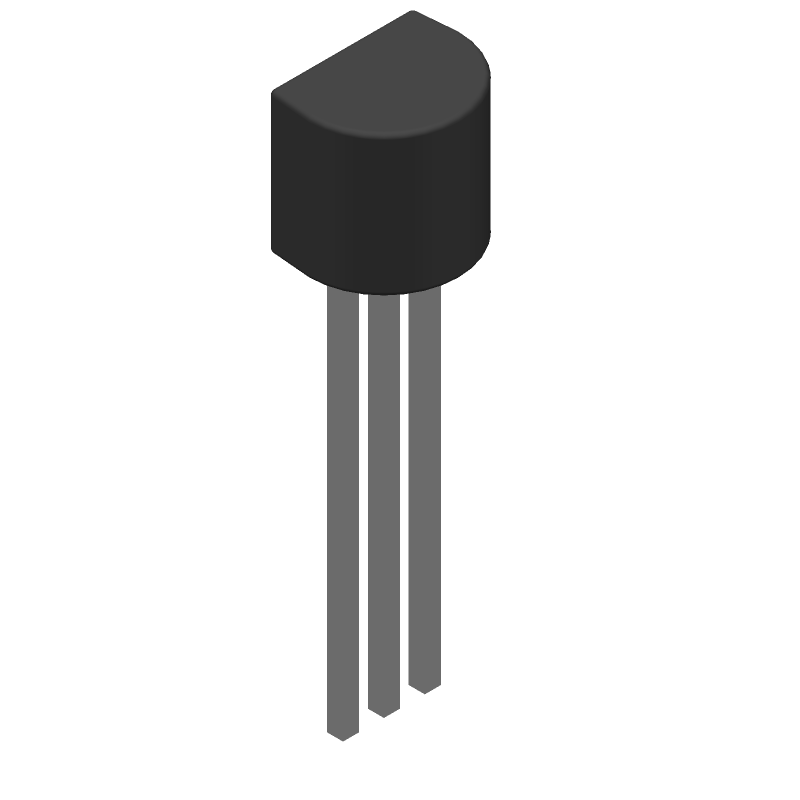

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for L78L33ACZ by STMicroelectronics
Results Overview of L78L33ACZ by STMicroelectronics
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
L78L33ACZ Information
L78L33ACZ by STMicroelectronics is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for L78L33ACZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58M8381
|
Newark | Volt Reg, Fixed, 3.3V, 0.1A, 0-125Degc, Output Type:Fixed, No. Of Outputs:1Outputs, Output Voltage Min:-, Output Voltage Max:-, Input Voltage Min:-, Input Voltage Max:30V, Product Range:-, Ic Case/Package:To-92, No. Of Pins:3Pins Rohs Compliant: Yes |Stmicroelectronics L78L33ACZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 115166 |
|
$0.0800 | Buy Now |
|
DISTI #
497-7288-ND
|
DigiKey | IC REG LINEAR 3.3V 100MA TO92-3 Min Qty: 1 Lead time: 10 Weeks Container: Bulk |
1418 In Stock |
|
$0.1060 / $0.2700 | Buy Now |
|
DISTI #
58M8381
|
Avnet Americas | Linear Voltage Regulator, Fixed, 30V in, 3.3V/100mA Out, TO-92-3, 0 to 125 ?C - Bulk (Alt: 58M8381) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Bulk | 29272 Partner Stock |
|
$0.1330 / $0.2910 | Buy Now |
|
DISTI #
L78L33ACZ
|
Avnet Americas | Linear Voltage Regulator, Fixed, 30V in, 3.3V/100mA Out, TO-92-3, 0 to 125 ?C - Bag (Alt: L78L33ACZ) RoHS: Compliant Min Qty: 7500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days Container: Bag | 0 |
|
$0.0914 / $0.0972 | Buy Now |
|
DISTI #
511-L78L33ACZ
|
Mouser Electronics | Linear Voltage Regulators 3.3V 0.1A Positive RoHS: Compliant | 16352 |
|
$0.1060 / $0.2700 | Buy Now |
|
|
STMicroelectronics | Positive voltage regulators RoHS: Compliant Min Qty: 1 | 16352 |
|
$0.1200 / $0.2700 | Buy Now |
|
DISTI #
86929275
|
Verical | Standard Regulator Pos 3.3V 0.1A 3-Pin TO-92 Bag RoHS: Compliant Min Qty: 625 Package Multiple: 1 | Americas - 29272 |
|
$0.1784 | Buy Now |
|
|
Quest Components | 3.3 V FIXED POSITIVE REGULATOR, BCY3 | 544 |
|
$0.1400 / $0.7000 | Buy Now |
|
DISTI #
L78L33ACZ
|
TME | IC: voltage regulator, linear,fixed, 3.3V, 0.1A, TO92, THT, L78L Min Qty: 1 | 3058 |
|
$0.0770 / $0.3470 | Buy Now |
|
DISTI #
L78L33ACZ
|
IBS Electronics | LINEAR VOLTAGE REGULATOR FIXED 30V IN 3.3V/100MA OUT TO-92-3 0 TO 125 ½, C Min Qty: 10000 Package Multiple: 1 | 0 |
|
$0.0527 / $0.0580 | Buy Now |
Part Details for L78L33ACZ
L78L33ACZ CAD Models
L78L33ACZ Part Data Attributes
|
|
L78L33ACZ
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
L78L33ACZ
STMicroelectronics
Positive voltage regulators
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TO-92 | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 16 Weeks, 3 Days | |
| Samacsys Manufacturer | STMicroelectronics | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 1.7 V | |
| Input Voltage Absolute-Max | 30 V | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 5.3 V | |
| JESD-30 Code | O-XBCY-T3 | |
| JESD-609 Code | e3 | |
| Line Regulation-Max | 0.15% | |
| Load Regulation-Max | 0.06% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 0.07 A | |
| Output Voltage1-Max | 3.465 V | |
| Output Voltage1-Min | 3.135 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | TO-92 | |
| Package Equivalence Code | SIP3,.1,50 | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Voltage Tolerance-Max | 5% |
Alternate Parts for L78L33ACZ
This table gives cross-reference parts and alternative options found for L78L33ACZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of L78L33ACZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| L78L33ACZ-AP | STMicroelectronics | $0.1667 | Positive voltage regulators | L78L33ACZ vs L78L33ACZ-AP |
| L78L33ACZTR | STMicroelectronics | $0.1797 | Positive voltage regulators | L78L33ACZ vs L78L33ACZTR |
| L78L33ABZ-AP | STMicroelectronics | $0.1833 | Positive voltage regulators | L78L33ACZ vs L78L33ABZ-AP |
| L78L33ABZ | STMicroelectronics | Check for Price | 3.3V FIXED POSITIVE REGULATOR, BCY3, ROHS COMPLIANT, TO-92, 3 PIN | L78L33ACZ vs L78L33ABZ |
| L78L33ABZ-TR | STMicroelectronics | Check for Price | 3.3V FIXED POSITIVE REGULATOR, BCY3, ROHS COMPLIANT, TO-92, 3 PIN | L78L33ACZ vs L78L33ABZ-TR |
| L78L33ACZ-TR | STMicroelectronics | Check for Price | 3.3V FIXED POSITIVE REGULATOR, BCY3, ROHS COMPLIANT, TO-92, 3 PIN | L78L33ACZ vs L78L33ACZ-TR |
L78L33ACZ Frequently Asked Questions (FAQ)
-
The maximum input voltage for the L78L33ACZ is 35V, but it's recommended to keep it below 30V for reliable operation.
-
To ensure stability, make sure to use a minimum output capacitance of 2.2uF, and keep the input capacitance as close to the regulator as possible. Also, use a low-ESR capacitor for the output.
-
The dropout voltage of the L78L33ACZ is around 2V, which means the input voltage should be at least 2V higher than the output voltage for proper regulation.
-
The L78L33ACZ is rated for operation up to 125°C, but its performance may degrade at high temperatures. Make sure to derate the output current and consider using a heat sink if operating in high-temperature environments.
-
Use a TVS (Transient Voltage Suppressor) diode or a zener diode in parallel with the input capacitor to protect the regulator from voltage surges and spikes.
