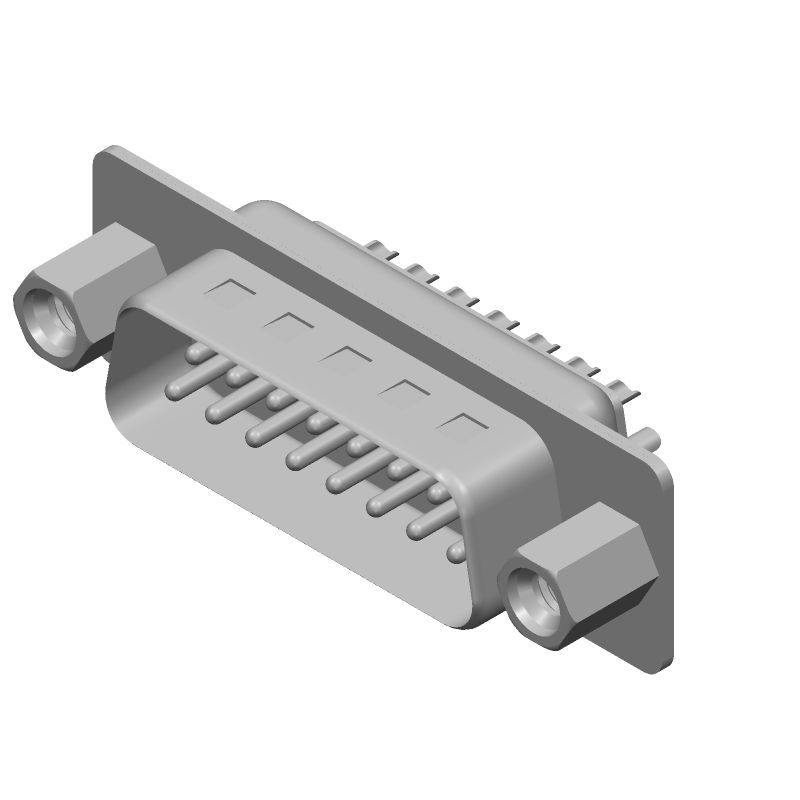

L717SDA15PVF by Amphenol Communications Solutions is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for L717SDA15PVF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01M1205
|
Newark | D Sub Conn, Plug, Da, 15Pos, Solder Cup, D Sub Connector Type:Standard, Gender:Plug, Product Range:Sd Series, No. Of Contacts:15Contacts, D Sub Shell Size:Da, Contact Termination Type:Solder Cup, Connector Mounting:Panel Mount Rohs Compliant: Yes |Amphenol Communications Solutions L717SDA15PVF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 13 |
|
$0.9460 / $1.1200 | Buy Now |
|
|
Onlinecomponents.com | Conn D-Subminiature PIN 15 POS 2.74mm Solder Cup ST Thru-Hole 15 Terminal 1 Port RoHS: Compliant |
140 In Stock |
|
$0.7950 / $1.1820 | Buy Now |
|
|
Master Electronics | Conn D-Subminiature PIN 15 POS 2.74mm Solder Cup ST Thru-Hole 15 Terminal 1 Port RoHS: Compliant |
140 In Stock |
|
$0.7950 / $1.1820 | Buy Now |
Part Details for L717SDA15PVF
L717SDA15PVF CAD Models
L717SDA15PVF Part Data Attributes
|
|
L717SDA15PVF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
L717SDA15PVF
Amphenol Communications Solutions
D-Sub Standard Density Connector, Input Output Connectors, Stamped Signal 3A, Straight Solder Cup, 15 Position Plug, Flash Gold, Bright Tin Shell with Grounding Dimples, 4-40 Fixed Front Screwlock
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Pin Count | 15 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Body Breadth | 0.494 inch | |
| Body Depth | 0.161 inch | |
| Body Length | 1.543 inch | |
| Body/Shell Style | PLUG | |
| Connector Type | D SUBMINIATURE CONNECTOR | |
| Contact Gender | MALE | |
| Contact Pattern | STAGGERED | |
| Contact Resistance | 20 mΩ | |
| Contact Style | RND PIN-SKT | |
| Dielectric Withstanding Voltage | 1414VAC V | |
| Empty Shell | NO | |
| Filter Feature | NO | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | GLASS FILLED POLYETHYLENE PBT | |
| Mating Contact Pitch | 0.109 inch | |
| Mating Contact Row Spacing | 0.112 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | #4-40 UNC | |
| Mounting Type | CABLE | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 2 | |
| Option | GENERAL PURPOSE | |
| Plating Thickness | FLASH inch | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | UL | |
| Shell Finish | TIN | |
| Shell Material | STEEL | |
| Shell Size | 2/A | |
| Terminal Length | 0.122 inch | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 15 | |
| UL Flammability Code | 94V-0 |
