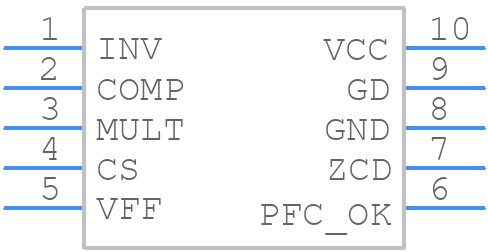

Part Symbol
-

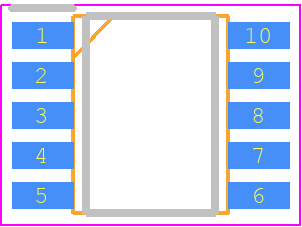

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for L6564TDTR by STMicroelectronics
Results Overview of L6564TDTR by STMicroelectronics
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Energy and Power Systems
Renewable Energy
L6564TDTR Information
L6564TDTR by STMicroelectronics is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for L6564TDTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-12830-1-ND
|
DigiKey | IC PFC CTRLR TRANSITION 10SSOP Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6785 In Stock |
|
$0.6086 / $1.3100 | Buy Now |
|
DISTI #
L6564TDTR
|
Avnet Americas | Power Factor Correction CONTRLR 0.09mA 10-Pin SSOP T/R - Tape and Reel (Alt: L6564TDTR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.5675 / $0.5792 | Buy Now |
|
DISTI #
511-L6564TDTR
|
Mouser Electronics | Power Factor Correction - PFC 2.5A Single H-Side 9.5V - 35V SP Switch RoHS: Compliant | 0 |
|
$0.6160 | Order Now |
|
|
Bristol Electronics | 4262 |
|
RFQ | ||
|
|
Quest Components | 3409 |
|
$0.6270 / $2.0900 | Buy Now | |
|
|
ComSIT USA | 10-PIN TRANSITION-MODE PFC CONTROLLER Switching Controller, Current-mode, PDSO10 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
L6564TDTR
|
IBS Electronics | L6564TDTR by STMicroelectronics is a surface mount transition-mode PFC controller in SSOP-10 package, featuring 22.5V, 6mA operation, ideal for efficient power factor correction applications. Min Qty: 2500 Package Multiple: 1 | 0 |
|
$0.7605 / $0.7735 | Buy Now |
|
DISTI #
L6564TDTR
|
Avnet Silica | Power Factor Correction CONTRLR 009mA 10Pin SSOP TR (Alt: L6564TDTR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days | Silica - 2500 |
|
Buy Now | |
|
|
Cytech Systems Limited | IC PFC CTRLR TRANSITION 10SSOP | 2500 |
|
RFQ | |
|
DISTI #
L6564TDTR
|
EBV Elektronik | Power Factor Correction CONTRLR 009mA 10Pin SSOP TR (Alt: L6564TDTR) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks, 0 Days | EBV - 7500 |
|
Buy Now |
Part Details for L6564TDTR
L6564TDTR CAD Models
L6564TDTR Part Data Attributes
|
|
L6564TDTR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
L6564TDTR
STMicroelectronics
10 pin transition-mode PFC controller for outdoor applications
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | ROHS COMPLIANT, SSOP-10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 22.5 V | |
| Input Voltage-Min | 10.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDSO-G10 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SOP10,.25,40 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 6 mA | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 3.9 mm |
