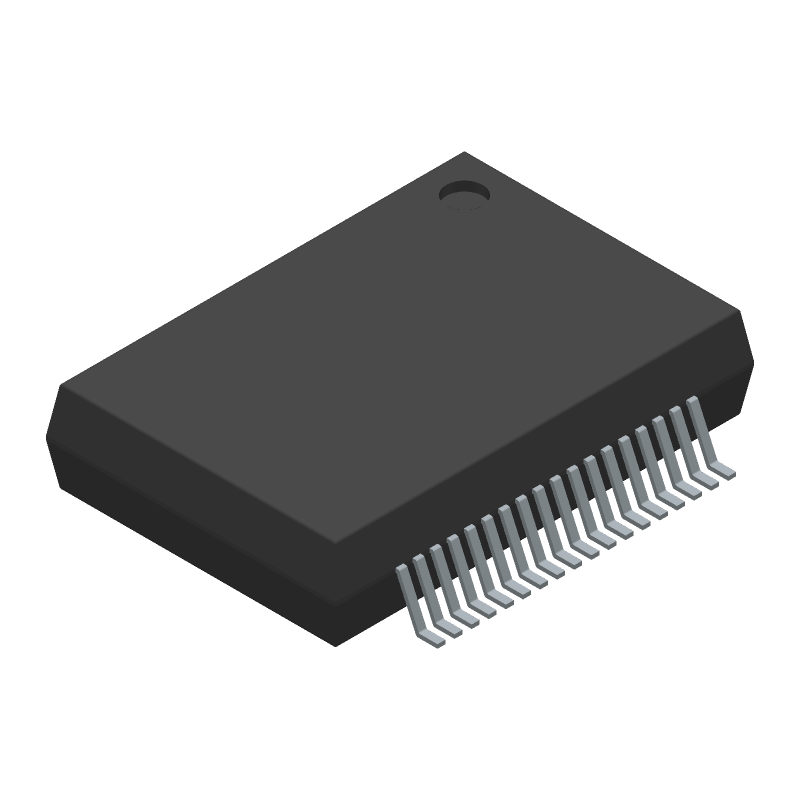

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for L6235PD013TR by STMicroelectronics
Results Overview of L6235PD013TR by STMicroelectronics
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
L6235PD013TR Information
L6235PD013TR by STMicroelectronics is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for L6235PD013TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45AC7250
|
Newark | Motor Driver, 3P Bldc, Powerso-36, Ic Type:Motor Driver, Motor Type:Three Phase Brushless Dc, No. Of Outputs:1Outputs, Output Current:2.8A, Output Voltage:52V, Ic Case/Package:Powerso, No. Of Pins:36Pins, Supply Voltage Min:12V Rohs Compliant: Yes |Stmicroelectronics L6235PD013TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1370 |
|
$7.7000 / $10.8600 | Buy Now |
|
DISTI #
497-4010-1-ND
|
DigiKey | IC MOTOR DRVR 12V-52V 36POWERSO Min Qty: 1 Lead time: 30 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
6167 In Stock |
|
$5.0029 / $8.5300 | Buy Now |
|
DISTI #
L6235PD013TR
|
Avnet Americas | 3-Phase Brushless DC Motor Controller 42V 36-Pin PowerSO T/R - Tape and Reel (Alt: L6235PD013TR) RoHS: Compliant Min Qty: 600 Package Multiple: 600 Lead time: 30 Weeks, 0 Days Container: Reel | 0 |
|
$4.4048 / $4.6835 | Buy Now |
|
DISTI #
511-L6235PD013TR
|
Mouser Electronics | Motor / Motion / Ignition Controllers & Drivers Three Phase Motor RoHS: Compliant | 3202 |
|
$5.0000 / $8.5300 | Buy Now |
|
DISTI #
V72:2272_06552233
|
Arrow Electronics | 3-Phase Brushless DC Motor Controller 42V 36-Pin PowerSO T/R Min Qty: 1 Package Multiple: 1 Lead time: 30 Weeks Date Code: 2348 Container: Cut Strips | Americas - 3225 |
|
$4.7450 / $6.3920 | Buy Now |
|
DISTI #
E02:0323_00208230
|
Arrow Electronics | 3-Phase Brushless DC Motor Controller 42V 36-Pin PowerSO T/R Min Qty: 600 Package Multiple: 600 Lead time: 30 Weeks Date Code: 2449 | Europe - 1200 |
|
$4.2810 | Buy Now |
|
|
STMicroelectronics | DMOS driver for 3-phase brushless DC motor RoHS: Compliant Min Qty: 1 | 3199 |
|
$5.2600 / $8.3600 | Buy Now |
|
DISTI #
76062578
|
Verical | 3-Phase Brushless DC Motor Controller 42V 36-Pin PowerSO T/R Min Qty: 2 Package Multiple: 1 Date Code: 2348 | Americas - 3225 |
|
$4.7450 / $6.3920 | Buy Now |
|
DISTI #
87768359
|
Verical | 3-Phase Brushless DC Motor Controller 42V 36-Pin PowerSO T/R Min Qty: 600 Package Multiple: 600 Date Code: 2449 | Americas - 1200 |
|
$4.2931 | Buy Now |
|
DISTI #
53290025
|
Verical | 3-Phase Brushless DC Motor Controller 42V 36-Pin PowerSO T/R Min Qty: 7 Package Multiple: 1 | Americas - 785 |
|
$4.1100 / $6.1300 | Buy Now |
Part Details for L6235PD013TR
L6235PD013TR CAD Models
L6235PD013TR Part Data Attributes
|
|
L6235PD013TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
L6235PD013TR
STMicroelectronics
DMOS driver for 3-phase brushless DC motor
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | POWER, SOP-36 | |
| Pin Count | 36 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 30 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Analog IC - Other Type | BRUSHLESS DC MOTOR CONTROLLER | |
| JESD-30 Code | R-PDSO-G36 | |
| JESD-609 Code | e3 | |
| Length | 15.9 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 36 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 5.6 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP36,.5 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 3.6 mm | |
| Supply Current-Max (Isup) | 10 mA | |
| Supply Voltage-Max (Vsup) | 52 V | |
| Supply Voltage-Min (Vsup) | 8 V | |
| Supply Voltage-Nom (Vsup) | 48 V | |
| Surface Mount | YES | |
| Technology | BCDMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 11 mm |
L6235PD013TR Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the L6235PD013TR is -40°C to 150°C.
-
To ensure stability, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm, and to follow the layout guidelines provided in the datasheet.
-
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of at least 25V.
-
Yes, the L6235PD013TR is qualified for automotive and industrial applications, and is suitable for high-reliability applications.
-
The L6235PD013TR has built-in overcurrent protection and thermal shutdown. Additionally, it is recommended to add external protection components such as fuses and thermal sensors to ensure safe operation.
