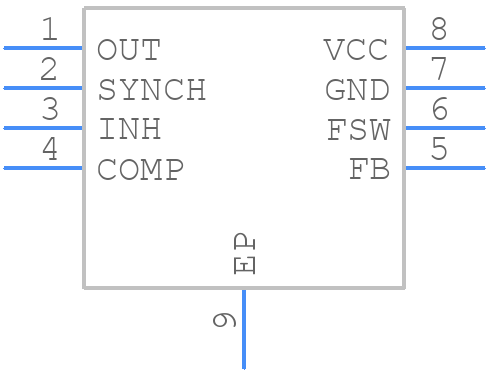

Part Symbol
-
Footprint
-

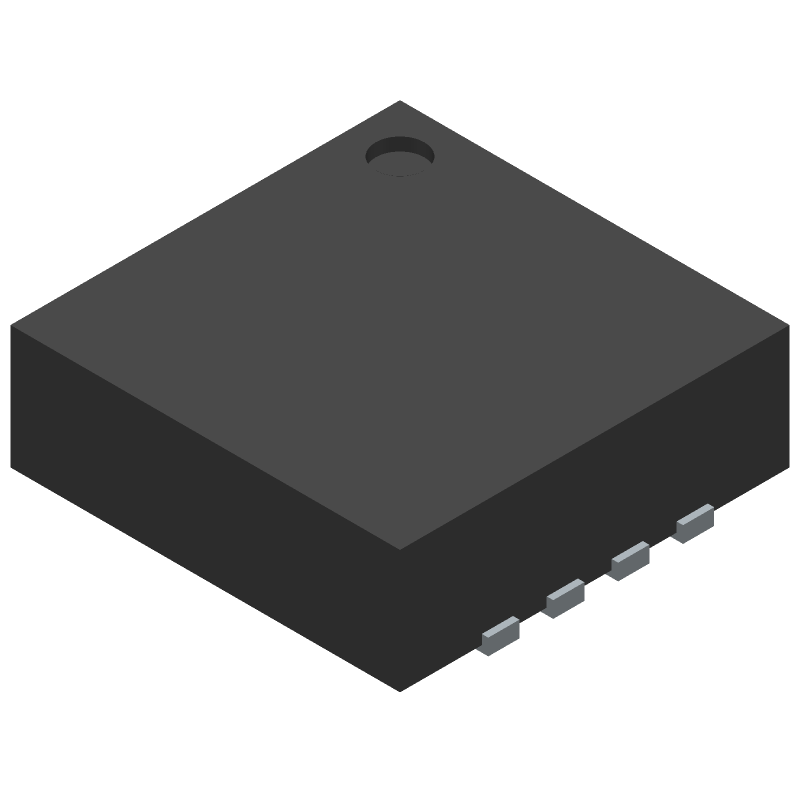

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for L5983TR by STMicroelectronics
Results Overview of L5983TR by STMicroelectronics
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
L5983TR Information
L5983TR by STMicroelectronics is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for L5983TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-L5983CT-ND
|
DigiKey | IC REG BUCK ADJ 1.5A 8VFQFPN Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3937 In Stock |
|
$1.1341 / $2.4200 | Buy Now |
|
DISTI #
L5983TR
|
Avnet Americas | DC/DC Switching Regulator, Adjustable, Buck (Step Down), Single Output, 18 V to 600 mV, 1.5 A, 250 kHz, 8 Pins, VFQFPN-EP - Tape and Reel (Alt: L5983TR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$1.0961 / $1.1485 | Buy Now |
|
DISTI #
511-L5983TR
|
Mouser Electronics | Switching Voltage Regulators 1.5a Step-Down Switching Reg RoHS: Compliant | 9975 |
|
$1.1300 / $2.4200 | Buy Now |
|
|
STMicroelectronics | 1.5 A step-down switching regulator RoHS: Compliant Min Qty: 1 | 9975 |
|
$1.3100 / $2.3700 | Buy Now |
|
DISTI #
L5983TR
|
IBS Electronics | CONV DC-DC 2.9V TO 18V STEP DOWN SINGLE-OUT 0.6V TO 18V 1.5A 8-PIN VFQFPN EP T/R Min Qty: 4000 Package Multiple: 1 | 0 |
|
$1.4690 | Buy Now |
|
DISTI #
L5983TR
|
Avnet Silica | DCDC Switching Regulator Adjustable Buck Step Down Single Output 18 V to 600 mV 15 A 250 kHz 8 Pins VFQFPNEP (Alt: L5983TR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 17 Weeks, 0 Days | Silica - 4000 |
|
Buy Now | |
|
DISTI #
L5983TR
|
EBV Elektronik | DCDC Switching Regulator Adjustable Buck Step Down Single Output 18 V to 600 mV 15 A 250 kHz 8 Pins VFQFPNEP (Alt: L5983TR) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for L5983TR
L5983TR CAD Models
L5983TR Part Data Attributes
|
|
L5983TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
L5983TR
STMicroelectronics
1.5 A step-down switching regulator
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | QFP | |
| Package Description | 3 X 3 MM, 1.08 MM HEIGHT, LEAD FREE, VFQFPN-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | VOLTAGE-MODE | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 2.9 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Output Current-Max | 1.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.11,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 1000 kHz | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
L5983TR Frequently Asked Questions (FAQ)
-
The L5983TR can handle a maximum input voltage of 30V, but it's recommended to keep it below 28V for reliable operation.
-
To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor, and add a compensation network (Rc and Cc) as described in the datasheet.
-
The L5983TR can operate with an input voltage as low as 7V, but the output voltage regulation may not be guaranteed below 8V.
-
The L5983TR is rated for operation up to 150°C, but the maximum junction temperature (Tj) should not exceed 150°C. Ensure proper thermal management and consider derating the device for high-temperature applications.
-
The output voltage (Vout) can be calculated using the formula: Vout = Vref x (1 + R1/R2), where Vref is the internal reference voltage (2.5V), and R1 and R2 are the feedback resistors.
