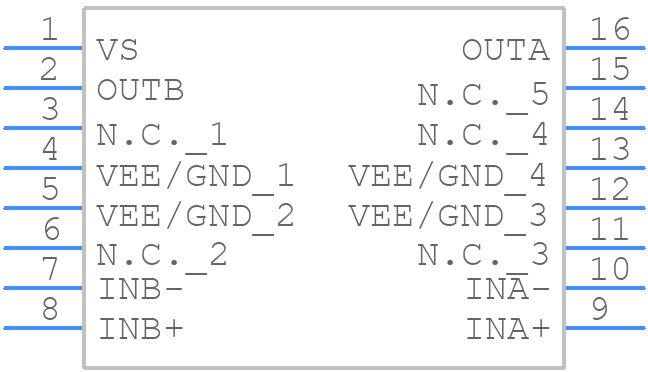

Part Symbol
-
Footprint
-

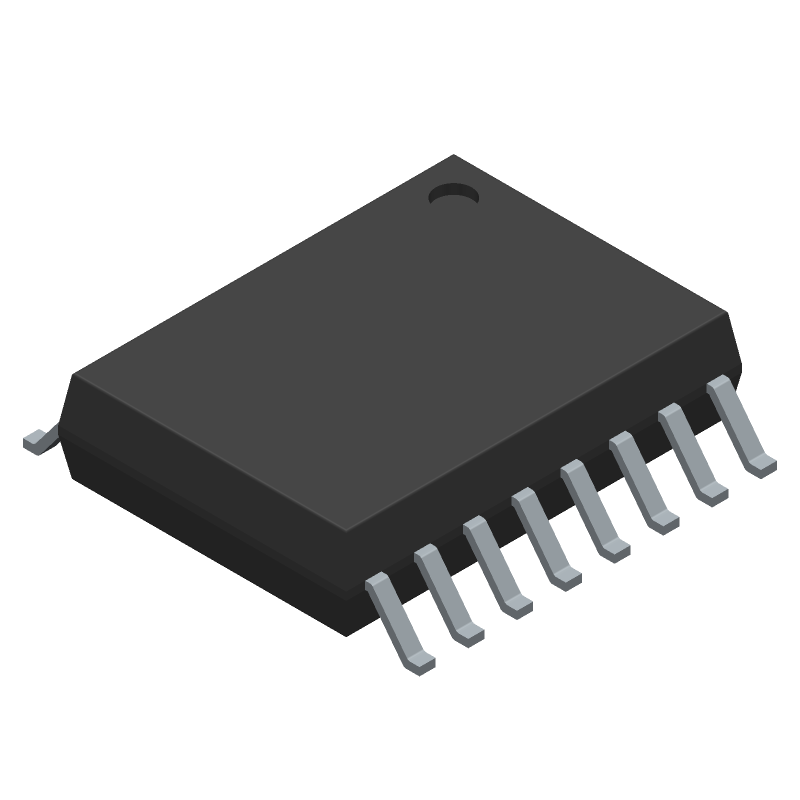

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for L2720W13TR by STMicroelectronics
Results Overview of L2720W13TR by STMicroelectronics
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
L2720W13TR Information
L2720W13TR by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for L2720W13TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
96AC0548
|
Newark | Power Operational Amplifiers Rohs Compliant: Yes |Stmicroelectronics L2720W13TR RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 2000 |
|
Buy Now | |
|
DISTI #
45AC7232
|
Newark | Op-Amp, Dual, 1.2Mhz, 2V/Us, Wsoic-16, No. Of Channels:2Channels, Gain Bandwidth Product:1.2Mhz, Supply Voltage Range:4V To 28V, ± 2V To ± 14V, Ic Case/Package:Wsoic, No. Of Pins:16Pins, Amplifier Type:General Purpose, Msl:- Rohs Compliant: Yes |Stmicroelectronics L2720W13TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1949 |
|
$1.6700 / $2.5100 | Buy Now |
|
DISTI #
497-11047-1-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 16SO Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2562 In Stock |
|
$1.0388 / $2.0900 | Buy Now |
|
DISTI #
L2720W13TR
|
Avnet Americas | OP Amp Dual GP ?14V/28V 16-Pin SO W T/R - Tape and Reel (Alt: L2720W13TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel | 2000 |
|
$0.9196 / $0.9778 | Buy Now |
|
DISTI #
511-L2720W13TR
|
Mouser Electronics | Operational Amplifiers - Op Amps Low Drop Dual 1A Op Amp SO16 RoHS: Compliant | 24882 |
|
$1.0900 / $1.5500 | Buy Now |
|
DISTI #
V72:2272_06552021
|
Arrow Electronics | Op Amp Dual Low Power Amplifier ±14V/28V 16-Pin SO W T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2221 Container: Cut Strips | Americas - 979 |
|
$0.9255 / $1.0936 | Buy Now |
|
|
STMicroelectronics | Low drop dual power operational amplifiers RoHS: Compliant Min Qty: 1 | 24751 |
|
$1.1300 / $1.5200 | Buy Now |
|
DISTI #
63383120
|
Verical | Op Amp Dual Low Power Amplifier ±14V/28V 16-Pin SO W T/R RoHS: Compliant Min Qty: 7 Package Multiple: 1 Date Code: 2221 | Americas - 979 |
|
$0.9255 / $1.0936 | Buy Now |
|
DISTI #
L2720W13TR
|
TME | IC: operational amplifier, 1.2MHz, 4÷28V, Ch: 2, SO16-W, reel,tape Min Qty: 1 | 944 |
|
$1.5400 / $2.6200 | Buy Now |
|
DISTI #
L2720W13TR
|
Avnet Silica | OP Amp Dual GP 14V28V 16Pin SO W TR (Alt: L2720W13TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 11 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for L2720W13TR
L2720W13TR CAD Models
L2720W13TR Part Data Attributes
|
|
L2720W13TR
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
L2720W13TR
STMicroelectronics
Low drop dual power operational amplifiers
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, SOP-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 1 µA | |
| Bias Current-Max (IIB) @25C | 1 µA | |
| Common-mode Reject Ratio-Nom | 84 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 10000 µV | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Slew Rate-Nom | 2 V/us | |
| Supply Current-Max | 18 mA | |
| Supply Voltage Limit-Max | 28 V | |
| Supply Voltage-Nom (Vsup) | 24 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1200 | |
| Voltage Gain-Min | 3100 | |
| Wideband | NO | |
| Width | 7.5 mm |
Alternate Parts for L2720W13TR
This table gives cross-reference parts and alternative options found for L2720W13TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of L2720W13TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| L2720W | STMicroelectronics | Check for Price | Low drop dual power operational amplifiers | L2720W13TR vs L2720W |
L2720W13TR Frequently Asked Questions (FAQ)
-
STMicroelectronics recommends a 2-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
-
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power dissipation according to the ambient temperature.
-
The SOA is typically defined by the device's voltage and current ratings. For the L2720W13TR, the SOA is limited by the maximum voltage rating (40V) and the maximum current rating (2A). Operating within these limits ensures safe and reliable operation.
-
Use a voltage regulator or a voltage limiter to prevent overvoltage. For overcurrent protection, consider using a current sense resistor and a comparator to detect excessive current. You can also use a dedicated overcurrent protection IC.
-
STMicroelectronics recommends using a TVS (transient voltage suppressor) diode or a dedicated ESD protection IC to protect the device from electrostatic discharge.
