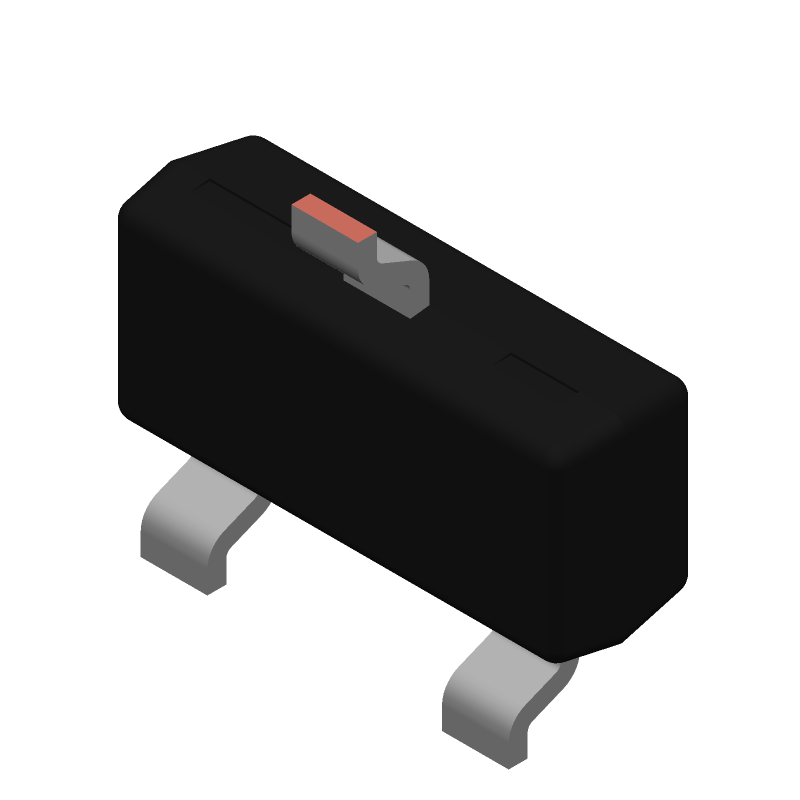

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for KTY82/210,215 by NXP Semiconductors
Results Overview of KTY82/210,215 by NXP Semiconductors
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
KTY82/210,215 Information
KTY82/210,215 by NXP Semiconductors is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for KTY82/210,215
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31AC6529
|
Newark | Temperature Sensor, 2K02, Sot-23-3, Ic Output Type:-, Sensing Accuracy Range:-, Sensing Temperature Min:-55°C, Sensing Temperature Max:150°C, Sensor Case Style:Sot-23, No. Of Pins:3Pins, Supply Voltage Min:-, Supply Voltage Max:-, Rohs Compliant: Yes |Nxp KTY82/210,215 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
70R5536
|
Newark | Silicon Temperature Sensors/ Reel Rohs Compliant: Yes |Nxp KTY82/210,215 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.5470 / $0.7100 | Buy Now |
|
DISTI #
KTY82-210
|
TME | IC: temperature sensor, -55÷150°C, SOT23, SMD, 1.98kΩ Min Qty: 1 | 29191 |
|
$0.7700 / $1.4400 | Buy Now |
|
DISTI #
KTY82/210,215
|
Avnet Silica | Temperature Sensors 3Pin SOT23 TR (Alt: KTY82/210,215) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Silica - 0 |
|
Buy Now | |
|
DISTI #
KTY82/210,215
|
EBV Elektronik | Temperature Sensors 3Pin SOT23 TR (Alt: KTY82/210,215) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Sensors & Transducers | 8733 |
|
RFQ |
Part Details for KTY82/210,215
KTY82/210,215 CAD Models
KTY82/210,215 Part Data Attributes
|
|
KTY82/210,215
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
KTY82/210,215
NXP Semiconductors
KTY82_SER - Silicon temperature sensors TO-236 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | TO-236 | |
| Package Description | SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT23 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00 | |
| Samacsys Manufacturer | NXP | |
| Body Breadth | 1.3 mm | |
| Body Height | 1 mm | |
| Body Length or Diameter | 2.9 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 3 | |
| Operating Current-Max | 10 mA | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Equivalence Code | TO-236 | |
| Package Shape/Style | RECTANGULAR | |
| R0-Nom | 1630 Ω | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Termination Type | SOLDER |
KTY82/210,215 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for KTY82/210,215 is -40°C to 150°C.
-
To handle thermal lag, use a thermocouple or a thermistor in close proximity to the KTY82/210,215 to measure the temperature, and use the measured temperature to correct for thermal lag.
-
The maximum power rating for the KTY82/210,215 is 100 mW.
-
To ensure accurate temperature measurement, ensure good thermal contact between the KTY82/210,215 and the object being measured, and minimize thermal gradients and air gaps.
-
Yes, the KTY82/210,215 is designed to withstand high-vibration environments, but ensure proper mounting and mechanical stress relief to prevent damage.
