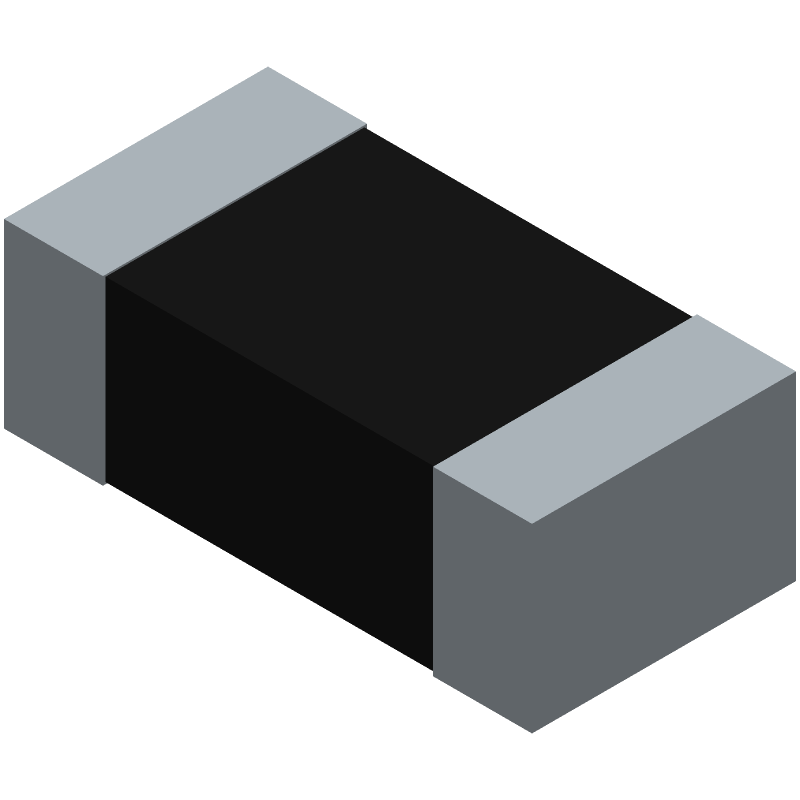

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for KTR03EZPF6804 by ROHM Semiconductor
Results Overview of KTR03EZPF6804 by ROHM Semiconductor
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
KTR03EZPF6804 Information
KTR03EZPF6804 by ROHM Semiconductor is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for KTR03EZPF6804
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
43AC0060
|
Newark | Res, 6M8, 1%, 0603, Thick Film, Resistor Case Style:0603 [1608 Metric], Resistance:6.8Mohm, Product Range:Ktr Series, Voltage Rating:350V, Resistor Element Material:Thick Film, Power Rating:100Mw, Resistance Tolerance:± 1%, Rohs Compliant: Yes |Rohm KTR03EZPF6804 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.0290 / $0.0800 | Buy Now |
|
DISTI #
RHM6.8MAYCT-ND
|
DigiKey | RES SMD 6.8M OHM 1% 1/10W 0603 Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
253 In Stock |
|
$0.0171 / $0.1600 | Buy Now |
|
DISTI #
755-KTR03EZPF6804
|
Mouser Electronics | Thick Film Resistors - SMD 0603 6.8MOhm 1% High VoltageAEC-Q200 RoHS: Compliant | 2168 |
|
$0.0170 / $0.1600 | Buy Now |
|
DISTI #
77265103
|
Verical | Res Thick Film 0603 6.8M Ohm 1% 0.1W(1/10W) ±100ppm/°C Pad SMD Automotive T/R Min Qty: 3379 Package Multiple: 1 Date Code: 2348 | Americas - 8810 |
|
$0.0426 / $0.0758 | Buy Now |
|
DISTI #
79017217
|
Verical | Res Thick Film 0603 6.8M Ohm 1% 0.1W(1/10W) ±100ppm/°C Pad SMD Automotive T/R Min Qty: 4546 Package Multiple: 1 Date Code: 2401 | Americas - 5000 |
|
$0.0152 / $0.0156 | Buy Now |
|
|
Quest Components | 4000 |
|
$0.0300 / $0.1500 | Buy Now |
Part Details for KTR03EZPF6804
KTR03EZPF6804 CAD Models
KTR03EZPF6804 Part Data Attributes
|
|
KTR03EZPF6804
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
KTR03EZPF6804
ROHM Semiconductor
Fixed Resistor, Metal Glaze/thick Film, 0.1W, 6800000ohm, 350V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.45 mm | |
| Package Length | 1.6 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 0.8 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 6800000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 350 V |
KTR03EZPF6804 Frequently Asked Questions (FAQ)
-
ROHM recommends a thermal pad size of at least 2.5mm x 2.5mm, with multiple vias to the ground plane to ensure efficient heat dissipation. A minimum of 4-layer PCB with a solid ground plane is also recommended.
-
To ensure reliability, operate the device within the recommended temperature range (TJ = -40°C to 150°C). Implement proper thermal management, such as heat sinks or thermal interfaces, and follow ROHM's recommended PCB design guidelines.
-
The maximum allowed voltage for the KTR03EZPF6804 is 6.5V. Exceeding this voltage may cause permanent damage to the device.
-
While the KTR03EZPF6804 is designed for high-speed switching, its frequency response is limited to around 100kHz. For higher frequency applications, consider using a different device or consulting with ROHM's application engineers.
-
To prevent latch-up or damage, ensure that the power supply voltage (VCC) is applied before the input signal (VIN). Also, ensure that the input signal is within the recommended voltage range during power-up and power-down sequences.
