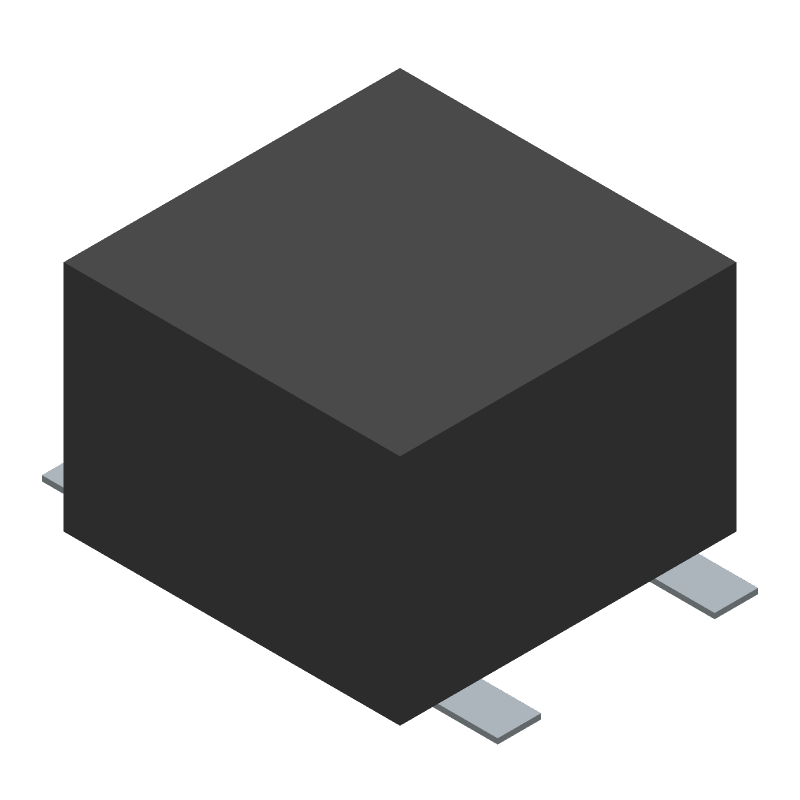

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for KSC701JLFS by C&K
Results Overview of KSC701JLFS by C&K
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
KSC701JLFS Information
KSC701JLFS by C&K is a Special Switch.
Special Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for KSC701JLFS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
KSC701JLFS
|
TTI | Tactile Switches 1A 32VDC 4.3mm 1.6N J bend, IP67 RoHS: Compliant Min Qty: 10000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.2890 / $0.3010 | Buy Now |
|
DISTI #
KSC701JLFS
|
TME | Microswitch TACT, SPST-NO, Pos: 2, 0.05A/32VDC, SMT, none, 4.3mm Min Qty: 2 | 0 |
|
$0.3740 / $0.5180 | RFQ |
|
DISTI #
000000000005592783
|
Sager | Tactile Switches 1A 32VDC 4.3mm 1.6N J bend, IP67 Min Qty: 1000 | 0 |
|
$0.3600 | Buy Now |
|
DISTI #
SMC-KSC701JLFS
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 932 |
|
RFQ |
Part Details for KSC701JLFS
KSC701JLFS CAD Models
KSC701JLFS Part Data Attributes
|
|
KSC701JLFS
C&K
Buy Now
Datasheet
|
Compare Parts:
KSC701JLFS
C&K
PUSHBUTTON SWITCH,STRAIGHT,SPST,SURFACE MOUNT TERMINAL
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | C & K COMPONENTS LLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | C & K COMPONENTS | |
| Actuator Angle | ||
| Actuator Length | 0.055 inch | |
| Actuator Travel | 0.3048 mm | |
| Actuator Type | PUSHBUTTON | |
| Center Contact Material | SILVER | |
| Center Contact Plating | SILVER | |
| Contact Current(DC)-Max | 0.05 A | |
| Contact (DC) Max Power Rating R Load | 1VA@32VDC | |
| Contact (DC) Max Rating R Load | 0.05A@32VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(DC)-Max | 32 V | |
| Dielectric Withstand Volts | 250VRMS V | |
| Electrical Life | 5000000 Cycle(s) | |
| End Contact Material | SILVER | |
| End Contact Plating | SILVER | |
| Insulation Resistance | 10000000 Ω | |
| Mounting Feature | SURFACE MOUNT-STRAIGHT | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Terminal Finish | SILVER/NICKEL | |
| Terminal Material | SILVER | |
| Termination Type | SOLDER |
Alternate Parts for KSC701JLFS
This table gives cross-reference parts and alternative options found for KSC701JLFS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of KSC701JLFS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| KSC701GLFS | C&K | Check for Price | PUSHBUTTON SWITCH,STRAIGHT,SPST,SURFACE MOUNT TERMINAL | KSC701JLFS vs KSC701GLFS |
