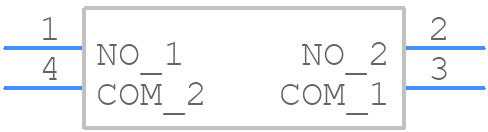

Part Symbol
-

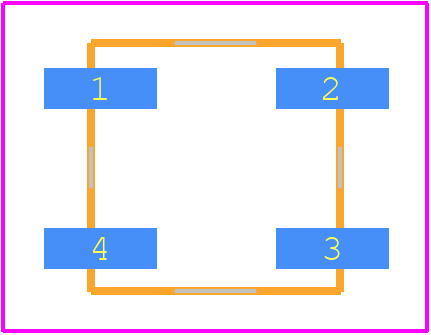

Footprint
-

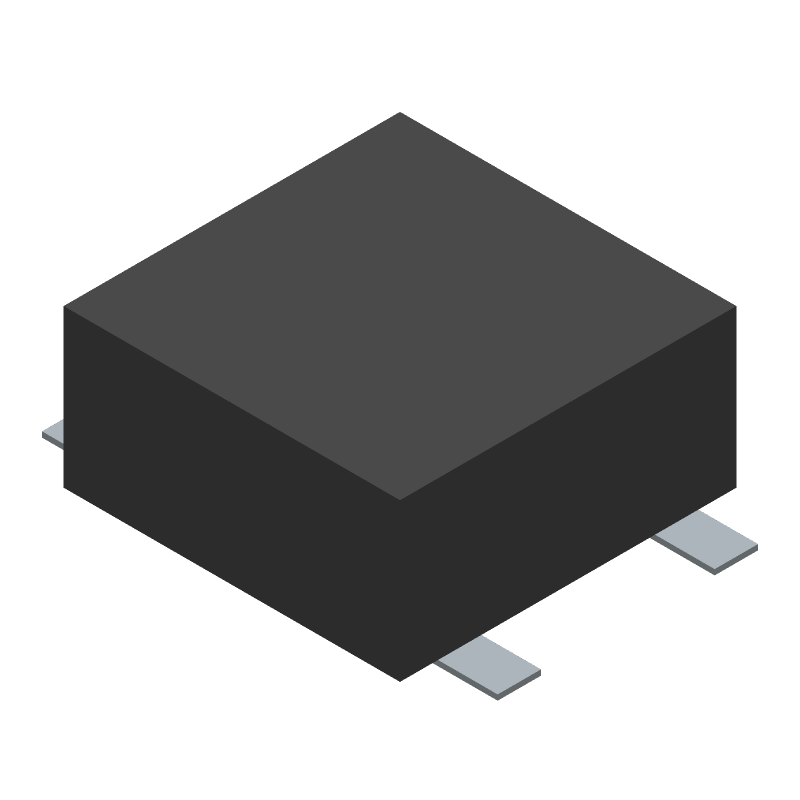

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for KSC151JLFS by C&K
Results Overview of KSC151JLFS by C&K
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
KSC151JLFS Information
KSC151JLFS by C&K is a Keypad Switch.
Keypad Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for KSC151JLFS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
KSC151JLFS
|
TME | Microswitch TACT, SPST, Pos: 2, 0.05A/32VDC, SMD, 5.5N, OFF-(ON) Min Qty: 10000 | 0 |
|
$0.2670 | RFQ |
|
DISTI #
KSC151JLFS
|
IBS Electronics | SWITCH TACTILE N.O. SPST ROUND BUTTON J-BEND 0.05A 32VDC 1W 100000CYCLE 5.5N SMD T/R Min Qty: 2000 Package Multiple: 1 | 14000 |
|
$0.2425 / $0.2575 | Buy Now |
|
DISTI #
000000000002430211
|
Sager | Tactile Switches Silvr 550Gf J-Lead Min Qty: 10000 | 0 |
|
$0.2587 | Buy Now |
Part Details for KSC151JLFS
KSC151JLFS CAD Models
KSC151JLFS Part Data Attributes
|
|
KSC151JLFS
C&K
Buy Now
Datasheet
|
Compare Parts:
KSC151JLFS
C&K
KEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.05A, 32VDC, 6.9N, SURFACE MOUNT-STRAIGHT, LEAD FREE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | C & K COMPONENTS LLC | |
| Package Description | LEAD FREE | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.40 | |
| Samacsys Manufacturer | C & K COMPONENTS | |
| Actuator Travel | 0.35 mm | |
| Body Breadth | 6.2 mm | |
| Body Height | 2.9 mm | |
| Body Length or Diameter | 6.2 mm | |
| Center Contact Material | SILVER | |
| Center Contact Plating | SILVER | |
| Circuit Configuration | 1X1 | |
| Contact Bounce Time-Max | 1 ms | |
| Contact Current(DC)-Max | 0.05 A | |
| Contact (DC) Max Power Rating R Load | 1VA@32VDC | |
| Contact (DC) Max Rating R Load | .05A@32VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(DC)-Max | 32 V | |
| Dielectric Withstand Volts | 250VRMS V | |
| Electrical Life | 100000 Cycle(s) | |
| End Contact Material | SILVER | |
| End Contact Plating | SILVER | |
| Insulation Resistance | 10000000 Ω | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT-STRAIGHT | |
| Number of Switches | 1 | |
| Operating Force-Max | 6.9 N | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | TR, 13 INCH | |
| Sealing | IP67 | |
| Solderability | REFLOW | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | KEYPAD SWITCH | |
| Terminal Finish | SILVER | |
| Terminal Material | SILVER | |
| Termination Type | SOLDER |
Alternate Parts for KSC151JLFS
This table gives cross-reference parts and alternative options found for KSC151JLFS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of KSC151JLFS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| KSC151JLFS | ITT Interconnect Solutions | Check for Price | Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 32VDC, 5.5N, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT | KSC151JLFS vs KSC151JLFS |
KSC151JLFS Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the KSC151JLFS is between 230°C to 250°C for a maximum of 3 seconds.
-
Yes, the KSC151JLFS is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.
-
The KSC151JLFS is designed for low-frequency switching applications and is not intended for high-frequency use. The maximum operating frequency is approximately 10 Hz.
-
The KSC151JLFS is designed for indoor use and is not intended for outdoor or harsh environmental conditions. However, it can be used in outdoor applications with proper sealing and protection.
-
The KSC151JLFS can be cleaned with a soft brush and mild soap solution. Avoid using harsh chemicals or abrasive materials that may damage the switch.
