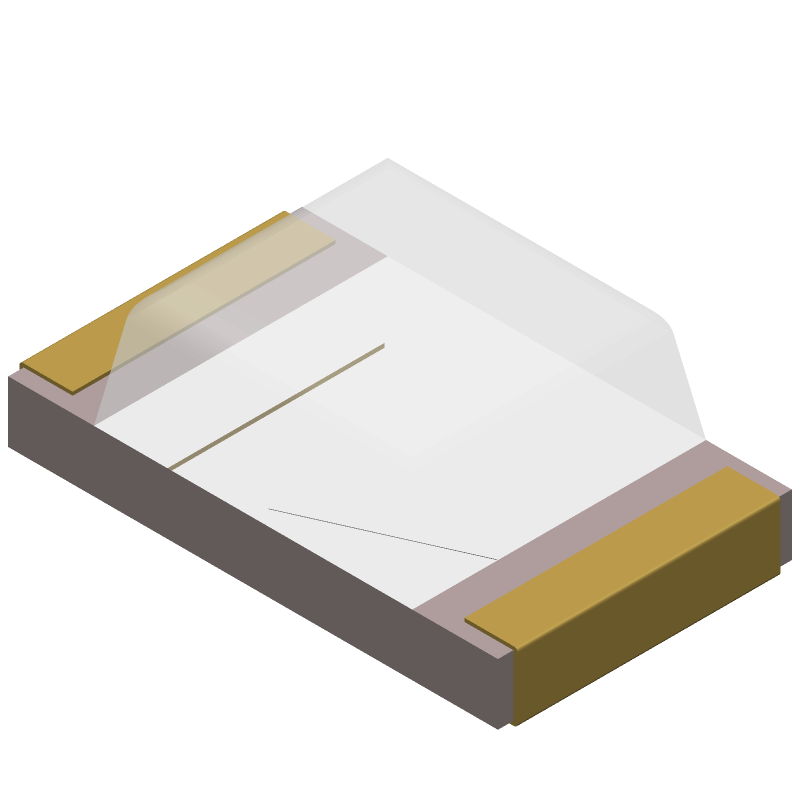

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for KPT-2012LVSECK-J4-PRV by Kingbright
Results Overview of KPT-2012LVSECK-J4-PRV by Kingbright
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Environmental Monitoring
Industrial Automation
KPT-2012LVSECK-J4-PRV Information
KPT-2012LVSECK-J4-PRV by Kingbright is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for KPT-2012LVSECK-J4-PRV
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2610417
|
Farnell | RoHS: Compliant Min Qty: 5 Container: Cut Tape | 400 |
|
$0.2528 / $0.3738 | Buy Now |
|
DISTI #
2610417RL
|
Farnell | RoHS: Compliant Min Qty: 100 Container: Reel | 400 |
|
$0.2528 / $0.2887 | Buy Now |
|
DISTI #
KPT-2012LVSECK-J4-PRV
|
Avnet Abacus | LED Single Chip Orange 605nm 30mA 2Pin SMD TR (Alt: KPT-2012LVSECK-J4-PRV) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 17 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for KPT-2012LVSECK-J4-PRV
KPT-2012LVSECK-J4-PRV CAD Models
KPT-2012LVSECK-J4-PRV Part Data Attributes
|
|
KPT-2012LVSECK-J4-PRV
Kingbright
Buy Now
Datasheet
|
Compare Parts:
KPT-2012LVSECK-J4-PRV
Kingbright
Single Color LED, Super Bright Orange, Water Clear, 1.3mm,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KINGBRIGHT ELECTRONIC CO LTD | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Kingbright | |
| Color | SUPER BRIGHT ORANGE | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.03 A | |
| Lens Type | WATER CLEAR | |
| Luminous Intensity-Nom | 150.0 mcd | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 0.75 mm | |
| Packing Method | TR, 7 INCH | |
| Peak Wavelength | 611 nm | |
| Shape | RECTANGULAR | |
| Size | 1.3 mm | |
| Surface Mount | YES | |
| Terminal Pitch | 2.35 mm | |
| Viewing Angle | 140 deg |
KPT-2012LVSECK-J4-PRV Frequently Asked Questions (FAQ)
-
The recommended storage temperature for KPT-2012LVSECK-J4-PRV is -20°C to 60°C, with a relative humidity of 60% or less.
-
While KPT-2012LVSECK-J4-PRV is suitable for indoor use, it's not recommended for outdoor applications due to its limited environmental rating. If you need an outdoor-rated LED, consider a different model with a higher IP rating.
-
The maximum soldering temperature for KPT-2012LVSECK-J4-PRV is 260°C for 3 seconds. Exceeding this temperature may damage the LED.
-
Yes, KPT-2012LVSECK-J4-PRV is compatible with lead-free soldering. However, it's essential to follow the recommended soldering profile to avoid damaging the LED.
-
The typical lifespan of KPT-2012LVSECK-J4-PRV is around 50,000 hours, depending on operating conditions, such as temperature, current, and humidity.
