KHAU-11D12-12 Information
KHAU-11D12-12 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for KHAU-11D12-12
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
18M9119
|
Newark | Relay, Dpdt, 120Vac, 28Vdc, 5A, Contact Configuration:Dpdt, Coil Voltage:12Vdc, Contact Current:5A, Product Range:Kha Series, Relay Mounting:Socket, Coil Type:Non Latching, Contact Voltage Vac:120Vac, Contact Voltage Vdc:28Vdc Rohs Compliant: Yes |Potter&brumfield Te Connectivity KHAU-11D12-12 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 247 |
|
$15.4200 / $21.3300 | Buy Now |
|
DISTI #
48M7114
|
Newark | Khau-11D12-12=Kh |Potter&brumfield Te Connectivity KHAU-11D12-12 RoHS: Not Compliant Min Qty: 125 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$10.8700 | Buy Now |
|
DISTI #
PB455-ND
|
DigiKey | RELAY GEN PURPOSE DPDT 5A 12V Min Qty: 1 Lead time: 19 Weeks Container: Bulk |
1925 In Stock |
|
$10.9787 / $15.0100 | Buy Now |
|
DISTI #
18M9119
|
Avnet Americas | Electromechanical Relay DPDT 5A 12VDC 160Ohm Socket - Bulk (Alt: 18M9119) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 4 Days Container: Bulk | 247 Partner Stock |
|
$13.2300 / $16.8100 | Buy Now |
|
DISTI #
1-1393122-6
|
Avnet Americas | Electromechanical Relay DPDT 5A 12VDC 160Ohm Socket - Trays (Alt: 1-1393122-6) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 111 Weeks, 0 Days Container: Tray | 0 |
|
$8.6580 / $10.4500 | Buy Now |
|
DISTI #
655-KHAU-11D12-12
|
Mouser Electronics | General Purpose Relays DPDT SCKT MT 12VDC RoHS: Compliant | 303 |
|
$12.2400 / $18.9900 | Buy Now |
|
DISTI #
V99:2348_11623484
|
Arrow Electronics | Power Relay 12VDC 5A DPDT(28.2mm 21.8mm 32.5mm) Socket RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2317 | Americas - 213 |
|
$9.8030 / $11.2920 | Buy Now |
|
|
TE Connectivity | KHAU-11D12-12=KH Part Number: KHAU-11D12-12 | Internal Number: 1-1393122-6 | TE Connectivity RoHS: Compliant Min Qty: 1 | 1925 |
|
$35.5200 / $42.2900 | Buy Now |
|
|
Onlinecomponents.com | Power Relay 12VDC 5A DPDT(28.2x21.8x32.5)mm Socket RoHS: Compliant |
3974 Partner Stock |
|
$9.2500 / $11.8400 | Buy Now |
|
DISTI #
65679251
|
Verical | Power Relay 12VDC 5A DPDT(28.2mm 21.8mm 32.5mm) Socket RoHS: Compliant Min Qty: 5 Package Multiple: 1 | Americas - 2649 |
|
$9.8100 / $12.8500 | Buy Now |
Part Details for KHAU-11D12-12

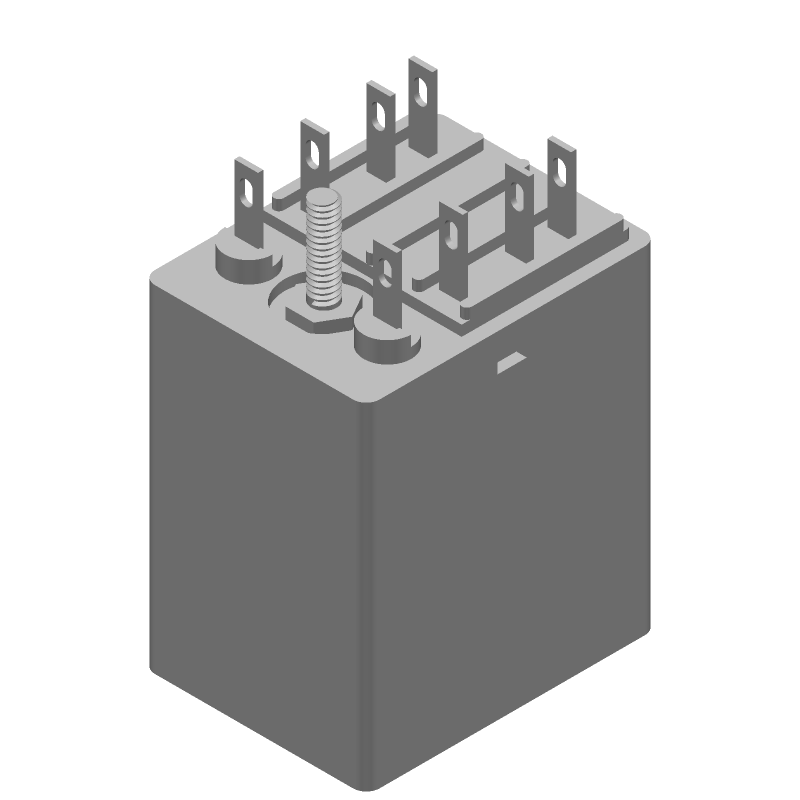

KHAU-11D12-12 CAD Models
KHAU-11D12-12 Part Data Attributes
|
|
KHAU-11D12-12
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
KHAU-11D12-12
TE Connectivity
POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.075A (COIL), 12VDC (COIL), 900mW (COIL), 5A (CONTACT), SOCKET MOUNT, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 16 Weeks, 4 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Body Breadth | 21.8 mm | |
| Body Height | 32.5 mm | |
| Body Length or Diameter | 28.2 mm | |
| Coil Current(DC)-Max | 0.075 A | |
| Coil Operate Voltage(DC) | 9 V | |
| Coil Power | 900 mW | |
| Coil Resistance | 160 Ω | |
| Coil Voltage(DC)-Max | 12 V | |
| Coil Voltage-Nom | 12 V | |
| Coil/Input Supply Type | DC | |
| Contact Current(AC)-Max | 5 A | |
| Contact Current(DC)-Max | 5 A | |
| Contact Resistance | 100 mΩ | |
| Contact Voltage(AC)-Max | 240 V | |
| Dielectric Strength Between Coil and Contacts | 1500 Vrms | |
| Dielectric Strength Between Open Contacts | 1000 Vrms | |
| End Contact Material | SILVER CADMIUM OXIDE | |
| Input Switching Control Type | Random | |
| Insulation Resistance | 100000000 Ω | |
| Mounting Feature | PANEL MOUNT | |
| Number of Terminals | 8 | |
| Operate Time | 13 ms | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -45 °C | |
| Packing Method | TRAY | |
| Physical Dimension | 28.2mm x 21.8mm x 34.9mm | |
| Reference Standard | CSA; UL | |
| Relay Action | MOMENTARY | |
| Relay Form | 2 FORM C | |
| Relay Function | DPDT | |
| Relay Type | POWER/SIGNAL RELAY | |
| Release Time | 6 ms | |
| Sealing | DUST PROOF | |
| Surface Mount | NO | |
| Terminal Length | 0.008001016002032004 inch | |
| Termination Type | SOLDER/QUICK CONNECT | |
| Weight | 45 g |
