Capacitors / Fixed Capacitors / KGM05AR70J105KH
Datasheets
KGM05AR70J105KH by:

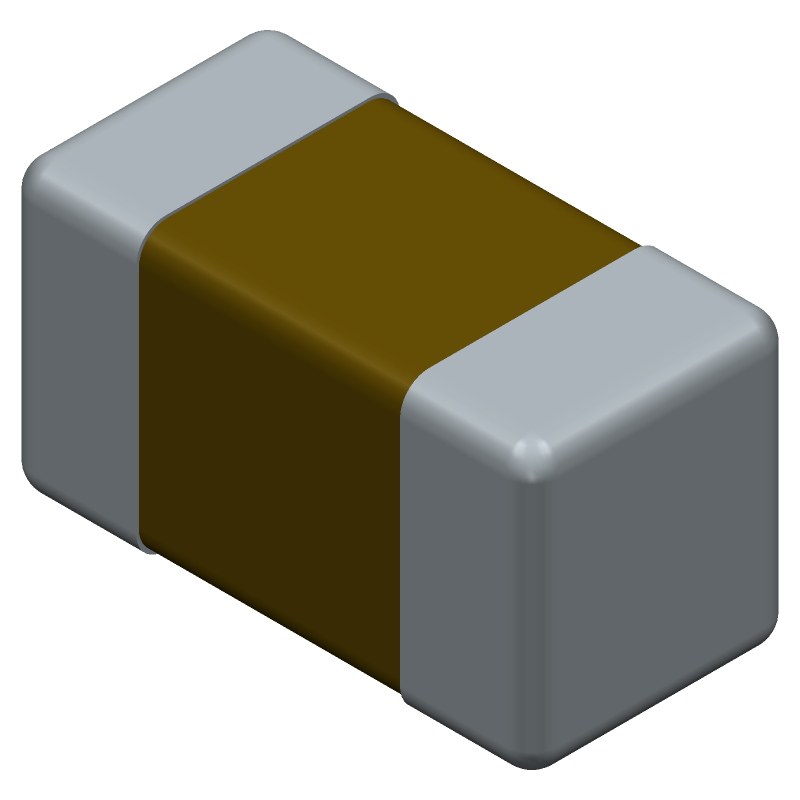

Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0402, CHIP

Part Details for KGM05AR70J105KH by Kyocera AVX Components

Results Overview of KGM05AR70J105KH by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research

KGM05AR70J105KH Information

KGM05AR70J105KH by Kyocera AVX Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for KGM05AR70J105KH

Part # Distributor Description Stock Price Buy
DISTI # KGM05AR70J105KH
Avnet Americas SMD Multilayer Ceramic Capacitor, 1 ?F, 6.3 V, 0402 [1005 Metric], ? 10%, X7R - Tape and Reel (Alt: KGM05AR70J105KH) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days Container: Reel 200000
1150000 Factory Stock
  • 10,000 $0.0265
  • 20,000 $0.0263
  • 40,000 $0.0262
  • 60,000 $0.0261
  • 80,000 $0.0259
$0.0259 / $0.0265 Buy Now
DISTI # 581-KGM05AR70J105KH
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT 6.3V 1uF X7R 0402 10 % RoHS: Compliant 29754
  • 1 $0.5400
  • 10 $0.3490
  • 100 $0.2460
  • 500 $0.2000
  • 1,000 $0.1850
  • 2,500 $0.1720
  • 10,000 $0.1240
  • 20,000 $0.1230
  • 50,000 $0.1170
$0.1170 / $0.5400 Buy Now
DISTI # E02:0323_03261585
Arrow Electronics Cap Ceramic 1uF 6.3V X7R 10% Pad SMD 0402 125°C T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 18 Weeks Date Code: 2423 Europe - 470000
  • 10,000 $0.0848
  • 20,000 $0.0836
  • 30,000 $0.0825
  • 40,000 $0.0817
  • 50,000 $0.0778
  • 100,000 $0.0770
$0.0770 / $0.0848 Buy Now
DISTI # V36:1790_28697347
Arrow Electronics Cap Ceramic 1uF 6.3V X7R 10% Pad SMD 0402 125°C T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks Date Code: 2441 Americas - 20000
  • 10,000 $0.1148
  • 20,000 $0.1131
  • 30,000 $0.1118
  • 40,000 $0.1106
  • 50,000 $0.1053
  • 100,000 $0.1042
$0.1042 / $0.1148 Buy Now
Future Electronics CAP CER 1UF 6.3V X7R 0402 RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks Container: Reel 10000
Reel
  • 10,000 $0.1030
$0.1030 Buy Now
DISTI # 04026C105KAT2A
TTI Multilayer Ceramic Capacitors MLCC - SMD/SMT KGM05AR70J105KH NEW GLOBAL PN 6.3V 1uF X A 581-KGM05AR70J105KH RoHS: Compliant pbFree: Pb-Free Min Qty: 10000 Package Multiple: 10000 Container: Reel Americas - 700000
In Stock
  • 10,000 $0.1100
  • 30,000 $0.1030
$0.1030 / $0.1100 Buy Now
Future Electronics CAP CER 1UF 6.3V X7R 0402 Min Qty: 10000 Package Multiple: 10000 10000
null
  • 10,000 $0.1030
$0.1030 Buy Now
Future Electronics CAP CER 1UF 6.3V X7R 0402 Min Qty: 10000 Package Multiple: 10000 40000
null
  • 10,000 $0.0133
  • 30,000 $0.0130
  • 50,000 $0.0129
  • 150,000 $0.0126
  • 250,000 $0.0123
$0.0123 / $0.0133 Buy Now
DISTI # KGM05AR70J105KH
TME Capacitor: ceramic, MLCC, 1uF, 6.3V, X7R, ±10%, SMD, 0402, 180mm Min Qty: 1 0
  • 1 $0.4727
  • 10 $0.0567
  • 100 $0.0461
  • 1,000 $0.0366
  • 2,500 $0.0330
  • 10,000 $0.0279
  • 20,000 $0.0254
  • 30,000 $0.0240
  • 40,000 $0.0230
  • 50,000 $0.0222
$0.0222 / $0.4727 RFQ
DISTI # KGM05AR70J105KH
Avnet Abacus SMD Multilayer Ceramic Capacitor 1 F 63 V 0402 1005 Metric 10 X7R - Tape and Reel (Alt: KGM05AR70J105KH) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks, 0 Days Container: Reel Abacus - 150000
Buy Now

Part Details for KGM05AR70J105KH

KGM05AR70J105KH CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

KGM05AR70J105KH Part Data Attributes

Parametric Data
KGM05AR70J105KH Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
KGM05AR70J105KH Kyocera AVX Components Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0402, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Samacsys Manufacturer Kyocera AVX
Capacitance 1 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.55 mm
JESD-609 Code e3
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 6.3 V
Size Code 0402
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 0.5 mm

Alternate Parts for KGM05AR70J105KH

This table gives cross-reference parts and alternative options found for KGM05AR70J105KH. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of KGM05AR70J105KH, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
04026C105KAT2A Kyocera AVX Components $0.0653 Capacitor, Ceramic, Chip, General Purpose, 1uF, 6.3V, ±10%, X7R, 0402 (1005 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel KGM05AR70J105KH vs 04026C105KAT2A
C0402X7R6R3-105KPP VENKEL LTD Check for Price Ceramic Capacitor, Ceramic, KGM05AR70J105KH vs C0402X7R6R3-105KPP
C0402X7R6R3-105KGD VENKEL LTD Check for Price Ceramic Capacitor, Ceramic, KGM05AR70J105KH vs C0402X7R6R3-105KGD
04026C105KAZ2A Kyocera AVX Components Check for Price Ceramic Capacitor, Ceramic, KGM05AR70J105KH vs 04026C105KAZ2A
C0402X7R6R3-105KPBR VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0402, KGM05AR70J105KH vs C0402X7R6R3-105KPBR
C0402X7R6R3-105KGE VENKEL LTD Check for Price Ceramic Capacitor, Ceramic, KGM05AR70J105KH vs C0402X7R6R3-105KGE
CL05B105KQ5NQNH Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 1uF, 0402, KGM05AR70J105KH vs CL05B105KQ5NQNH
C0402X7R6R3-105KNP VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0402, CHIP KGM05AR70J105KH vs C0402X7R6R3-105KNP
04026C105KA72A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 0402, KGM05AR70J105KH vs 04026C105KA72A
CL05B105KQ5NQNO Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 1uF, 0402, KGM05AR70J105KH vs CL05B105KQ5NQNO

KGM05AR70J105KH Frequently Asked Questions (FAQ)

  • The recommended land pattern for KGM05AR70J105KH can be found in the Kyocera AVX Components' recommended land pattern document, which is typically available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.

  • To prevent damage during assembly, it is recommended to handle the KGM05AR70J105KH component by the edges, avoiding touching the terminations or the ceramic body. Use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge damage. Additionally, follow the manufacturer's recommended assembly and soldering procedures.

  • The maximum allowable voltage derating for KGM05AR70J105KH depends on the specific application and operating conditions. As a general rule, it is recommended to derate the voltage by 10-20% to ensure reliable operation and prevent premature failure. However, it is best to consult with the manufacturer or a qualified engineer to determine the appropriate derating for a specific application.

  • The KGM05AR70J105KH is rated for operation up to 125°C, but it is essential to consider the specific operating conditions and the component's thermal characteristics when using it in a high-temperature environment. Ensure that the component is properly cooled, and the operating temperature is within the specified range to prevent thermal stress and premature failure.

  • The equivalent series resistance (ESR) of KGM05AR70J105KH can be determined by measuring the impedance of the component at high frequencies (e.g., 100 kHz) using an impedance analyzer or a network analyzer. The ESR can also be calculated using the component's capacitance and the manufacturer's specified ESR values. Consult the datasheet or contact the manufacturer for more information.
