Capacitors / Fixed Capacitors / KGF55DR72J105KV
Datasheets

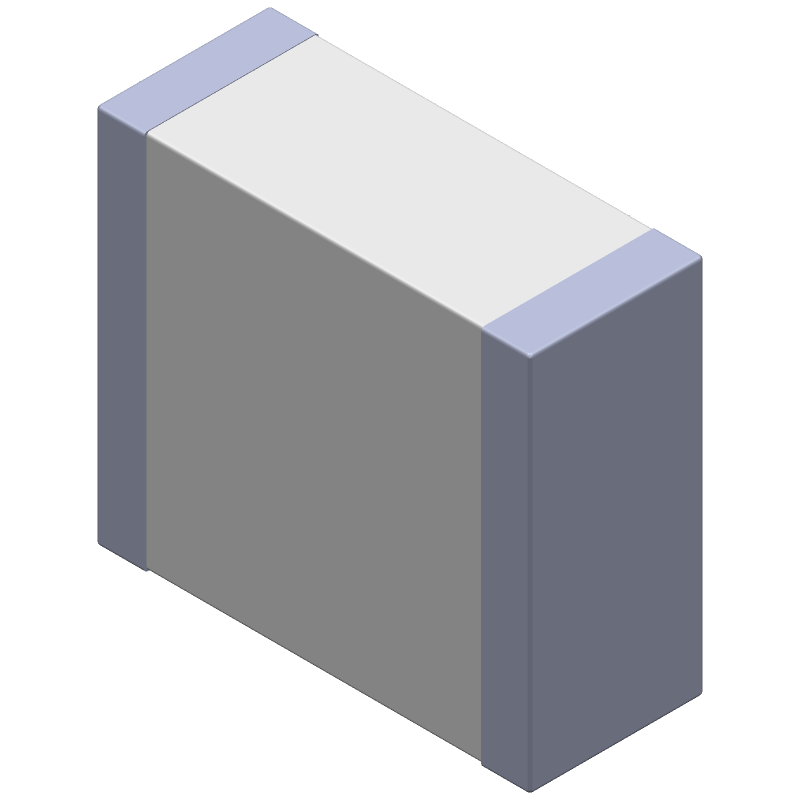

KGF55DR72J105KV by: Kyocera AVX Components

Ceramic Capacitor, Multilayer, Ceramic, 630V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 2220, CHIP

Part Details for KGF55DR72J105KV by Kyocera AVX Components

Results Overview of KGF55DR72J105KV by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

KGF55DR72J105KV Information

KGF55DR72J105KV by Kyocera AVX Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for KGF55DR72J105KV

Part # Distributor Description Stock Price Buy
DISTI # KGF55DR72J105KV
Avnet Americas SMD Multilayer Ceramic Capacitor, 1 ?F, 630 V, 2220 [5750 Metric], ? 10%, X7R - Tape and Reel (Alt: KGF55DR72J105KV) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks, 0 Days Container: Reel 500
  • 500 $1.1799
  • 1,000 $1.1650
  • 2,000 $1.1500
  • 3,000 $1.1299
  • 4,000 $1.1150
$1.1150 / $1.1799 Buy Now
DISTI # 581-KGF55DR72J105KV
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT 1.0UF 630V 10% 2220 RoHS: Compliant 1112
  • 1 $3.3400
  • 10 $2.4800
  • 50 $2.2800
  • 100 $1.9000
  • 500 $1.6100
  • 1,000 $1.5600
  • 2,500 $1.5300
$1.5300 / $3.3400 Buy Now
Future Electronics Multilayer Ceramic Capacitors 630V 1uF X7R 10% 2220 RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks Container: Reel 500
Reel
  • 500 $1.2400
  • 1,000 $1.2300
  • 1,500 $1.2200
$1.2200 / $1.2400 Buy Now
DISTI # 2220CC105KAZ2A
TTI Multilayer Ceramic Capacitors MLCC - SMD/SMT KGF55DR72J105KV NW G LOB PN 630V 1uF X7R A 581-KGF55DR72J105KV RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel Americas - 431500
In Stock
  • 500 $1.6000
  • 1,000 $1.5600
  • 2,500 $1.5300
$1.5300 / $1.6000 Buy Now
Future Electronics Multilayer Ceramic Capacitors 630V 1uF X7R 10% 2220 Min Qty: 500 Package Multiple: 500 500
null
  • 500 $1.2400
  • 1,000 $1.2300
  • 1,500 $1.2200
$1.2200 / $1.2400 Buy Now
DISTI # KGF55DR72J105KV
Avnet Abacus SMD Multilayer Ceramic Capacitor 1 F 630 V 2220 5750 Metric 10 X7R (Alt: KGF55DR72J105KV) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 14 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for KGF55DR72J105KV

KGF55DR72J105KV Part Data Attributes

Parametric Data
KGF55DR72J105KV Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
KGF55DR72J105KV Kyocera AVX Components Ceramic Capacitor, Multilayer, Ceramic, 630V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1uF, Surface Mount, 2220, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Samacsys Manufacturer Kyocera AVX
Capacitance 1 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 3.3 mm
JESD-609 Code e3
Length 5.7 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Style SMT
Packing Method TR, EMBOSSED, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 630 V
Size Code 2220
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 5 mm

KGF55DR72J105KV Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the KGF55DR72J105KV is between 250°C to 260°C for a maximum of 3 seconds.

  • Yes, the KGF55DR72J105KV is a high-frequency capacitor with a self-resonant frequency of 10 MHz, making it suitable for high-frequency applications.

  • The maximum operating temperature range for the KGF55DR72J105KV is -55°C to +125°C.

  • Yes, the KGF55DR72J105KV is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.

  • The ESR of the KGF55DR72J105KV is 0.05 ohms maximum at 100 kHz.
