KBPC1501T Information
KBPC1501T by GeneSic Semiconductor Inc is a Bridge Rectifier Diode.
Bridge Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for KBPC1501T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
KBPC1501TGN-ND
|
DigiKey | BRIDGE RECT 1PHASE 100V 15A KBPC Min Qty: 2000 Lead time: 5 Weeks Container: Bulk | Temporarily Out of Stock |
|
$1.8180 | Buy Now |
|
|
NAC | Silicon Bridge Rectifiers - 100V/15A RoHS: Compliant Min Qty: 50 Package Multiple: 50 | 0 |
|
$2.1400 / $2.3500 | Buy Now |
Part Details for KBPC1501T

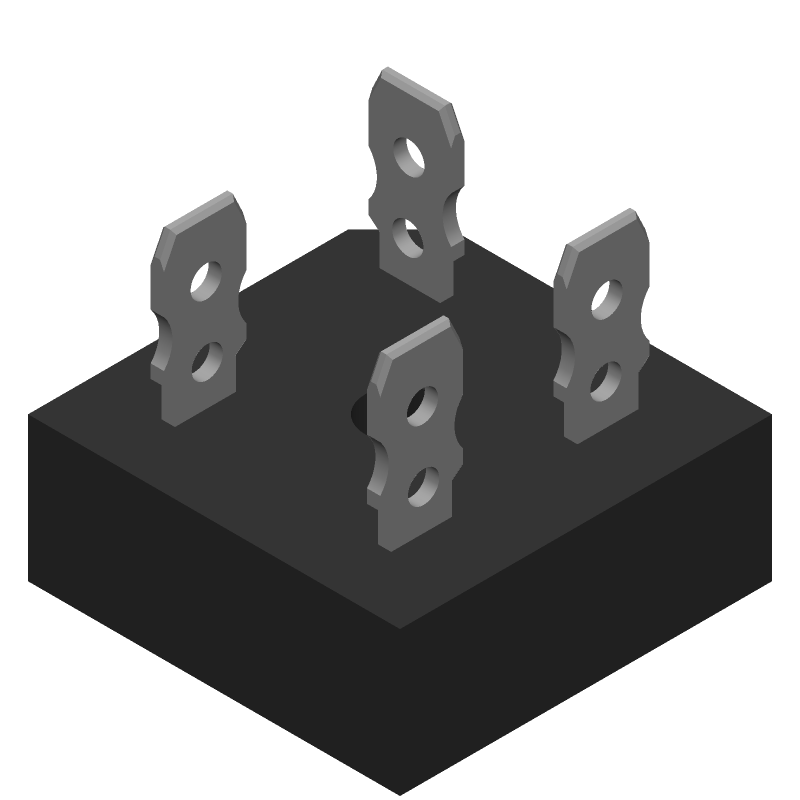

KBPC1501T CAD Models
KBPC1501T Part Data Attributes
|
|
KBPC1501T
GeneSic Semiconductor Inc
Buy Now
Datasheet
|
Compare Parts:
KBPC1501T
GeneSic Semiconductor Inc
100V 15A Silicon Bridge Rectifiers in KBPC-T Package
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | GENESIC SEMICONDUCTOR INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | GeneSiC Semiconductor | |
| Breakdown Voltage-Min | 100 V | |
| Configuration | BRIDGE, 4 ELEMENTS | |
| Diode Type | BRIDGE RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.1 V | |
| Non-rep Pk Forward Current-Max | 300 A | |
| Number of Elements | 4 | |
| Number of Phases | 1 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 15 A | |
| Rep Pk Reverse Voltage-Max | 100 V |
Alternate Parts for KBPC1501T
This table gives cross-reference parts and alternative options found for KBPC1501T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of KBPC1501T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SB151W | Taiwan Semiconductor | Check for Price | Bridge Rectifier Diode, 15A, 100V V(RRM), | KBPC1501T vs SB151W |
| GBPC1501T | GeneSic Semiconductor Inc | Check for Price | 100V 15A Silicon Bridge Rectifiers in GBPC-T Package | KBPC1501T vs GBPC1501T |
| GBPC1501-T | Formosa Microsemi Co Ltd | Check for Price | Bridge Rectifier Diode, 15A, 100V V(RRM), | KBPC1501T vs GBPC1501-T |
| SB151GM | Taiwan Semiconductor | Check for Price | Bridge Rectifier Diode, 15A, 100V V(RRM), | KBPC1501T vs SB151GM |
| KBPC1501(W) | Galaxy Microelectronics | Check for Price | Bridge Rectifier Diode, 15A, 100V V(RRM), | KBPC1501T vs KBPC1501(W) |
| SB151GW | Taiwan Semiconductor | Check for Price | Bridge Rectifier Diode, 15A, 100V V(RRM), | KBPC1501T vs SB151GW |
| GBPC1501S | Won-Top Electronics Co Ltd | Check for Price | Bridge Rectifier Diode, 1 Phase, 15A, 100V V(RRM), Silicon, PLASTIC, KBPC-S, 4 PIN | KBPC1501T vs GBPC1501S |
| SB151/W | RFE International Inc | Check for Price | Bridge Rectifier Diode, 15A, 100V V(RRM), | KBPC1501T vs SB151/W |
| GBPC1501-W | Formosa Microsemi Co Ltd | Check for Price | Bridge Rectifier Diode, 15A, 100V V(RRM), | KBPC1501T vs GBPC1501-W |
| MP1501 | Galaxy Microelectronics | Check for Price | Bridge Rectifier Diode, 15A, 100V V(RRM), | KBPC1501T vs MP1501 |
KBPC1501T Frequently Asked Questions (FAQ)
-
The recommended PCB layout for optimal thermal performance involves placing the device on a thick copper plane, using multiple vias to connect the thermal pad to the copper plane, and keeping the surrounding area clear of other components to allow for good airflow.
-
To ensure reliable operation at high temperatures, it's essential to follow the recommended derating curves, ensure good thermal management, and avoid exceeding the maximum junction temperature (Tj) of 150°C.
-
Exceeding the maximum repetitive reverse voltage (Vrrm) can lead to device failure, reduced lifespan, or even catastrophic failure. It's crucial to ensure that the device operates within the specified Vrrm rating to maintain reliability and performance.
-
To select the correct fuse rating, consider the maximum current rating of the device, the expected inrush current, and the fault current. A fuse with a rating slightly higher than the maximum current rating is recommended to prevent nuisance tripping.
-
To prevent ESD damage, handle the device with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that the assembly process follows ESD-safe practices, and consider using ESD-protected packaging for storage and shipping.
