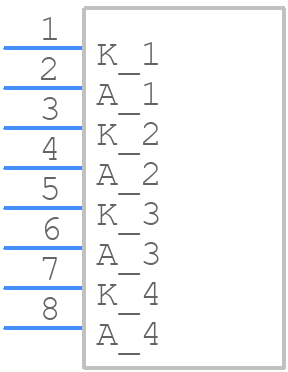

Part Symbol
-

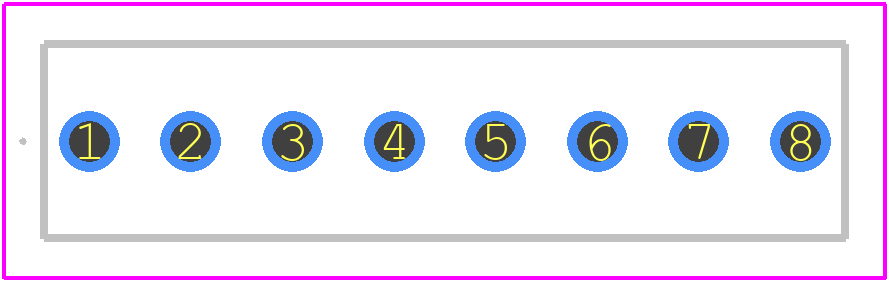

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for KB2450YW by Kingbright
Results Overview of KB2450YW by Kingbright
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
KB2450YW Information
KB2450YW by Kingbright is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for KB2450YW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
754-1183-5-ND
|
DigiKey | LED LGT BAR 19.05X3.81MM YLW Min Qty: 1 Lead time: 13 Weeks Container: Tube |
694 In Stock |
|
$0.7570 / $1.9500 | Buy Now |
|
DISTI #
604-KB2450YW
|
Mouser Electronics | LED Bars & Arrays Yellow 588nm 50mcd Diffused Light Bar RoHS: Compliant | 308 |
|
$0.7570 / $1.9500 | Buy Now |
|
|
Quest Components | 191 |
|
$1.5120 / $3.0240 | Buy Now | |
|
DISTI #
000000000001085134
|
Sager | LED Bars & Arrays Yellow 588nm 50mcd Diffused Light Bar | 0 |
|
Buy Now |
Part Details for KB2450YW
KB2450YW CAD Models
KB2450YW Part Data Attributes
|
|
KB2450YW
Kingbright
Buy Now
Datasheet
|
Compare Parts:
KB2450YW
Kingbright
Single Color LED, Yellow, Diffused White, 19.05mm, ROHS COMPLIANT PACKAGE-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KINGBRIGHT ELECTRONIC CO LTD | |
| Package Description | ROHS COMPLIANT PACKAGE-8 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Kingbright | |
| Color | YELLOW | |
| Color@Wavelength | Yellow | |
| Configuration | SEPARATE, 4 ELEMENTS | |
| Forward Current-Max | 0.03 A | |
| Forward Voltage-Max | 2.5 V | |
| Lens Type | DIFFUSED WHITE | |
| Luminous Intensity-Min | 0.012 cd | |
| Luminous Intensity-Nom | 50.0 mcd | |
| Mounting Feature | RADIAL MOUNT | |
| Number of Functions | 1 | |
| Number of LEDs in Array | 4 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 6.1 mm | |
| Packing Method | BULK | |
| Peak Wavelength | 590 nm | |
| Shape | RECTANGULAR | |
| Size | 19.05 mm | |
| Surface Mount | NO | |
| Terminal Pitch | 2.54 mm |
