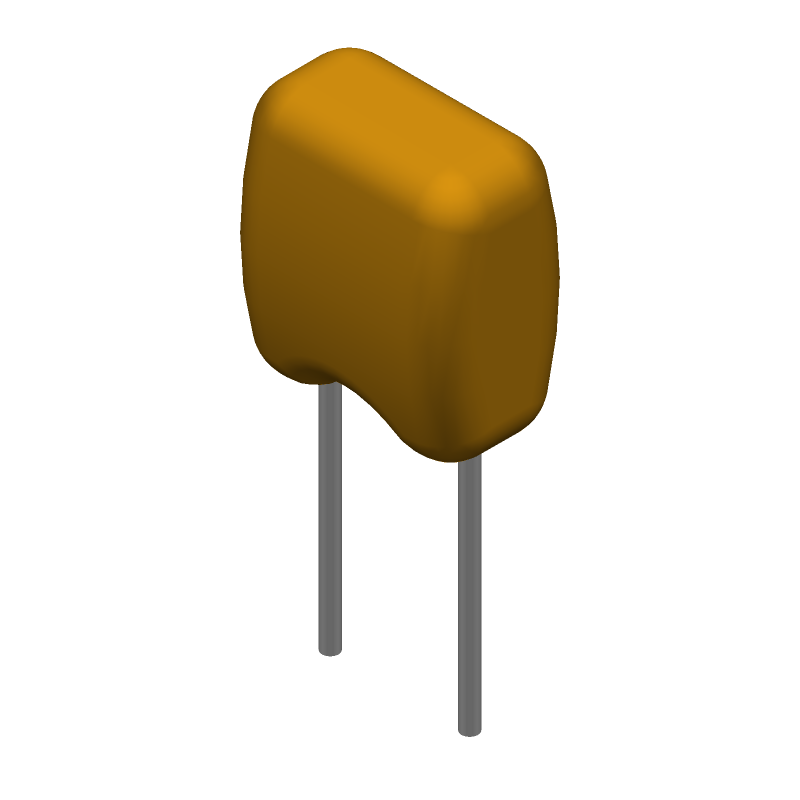

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for K104M15X7RF5UK2 by Vishay Intertechnologies
Results Overview of K104M15X7RF5UK2 by Vishay Intertechnologies
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
Audio and Video Systems
Energy and Power Systems
Transportation and Logistics
Medical Imaging
Renewable Energy
Automotive
Robotics and Drones
K104M15X7RF5UK2 Information
K104M15X7RF5UK2 by Vishay Intertechnologies is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for K104M15X7RF5UK2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
92K1227
|
Newark | K 50V 100Nf ± 20 % X7R Ammo E3 |Vishay K104M15X7RF5UK2 RoHS: Not Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0420 / $0.0510 | Buy Now |
|
DISTI #
K104M15X7RF5UK2
|
Avnet Americas | K 50V 100nF ? 20 % X7R AMMO e3 - Ammo Pack (Alt: K104M15X7RF5UK2) RoHS: Compliant Min Qty: 20000 Package Multiple: 2500 Lead time: 15 Weeks, 0 Days Container: Ammo Pack | 0 |
|
$0.0364 / $0.0389 | Buy Now |
|
DISTI #
594-K104M15X7RF5UK2
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - Leaded K 50V 100NF +/- 20 % X7R AMMO E3 RoHS: Compliant | 0 |
|
$0.0450 | Order Now |
|
|
ComSIT USA | RADIAL LEADED MULTILAYER CERAMIC CAPACITOR Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.1uF, Through Hole Mount ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
K104M15X7RF5UK2
|
Avnet Abacus | K 50V 100nF 20 X7R AMMO e3 (Alt: K104M15X7RF5UK2) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 18 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for K104M15X7RF5UK2
K104M15X7RF5UK2 CAD Models
K104M15X7RF5UK2 Part Data Attributes
|
|
K104M15X7RF5UK2
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
K104M15X7RF5UK2
Vishay Intertechnologies
Ceramic Capacitor, Multilayer, Ceramic, 50V, X7R, -/+15ppm/Cel TC, 0.1uF, 1610
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.60 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Capacitance | 0.1 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 4 mm | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Style | Radial | |
| Packing Method | AMMO PACK | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Reference Standard | IEC60384-9 | |
| Surface Mount | NO | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Pitch | 2.5 mm | |
| Terminal Shape | WIRE | |
| Width | 2.6 mm |
Alternate Parts for K104M15X7RF5UK2
This table gives cross-reference parts and alternative options found for K104M15X7RF5UK2. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of K104M15X7RF5UK2, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| K104M15X7RF53H5 | Vishay Intertechnologies | $0.0115 | Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.1uF, Through Hole Mount, RADIAL LEADED | K104M15X7RF5UK2 vs K104M15X7RF53H5 |
| K104M15X7RF53K2 | Vishay Intertechnologies | $0.0800 | Ceramic Capacitor, Multilayer, Ceramic, 50V, X7R, -/+15ppm/Cel TC, 0.1uF, 1610 | K104M15X7RF5UK2 vs K104M15X7RF53K2 |
| K104M15X7RF53L2 | Vishay Intertechnologies | $0.0814 | Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.1uF, Through Hole Mount, RADIAL LEADED | K104M15X7RF5UK2 vs K104M15X7RF53L2 |
| K104M15X7RF5TH5 | Vishay Intertechnologies | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.1uF, Through Hole Mount, RADIAL LEADED | K104M15X7RF5UK2 vs K104M15X7RF5TH5 |
| K104M15X7RF5TK2 | Vishay Intertechnologies | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, X7R, -/+15ppm/Cel TC, 0.1uF, 1610 | K104M15X7RF5UK2 vs K104M15X7RF5TK2 |
