Switches / Rocker Switches / JWL11BC2A-A
Datasheets

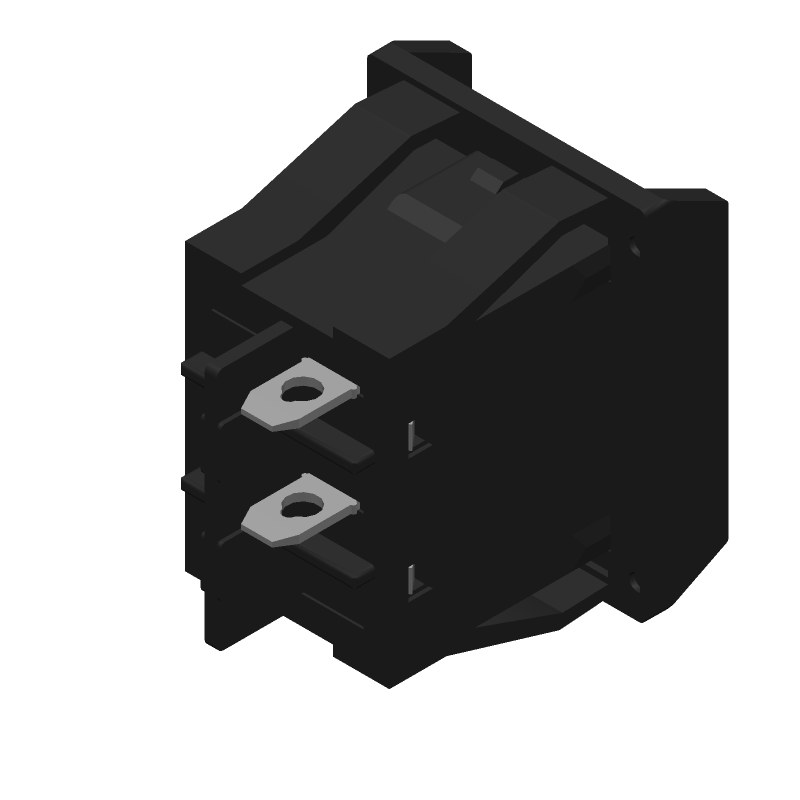

JWL11BC2A-A by: NKK Switches

High Inrush 10 & 16 AMP Rocker; Status: Active; Poles: SPST; Circuits: On-Off; Current Rating: 16A (AC); Rating (AC): 125V; Actuator Type: Concave (Curved); Actuator Cap Color: Red; Actuator Marking: O -; Mounting Type: Panel Mount, Snap-In; Termination Style: Solder, Quick Connect - 0.187" (4.7mm); ingress protection: Dust Proof; Features: Epoxy Sealed Terminals; panel cutout dimensions: Rectangular - 29.50mm x 20.50mm; Rating: 16; Illumination: Non-Illuminated

Part Details for JWL11BC2A-A by NKK Switches

Results Overview of JWL11BC2A-A by NKK Switches

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

JWL11BC2A-A Information

JWL11BC2A-A by NKK Switches is a Rocker Switch.
Rocker Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for JWL11BC2A-A

Part # Distributor Description Stock Price Buy
DISTI # 10X0309
Newark Rocker Switch, Spst, 16A, 250Vac, Red, Switch Operation:On-None-Off, Contact Configuration:Spst, Illumination:Non Illuminated, Switch Mounting:Panel Mount, Actuator/Cap Colour:Red, Product Range:Jw Series, Contact Voltage Vac:250V Rohs Compliant: Yes |Nkk Switches JWL11BC2A-A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $21.2200
  • 5 $20.1800
  • 10 $18.7200
  • 25 $17.1100
  • 50 $14.8500
  • 100 $13.8800
  • 250 $12.6700
$12.6700 / $21.2200 Buy Now
DISTI # 360-3436-ND
DigiKey SWITCH ROCKER SPST 16A 125V Min Qty: 1 Lead time: 20 Weeks Container: Tray 43
In Stock
  • 1 $14.4000
  • 10 $12.4280
  • 25 $11.7180
  • 40 $11.3692
  • 80 $10.8730
  • 230 $10.1569
  • 440 $9.7396
  • 945 $9.2688
$9.2688 / $14.4000 Buy Now
DISTI # 633-JWL11BC2A-A
Mouser Electronics Rocker Switches SPST TV8 RTD RED CAP BLK BARIER VERT MARK RoHS: Compliant 6
  • 1 $12.8500
  • 10 $11.8900
  • 25 $11.3500
  • 50 $10.8700
  • 100 $10.1500
  • 250 $9.7300
  • 500 $9.2600
$9.2600 / $12.8500 Buy Now
DISTI # 70365792
RS Switch, Rocker, SPST, ON-NONE-OFF, Non-Illum, W/Barrier, Red, Vert I/O,16A,125VAC, QC Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Container: Bulk 5
  • 1 $12.9800
  • 5 $11.6800
  • 10 $10.7700
$10.7700 / $12.9800 Buy Now
DISTI # JWL11BC2A-A
TTI Rocker Switches SPST TV8 RTD RED CAP BLK BARIER VERT MARK Min Qty: 1 Package Multiple: 1 Container: Bulk Americas - 14
In Stock
  • 1 $12.7000
  • 5 $12.3300
  • 10 $11.4700
  • 25 $11.2000
  • 40 $10.9700
  • 80 $10.6700
  • 250 $9.7900
$9.7900 / $12.7000 Buy Now
Powell Electronics HIGH INRUSH 16 AMP ROCKER Min Qty: 1 556
  • 1 $13.9800
  • 250 $11.8300
  • 2,500 $9.3700
$9.3700 / $13.9800 Buy Now

Part Details for JWL11BC2A-A

JWL11BC2A-A Part Data Attributes

Parametric Data
JWL11BC2A-A NKK Switches
Buy Now Datasheet
Compare Parts:
JWL11BC2A-A NKK Switches High Inrush 10 & 16 AMP Rocker; Status: Active; Poles: SPST; Circuits: On-Off; Current Rating: 16A (AC); Rating (AC): 125V; Actuator Type: Concave (Curved); Actuator Cap Color: Red; Actuator Marking: O -; Mounting Type: Panel Mount, Snap-In; Termination Style: Solder, Quick Connect - 0.187" (4.7mm); ingress protection: Dust Proof; Features: Epoxy Sealed Terminals; panel cutout dimensions: Rectangular - 29.50mm x 20.50mm; Rating: 16; Illumination: Non-Illuminated
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NKK SWITCHES CO LTD
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.65
Samacsys Manufacturer NKK Switches
Actuator Angle 26 deg
Actuator Color RED
Actuator Finish MATTE
Actuator Length
Actuator Material POLYPHENYLENE OXIDE
Actuator Type ROCKER
Additional Feature TV8 RATING
Body Breadth 20.4978 mm
Body Color BLACK
Body Height 37.0586 mm
Body Length or Diameter 27.9908 mm
Center Contact Material SILVER
Center Contact Plating SILVER
Contact (AC) Max Rating R Load 16A@250VAC
Contact Current(AC)-Max 16 A
Contact Function ON-OFF
Contact Resistance 0.02 mΩ
Contact Voltage(AC)-Max 250 V
Dielectric Withstand Volts 4000VAC V
Electrical Life 25000 Cycle(s)
End Contact Material SILVER
End Contact Plating SILVER
Housing Material NYLON
Insulation Resistance 1000000000 Ω
Insulator Material PHENOLIC
JESD-609 Code e4
Mounting Feature PANEL MOUNT
Operating Force-Max 5 N
Operating Temperature-Max 70 °C
Operating Temperature-Min -25 °C
Sealing EPOXY
Solderability WAVE
Surface Mount NO
Switch Action LATCHED
Switch Function SPST
Switch Type ROCKER SWITCH
Terminal Finish SILVER
Terminal Length 0.283 inch
Terminal Material BRASS
Termination Type SOLDER

Alternate Parts for JWL11BC2A-A

This table gives cross-reference parts and alternative options found for JWL11BC2A-A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of JWL11BC2A-A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
JWL11RC1A NKK Switches $12.6245 High Inrush 10 & 16 AMP Rocker; Status: Active; Poles: SPST; Circuits: On-Off; Current Rating: 16A (AC); Rating (AC): 125V; Actuator Type: Concave (Curved); Actuator Cap Color: Red; Actuator Marking: O I; Mounting Type: Panel Mount, Snap-In; Termination Style: Solder, Quick Connect - 0.187" (4.7mm); ingress protection: Dust Proof; Features: Epoxy Sealed Terminals; panel cutout dimensions: Rectangular - 29.50mm x 20.50mm; Rating: 16; Illumination: Non-Illuminated JWL11BC2A-A vs JWL11RC1A
JWL11RH1H NKK Switches Check for Price Rocker Switch, SPST, On-off, Horizontal, Solder Lug Terminal, Rocker Actuator, Panel Mount JWL11BC2A-A vs JWL11RH1H
JWL11BE2C-H NKK Switches Check for Price Rocker Switch, SPST, On-off, Horizontal, Solder Lug Terminal, Rocker Actuator, Panel Mount JWL11BC2A-A vs JWL11BE2C-H
JWL11BCB-A NKK Switches Check for Price Rocker Switch, SPST, On-off, Horizontal, Solder Lug Terminal, Rocker Actuator, Panel Mount JWL11BC2A-A vs JWL11BCB-A
JWL11BA1B-A NKK Switches Check for Price Rocker Switch, SPST, On-off, Horizontal, Solder Lug Terminal, Rocker Actuator, Panel Mount JWL11BC2A-A vs JWL11BA1B-A
JWL11RC1B NKK Switches Check for Price Rocker Switch, SPST, On-off, Horizontal, Solder Lug Terminal, Rocker Actuator, Panel Mount JWL11BC2A-A vs JWL11RC1B
JWL11RGC NKK Switches Check for Price Rocker Switch, SPST, On-off, Horizontal, Solder Lug Terminal, Rocker Actuator, Panel Mount JWL11BC2A-A vs JWL11RGC
JWL11BCH-B NKK Switches Check for Price Rocker Switch, SPST, On-off, Horizontal, Solder Lug Terminal, Rocker Actuator, Panel Mount JWL11BC2A-A vs JWL11BCH-B
JWL11BBH-A NKK Switches Check for Price Rocker Switch, SPST, On-off, Horizontal, Solder Lug Terminal, Rocker Actuator, Panel Mount JWL11BC2A-A vs JWL11BBH-A
JWL11BHH-H NKK Switches Check for Price Rocker Switch, SPST, On-off, Horizontal, Solder Lug Terminal, Rocker Actuator, Panel Mount JWL11BC2A-A vs JWL11BHH-H

JWL11BC2A-A Related Parts

JWL11BC2A-A Frequently Asked Questions (FAQ)

  • The recommended operating temperature range for the JWL11BC2A-A is -20°C to 70°C.

  • Yes, the JWL11BC2A-A is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.

  • The maximum switching frequency for the JWL11BC2A-A is 20 operations per minute.

  • No, the JWL11BC2A-A is not designed to be washed or cleaned with liquids. It is recommended to use a soft, dry cloth to clean the switch.

  • The expected lifespan of the JWL11BC2A-A switch is 10,000 to 20,000 operations, depending on the operating conditions and usage.
