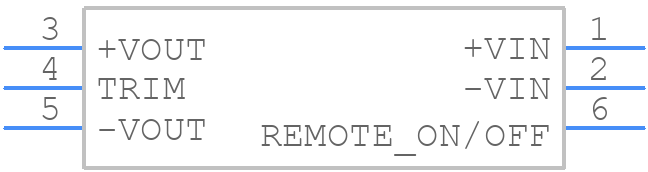

Part Symbol
-

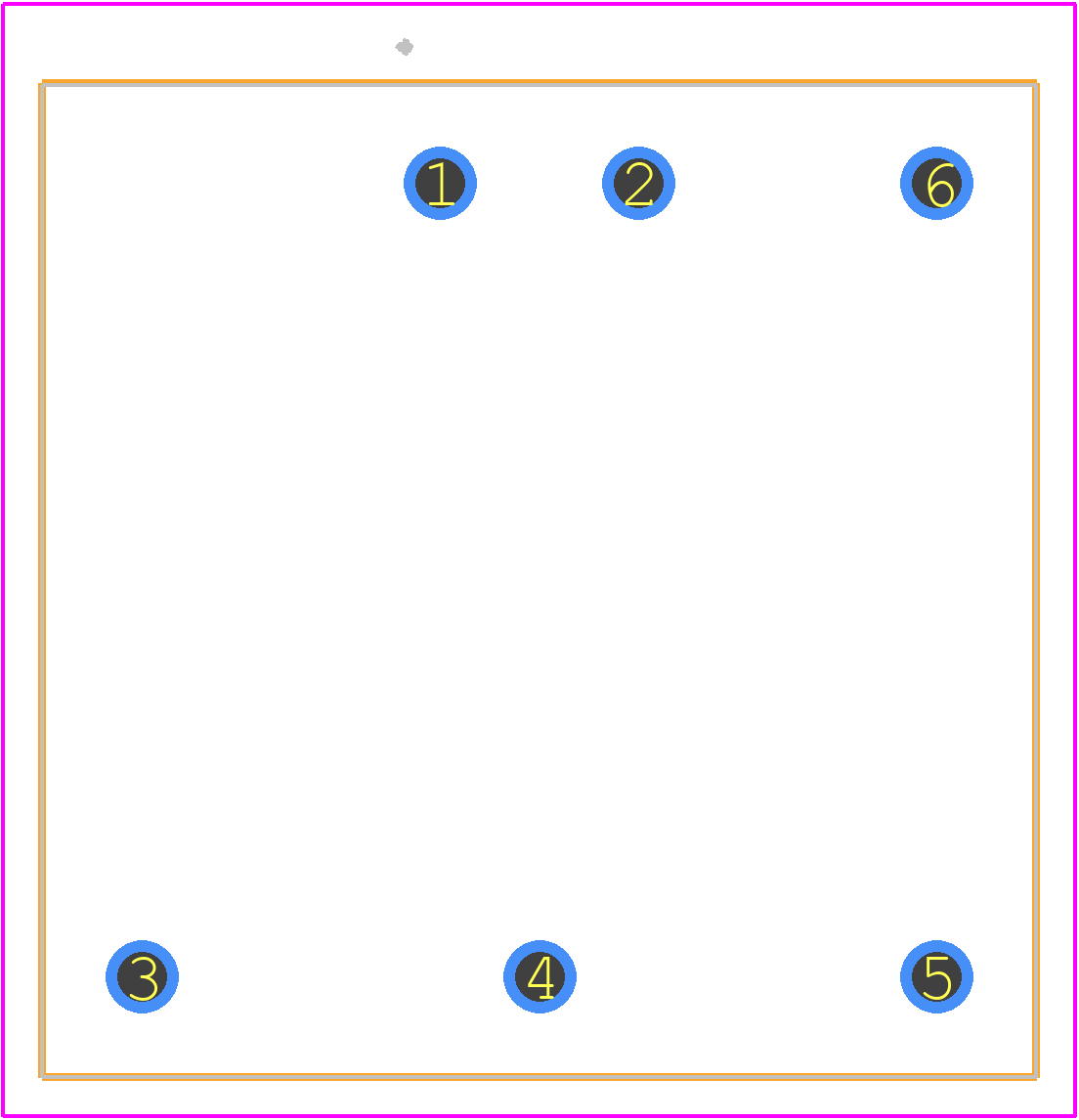

Footprint
-

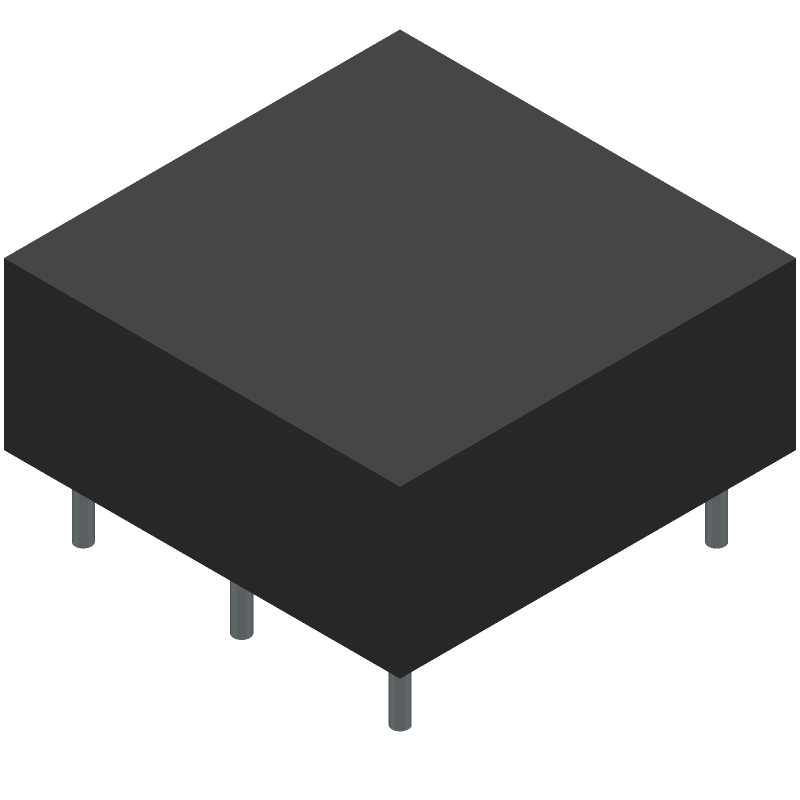

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for JWK2524S05 by XP Power
Results Overview of JWK2524S05 by XP Power
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Healthcare
Renewable Energy
Robotics and Drones
JWK2524S05 Information
JWK2524S05 by XP Power is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for JWK2524S05
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85Y2912
|
Newark | Dc-Dc Converter, 5V, 5A, Power Supply Applications:Ite, Dc/Dc Converter Type:Dip, Input Ratio:4:1, Output Power Max:25W, No. Of Outputs:1 Output, Output Voltage - Output 1:5V, Output Current - Output 1:5A, Isolation Voltage:1.5Kv Rohs Compliant: Yes |Xp Power JWK2524S05 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$51.7500 / $57.4700 | Buy Now |
|
DISTI #
1470-3474-ND
|
DigiKey | DC DC CONVERTER 5V 25W Min Qty: 1 Lead time: 24 Weeks Container: Tube |
20 In Stock |
|
$48.0315 / $57.1800 | Buy Now |
|
DISTI #
209-JWK2524S05
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole DC-DC CONV, 25W, 4:1 INPUT, 1x1" RoHS: Compliant | 3 |
|
$50.4500 / $56.0600 | Buy Now |
|
DISTI #
71929494
|
RS | DC-DC Converter, Thru Hole, DIP, 25W, 5V@5A, 9-36V In, JWK25 Series Min Qty: 10 Package Multiple: 1 Lead time: 24 Weeks, 0 Days Container: Bulk | 0 |
|
$56.6100 / $62.9000 | RFQ |
|
DISTI #
JWK2524S05
|
TME | Converter: DC/DC, 25W, Uin: 9÷36VDC, Uout: 5VDC, Iout: 5A, 1"x1", THT Min Qty: 1 | 0 |
|
$51.1800 / $56.8700 | RFQ |
|
|
Vyrian | Other Function Semiconductors | 7 |
|
RFQ |
Part Details for JWK2524S05
JWK2524S05 CAD Models
JWK2524S05 Part Data Attributes
|
|
JWK2524S05
XP Power
Buy Now
Datasheet
|
Compare Parts:
JWK2524S05
XP Power
DC-DC Regulated Power Supply Module,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | XP POWER LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | XP POWER | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
JWK2524S05 Frequently Asked Questions (FAQ)
-
XP Power recommends a PCB layout with a large copper area for heat dissipation, and a minimum of 2oz copper thickness. A thermal via array under the module can also improve heat dissipation.
-
To ensure reliable start-up, XP Power recommends a soft-start circuit or a ramp-up voltage supply to prevent inrush currents. Additionally, a minimum input voltage of 18V is recommended for reliable start-up.
-
The maximum allowable capacitance on the output is 220uF. Exceeding this value may cause instability or oscillations in the converter.
-
Yes, the JWK2524S05 can be used in a redundant configuration, but it's essential to ensure that the modules are synchronized to prevent oscillations. XP Power recommends using a synchronization signal to ensure proper operation.
-
The maximum operating temperature range for the JWK2524S05 is -40°C to +100°C. However, derating is required above 80°C to ensure reliable operation.
