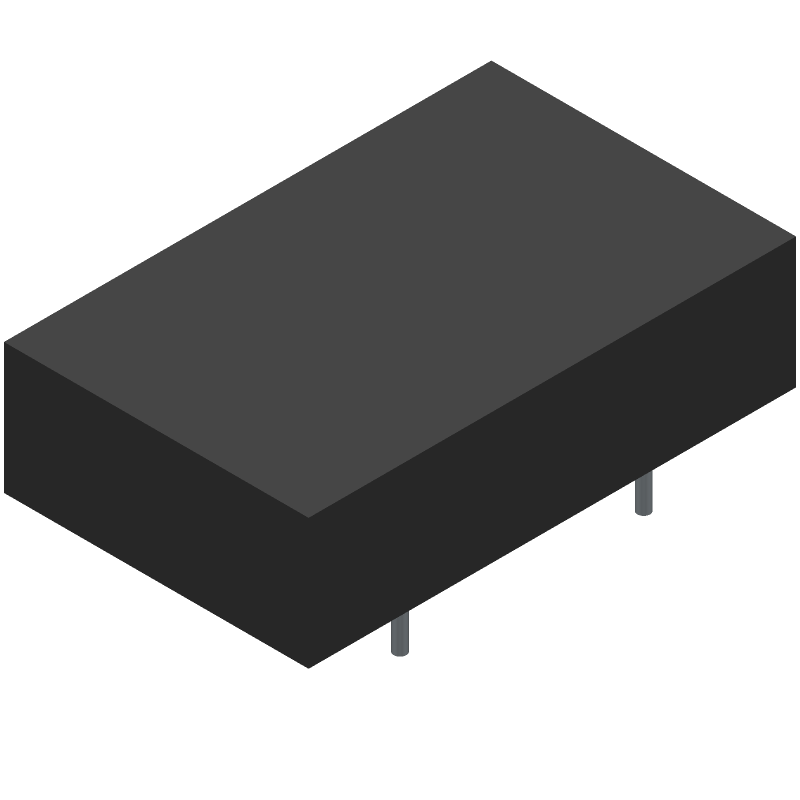

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for JTD1548S12 by XP Power
Results Overview of JTD1548S12 by XP Power
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
JTD1548S12 Information
JTD1548S12 by XP Power is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for JTD1548S12
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
14AC6910
|
Newark | Dc-Dc Converter, 12V, 1.25A, No. Of Outputs:1 Output, Output Power Max:15W, Output Voltage - Output 1:12V, Output Current - Output 1:1.25A, Output Voltage - Output 2:-, Output Current - Output 2:-, Output Voltage - Output 3:-, Outputrohs Compliant: Yes |Xp Power JTD1548S12 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$28.0900 / $33.4400 | Buy Now |
|
DISTI #
17AC5143
|
Newark | Dc-Dc Converter, 12V, 1.25A, Power Supply Applications:Ite, Dc/Dc Converter Type:Dip, Input Ratio:4:1, Output Power Max:15W, No. Of Outputs:1 Output, Output Voltage - Output 1:12V, Output Current - Output 1:1.25A, Width:25.4Mm Rohs Compliant: Yes |Xp Power JTD1548S12 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$28.2800 / $31.4200 | Buy Now |
|
DISTI #
2266-JTD1548S12-1470-ND
|
DigiKey | DC DC CONVERTER 12V 15W Min Qty: 1 Lead time: 14 Weeks Container: Bulk MARKETPLACE PRODUCT |
20 In Stock |
|
$51.5500 / $53.6900 | Buy Now |
|
DISTI #
1470-4226-ND
|
DigiKey | DC DC CONVERTER 12V 15W Min Qty: 1 Lead time: 14 Weeks Container: Tube | Temporarily Out of Stock |
|
$26.3928 / $31.4200 | Buy Now |
|
DISTI #
209-JTD1548S12
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole DC-DC, 15W, 4:1 Input RoHS: Compliant | 20 |
|
$27.7200 / $30.8000 | Buy Now |
|
DISTI #
71929322
|
RS | DC-DC Converter, Thru Hole, DIP, 30W, 12V@1.25A, 18-75V In, JTD15 Series Min Qty: 10 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$29.2300 / $32.4800 | RFQ |
|
DISTI #
JTD1548S12
|
TME | Converter: DC/DC, 15W, Uin: 18÷75VDC, Uout: 12VDC, Iout: 1250mA, THT Min Qty: 1 | 0 |
|
$27.0500 / $35.8000 | RFQ |
Part Details for JTD1548S12
JTD1548S12 CAD Models
JTD1548S12 Part Data Attributes
|
|
JTD1548S12
XP Power
Buy Now
Datasheet
|
Compare Parts:
JTD1548S12
XP Power
DC-DC Regulated Power Supply Module,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | XP POWER LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | XP POWER | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | CE, EN, IEC, UL | |
| Efficiency (Main Output) | 87% | |
| Input Voltage-Max | 75 V | |
| Input Voltage-Min | 18 V | |
| Input Voltage-Nom | 48 V | |
| JESD-30 Code | R-MDMA-P6 | |
| Length | 40.64 mm | |
| Line Regulation-Max | 0.5% | |
| Load Regulation-Max | 0.5% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 12.5 A | |
| Output Voltage-Max | 14.2 V | |
| Output Voltage-Min | 10.8 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | METAL | |
| Package Code | DMA | |
| Package Equivalence Code | MODULE,6LEAD,0.8 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Protections | OVER LOAD, SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.026512 Vrms | |
| Screening Level | UL 62328-1 | |
| Seated Height-Max | 10.9 mm | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Terminal Form | PIN/PEG | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 15 W | |
| Trim/Adjustable Output | YES | |
| Warm-up Time | 0.03 s | |
| Width | 25.4 mm |
JTD1548S12 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the JTD1548S12 is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
-
Yes, the JTD1548S12 is designed to operate in humid environments, with a humidity range of 5% to 95% relative humidity, non-condensing.
-
The recommended input fuse value for the JTD1548S12 is 2A slow-blow or 1A fast-acting, depending on the specific application and safety requirements.
-
Yes, the JTD1548S12 is compatible with lead-free soldering processes, with a peak soldering temperature of 260°C for 10 seconds.
-
The typical efficiency of the JTD1548S12 is around 84% to 87%, depending on the input voltage and output load.
