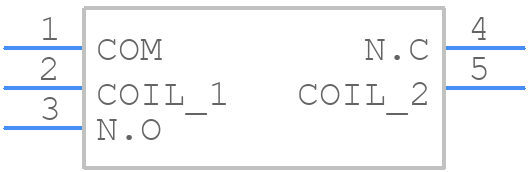

Part Symbol
-

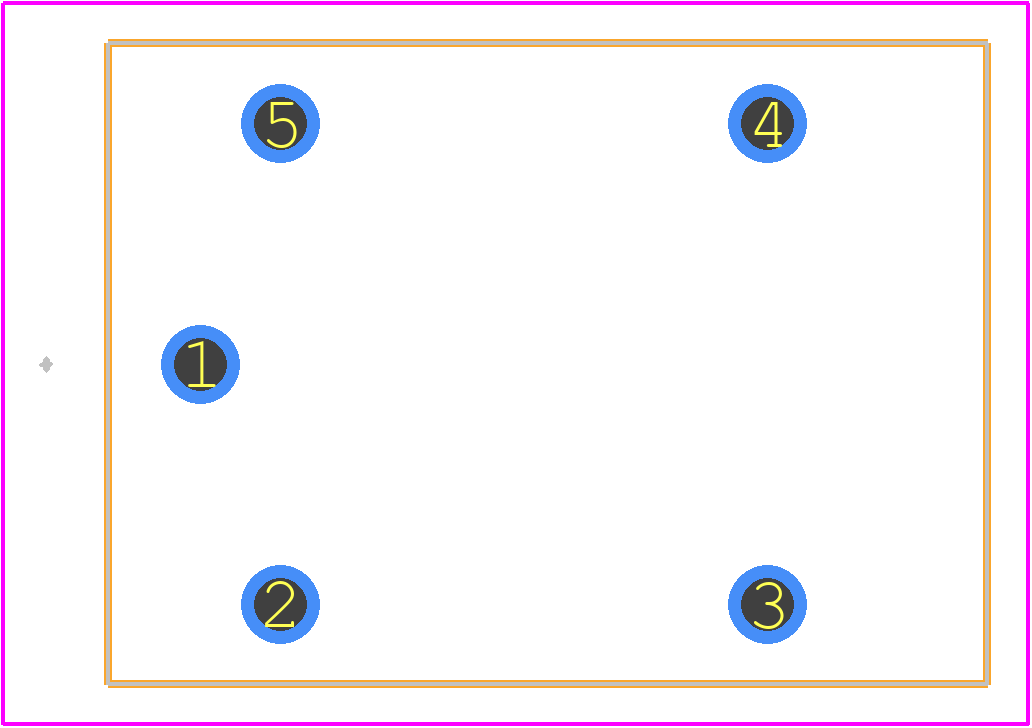

Footprint
-

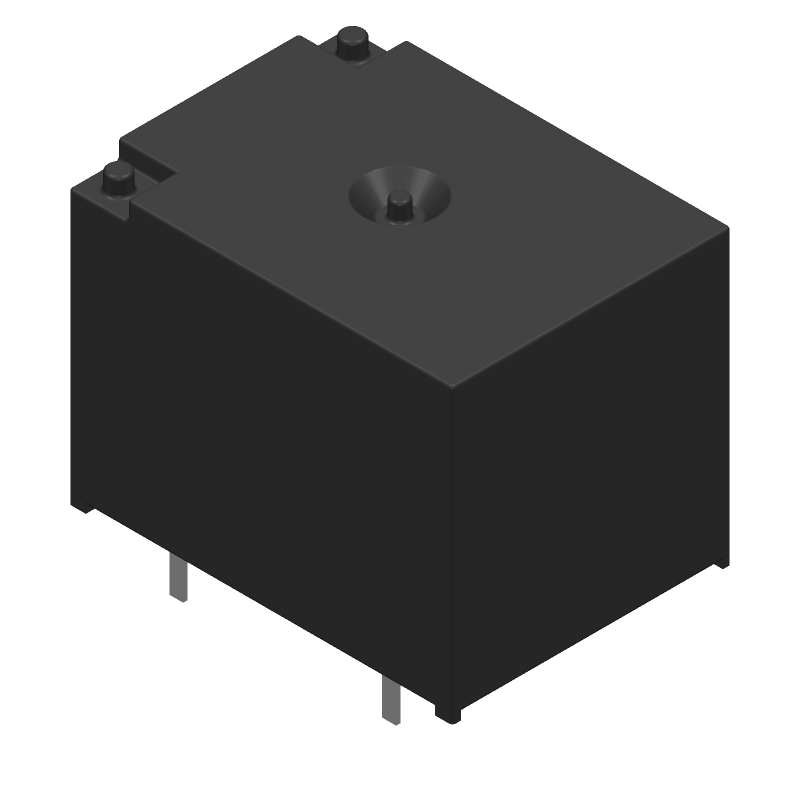

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for JS1-B-12V-FT by Panasonic Electronic Components
Results Overview of JS1-B-12V-FT by Panasonic Electronic Components
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
JS1-B-12V-FT Information
JS1-B-12V-FT by Panasonic Electronic Components is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for JS1-B-12V-FT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip 1 Exchange | INSTOCK | 169843 |
|
RFQ |
Part Details for JS1-B-12V-FT
JS1-B-12V-FT CAD Models
JS1-B-12V-FT Part Data Attributes
|
|
JS1-B-12V-FT
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
JS1-B-12V-FT
Panasonic Electronic Components
Power/Signal Relay, SPDT, Momentary, 0.03A (Coil), 12VDC (Coil), 360mW (Coil), 5A (Contact), 100VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.49.00.50 | |
| Samacsys Manufacturer | Panasonic | |
| Body Breadth | 16 mm | |
| Body Height | 16.4 mm | |
| Body Length or Diameter | 22 mm | |
| Coil Current(DC)-Max | 0.03 A | |
| Coil Operate Voltage(DC) | 8.4 V | |
| Coil Power | 360 mW | |
| Coil Release Voltage(DC) | 1.2 V | |
| Coil Resistance | 400 Ω | |
| Coil Voltage(DC)-Max | 12 V | |
| Coil/Input Supply Type | DC | |
| Contact (AC) Max Rating R Load | 10A@250VAC | |
| Contact Current(AC)-Max | 10 A | |
| Contact Current(DC)-Max | 5 A | |
| Contact (DC) Max Rating R Load | 5A@100VDC | |
| Contact Voltage(AC)-Max | 250 V | |
| Contact Voltage(DC)-Max | 100 V | |
| Contact/Output Supply Type | AC/DC | |
| Electrical Life | 100000 Cycle(s) | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operate Time | 10 ms | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | BOX | |
| Physical Dimension | 22mm x 16mm x 16.4mm | |
| Reference Standard | CSA; TUV; UL; VDE | |
| Relay Action | MOMENTARY | |
| Relay Function | SPDT | |
| Relay Type | POWER/SIGNAL RELAY | |
| Release Time | 10 ms | |
| Surface Mount | NO | |
| Termination Type | SOLDER |
JS1-B-12V-FT Frequently Asked Questions (FAQ)
-
A good PCB layout for the JS1-B-12V-FT relay involves keeping the relay away from high-frequency components, using a ground plane, and minimizing track lengths to reduce electromagnetic interference (EMI).
-
To ensure reliable switching, make sure to follow the recommended coil voltage and current ratings, and use a suitable driver circuit to minimize voltage spikes and electromagnetic interference (EMI).
-
The maximum switching frequency for the JS1-B-12V-FT relay is typically around 20-30 Hz, depending on the application and environmental conditions. Exceeding this frequency may lead to reduced relay lifespan.
-
The JS1-B-12V-FT relay is rated for operation up to 85°C (185°F). However, it's essential to derate the relay's performance and consider thermal management strategies when operating in high-temperature environments.
-
Use a suitable voltage regulator and overcurrent protection circuitry, such as a fuse or current limiter, to prevent damage to the relay from voltage spikes or excessive current.
