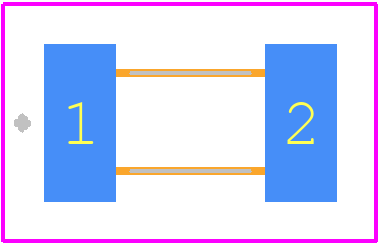

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for JANTXV1N5811US by Microsemi Corporation
Results Overview of JANTXV1N5811US by Microsemi Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
JANTXV1N5811US Information
JANTXV1N5811US by Microsemi Corporation is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for JANTXV1N5811US
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Quest Components | RECTIFIER DIODE,150V V(RRM),DO-213AB | 135 |
|
$24.2576 / $30.3220 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE,150V V(RRM),DO-213AB | 60 |
|
$21.3180 / $25.0800 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE,150V V(RRM),DO-213AB | 2 |
|
$16.3020 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE,150V V(RRM),DO-213AB | 1 |
|
$24.2800 | Buy Now |
|
|
Vyrian | Diodes | 71 |
|
RFQ |
Part Details for JANTXV1N5811US
JANTXV1N5811US CAD Models
JANTXV1N5811US Part Data Attributes
|
|
JANTXV1N5811US
Microsemi Corporation
Buy Now
Datasheet
|
Compare Parts:
JANTXV1N5811US
Microsemi Corporation
Rectifier Diode, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, HERMETIC SEALED, GLASS, MELF-2
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | MICROSEMI CORP | |
| Package Description | HERMETIC SEALED, GLASS, MELF-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | Microsemi Corporation | |
| Additional Feature | HIGH RELIABILITY, METALLURGICALLY BONDED | |
| Application | ULTRA FAST RECOVERY | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| JESD-30 Code | O-LELF-R2 | |
| JESD-609 Code | e0 | |
| Non-rep Pk Forward Current-Max | 125 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 3 A | |
| Package Body Material | GLASS | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Power Dissipation-Max | 5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | MIL-19500 | |
| Rep Pk Reverse Voltage-Max | 150 V | |
| Reverse Recovery Time-Max | 0.03 µs | |
| Surface Mount | YES | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | WRAP AROUND | |
| Terminal Position | END |
Alternate Parts for JANTXV1N5811US
This table gives cross-reference parts and alternative options found for JANTXV1N5811US. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of JANTXV1N5811US, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| JANTXV1N5811URS | Microchip Technology Inc | $25.2784 | Rectifier Diode, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon | JANTXV1N5811US vs JANTXV1N5811URS |
| JAN1N5811URS | Microsemi Corporation | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, HERMETIC SEALED, GLASS, MELF-2 | JANTXV1N5811US vs JAN1N5811URS |
| JAN1N5811URS | MACOM | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, | JANTXV1N5811US vs JAN1N5811URS |
| JANTXV1N5811US | Solid State Devices Inc (SSDI) | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, | JANTXV1N5811US vs JANTXV1N5811US |
| 1N5811US | VPT Components | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, | JANTXV1N5811US vs 1N5811US |
| 1N5811USE3 | Microsemi Corporation | Check for Price | Rectifier Diode, Avalanche, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, ROHS COMPLIANT, HERMETIC SEALED, GLASS, B, MELF-2 | JANTXV1N5811US vs 1N5811USE3 |
