JANTX1N5811US Information
JANTX1N5811US by Microchip Technology Inc is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for JANTX1N5811US
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
35AJ5381
|
Newark | 150V 3A Ufr, frr Sq Smt B-Body Sq. Melf Rohs Compliant: Yes |Microchip JANTX1N5811US RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$7.2300 / $7.5100 | Buy Now |
|
DISTI #
1086-2485-ND
|
DigiKey | DIODE STANDARD 150V 3A B SQMELF Min Qty: 1 Lead time: 24 Weeks Container: Bulk |
292 In Stock |
|
$7.5100 / $8.0900 | Buy Now |
|
DISTI #
JANTX1N5811US
|
Avnet Americas | Diode Ultra Fast Recovery 150V 3A 2-Pin Case B Bag - Bulk (Alt: JANTX1N5811US) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 24 Weeks, 0 Days Container: Bulk | 0 |
|
$7.1136 / $7.3990 | Buy Now |
|
DISTI #
494-JANTX1N5811US
|
Mouser Electronics | Rectifiers 150V 3A UFR,FRR SQ SMT RoHS: Not Compliant | 393 |
|
$7.4800 / $8.0900 | Buy Now |
|
DISTI #
VBI:5287_07457231
|
Arrow Electronics | Diode Switching 150V 6A 2-Pin E-MELF Bag RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 24 Weeks Date Code: 2318 | Americas - 225 |
|
$7.4150 / $8.0670 | Buy Now |
|
DISTI #
JANTX1N5811US
|
Microchip Technology Inc | UFR,FRR _ B-Body Sq. Melf, Projected EOL: 2049-02-05 COO: Philippines ECCN: EAR99 Lead time: 24 Weeks, 0 Days |
1966 Alternates Available |
|
$8.0900 | Buy Now |
|
|
Onlinecomponents.com | Ufr, frr B-Body Sq. Melf Rohs Compliant: Yes |Microchip JANTX1N5811US/TR RoHS: Compliant |
59 In Stock 500 On Order 1966 Factory Stock |
|
$6.9200 / $8.6300 | Buy Now |
|
DISTI #
81323261
|
Verical | Diode Switching 150V 6A 2-Pin E-MELF Bag RoHS: Not Compliant Min Qty: 10 Package Multiple: 5 Date Code: 2251 | Americas - 55 |
|
$11.2190 | Buy Now |
|
|
NAC | Rectifier RoHS: Compliant Min Qty: 43 Package Multiple: 1 | 0 |
|
$7.0500 / $8.5000 | Buy Now |
|
DISTI #
JANTX1N5811US
|
Avnet Silica | Diode Ultra Fast Recovery 150V 3A 2Pin Case B Bag (Alt: JANTX1N5811US) RoHS: Not Compliant Min Qty: 100 Package Multiple: 1 Lead time: 26 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for JANTX1N5811US

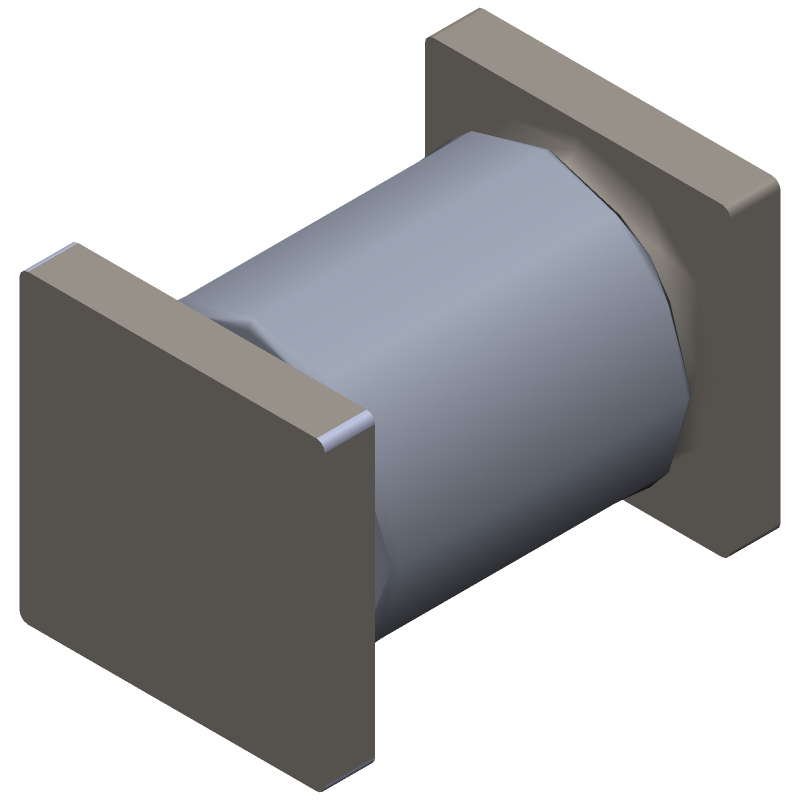

JANTX1N5811US CAD Models
JANTX1N5811US Part Data Attributes
|
|
JANTX1N5811US
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
JANTX1N5811US
Microchip Technology Inc
Rectifier Diode, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | HERMETIC SEALED, GLASS, MELF-2 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Additional Feature | HIGH RELIABILITY, METALLURGICALLY BONDED | |
| Application | ULTRA FAST RECOVERY | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| JESD-30 Code | O-LELF-R2 | |
| JESD-609 Code | e0 | |
| Non-rep Pk Forward Current-Max | 125 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 3 A | |
| Package Body Material | GLASS | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Power Dissipation-Max | 5 W | |
| Qualification Status | Qualified | |
| Reference Standard | MIL-19500 | |
| Rep Pk Reverse Voltage-Max | 150 V | |
| Reverse Recovery Time-Max | 0.03 µs | |
| Surface Mount | YES | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | WRAP AROUND | |
| Terminal Position | END |
Alternate Parts for JANTX1N5811US
This table gives cross-reference parts and alternative options found for JANTX1N5811US. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of JANTX1N5811US, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| JANTX1N5811US | VPT Components | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, | JANTX1N5811US vs JANTX1N5811US |
| 1N5811URS | Microsemi Corporation | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, HERMETIC SEALED, GLASS, MELF-2 | JANTX1N5811US vs 1N5811URS |
| JANTXV1N5811URS | MACOM | Check for Price | Rectifier Diode, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon, | JANTX1N5811US vs JANTXV1N5811URS |
JANTX1N5811US Frequently Asked Questions (FAQ)
-
The recommended storage temperature for JANTX1N5811US is -65°C to 150°C.
-
Yes, the JANTX1N5811US is a high-reliability device, designed and manufactured to meet the requirements of high-reliability applications, such as aerospace and defense.
-
The maximum operating junction temperature for JANTX1N5811US is 150°C.
-
Yes, the JANTX1N5811US is a radiation-hardened device, designed to withstand the effects of ionizing radiation.
-
The typical reverse recovery time for JANTX1N5811US is 50 ns.
