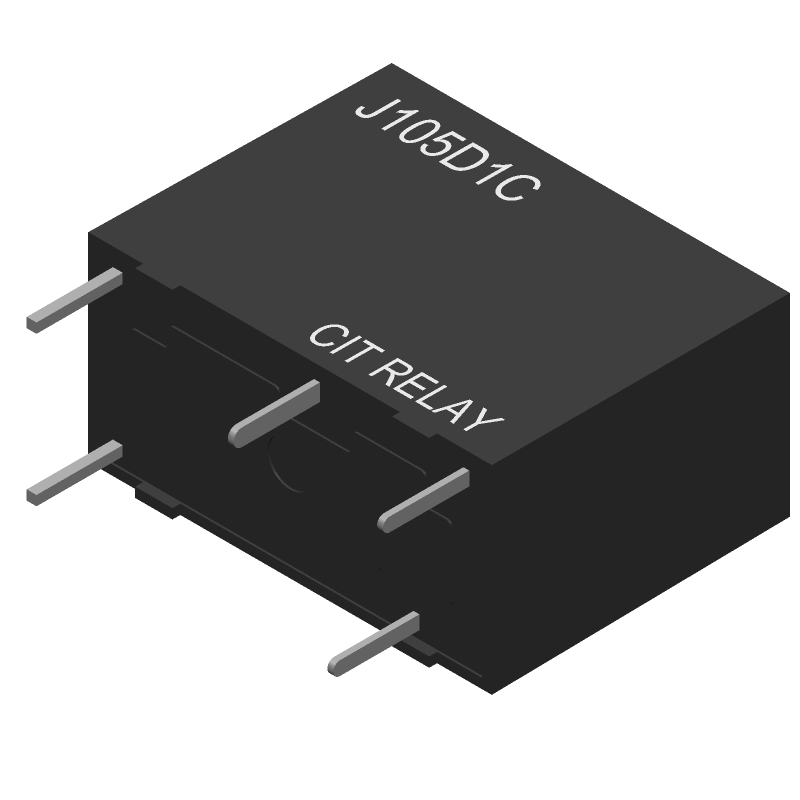

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for J105D1CS24VDC.45 by CIT Relay & Switch
Results Overview of J105D1CS24VDC.45 by CIT Relay & Switch
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Audio and Video Systems
J105D1CS24VDC.45 Information
J105D1CS24VDC.45 by CIT Relay & Switch is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for J105D1CS24VDC.45
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2449-J105D1CS24VDC.45-ND
|
DigiKey | RELAY GEN PURPOSE SPDT 10A 24V Min Qty: 1 Lead time: 20 Weeks Container: Tray |
392 In Stock |
|
$1.0189 / $1.5600 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.9190 / $1.3400 | Buy Now |
Part Details for J105D1CS24VDC.45
J105D1CS24VDC.45 CAD Models
J105D1CS24VDC.45 Part Data Attributes
|
|
J105D1CS24VDC.45
CIT Relay & Switch
Buy Now
Datasheet
|
Compare Parts:
J105D1CS24VDC.45
CIT Relay & Switch
Power/Signal Relay, 1 Form C, SPDT, Momentary, 0.019A (Coil), 31.2VDC (Coil), 450mW (Coil), DC Input, Random, AC Output, Through Hole-Straight Mount,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | CIT RELAY & SWITCH | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | CIT Relay & Switch | |
| Body Breadth | 10.15 mm | |
| Body Height | 15.75 mm | |
| Body Length or Diameter | 20.59 mm | |
| Coil Current(DC)-Max | 0.019 A | |
| Coil Operate Voltage(DC) | 18 V | |
| Coil Power | 450 mW | |
| Coil Release Voltage(DC) | 2.4 V | |
| Coil Resistance | 1280 Ω | |
| Coil Voltage(DC)-Max | 31.2 V | |
| Coil Voltage-Nom | 24 V | |
| Coil/Input Supply Type | DC | |
| Contact (AC) Max Power Rating R Load | 2770VA@277VAC | |
| Contact (AC) Max Rating R Load | 10A@277VAC | |
| Contact Current(AC)-Max | 10 A | |
| Contact Resistance | 50 mΩ | |
| Contact Voltage(AC)-Max | 277 V | |
| Contact/Output Supply Type | AC | |
| Electrical Life | 100000 Cycle(s) | |
| End Contact Material | SILVER TIN OXIDE | |
| Input Switching Control Type | Random | |
| Insulation Resistance | 1000000000 Ω | |
| Mounting Feature | THROUGH HOLE-STRAIGHT MOUNT | |
| Number of Terminals | 5 | |
| Operate Time | 10 ms | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Physical Dimension | 20.59mm x 10.15mm x 15.75mm | |
| Reference Standard | CUL; UL | |
| Relay Action | MOMENTARY | |
| Relay Form | 1 FORM C | |
| Relay Function | SPDT | |
| Relay Type | POWER/SIGNAL RELAY | |
| Release Time | 10 ms | |
| Surface Mount | NO | |
| Terminal Length | 0.004000508001016002 inch | |
| Termination Type | SOLDER |
