IXTQ60N20L2 Information
IXTQ60N20L2 by Littelfuse Inc is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IXTQ60N20L2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
03AH1771
|
Newark | Disc Mosfet N-Ch Linear L2 To-3P (3)/ Tube |Littelfuse IXTQ60N20L2 RoHS: Not Compliant Min Qty: 300 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$11.5100 / $12.3900 | Buy Now |
|
DISTI #
69705957
|
Verical | Trans MOSFET N-CH 200V 60A 3-Pin(3+Tab) TO-3P Min Qty: 5 Package Multiple: 1 Date Code: 2301 | Americas - 20 |
|
$19.1688 | Buy Now |
|
|
Quest Components | 16 |
|
$22.5150 / $23.7000 | Buy Now |
Part Details for IXTQ60N20L2

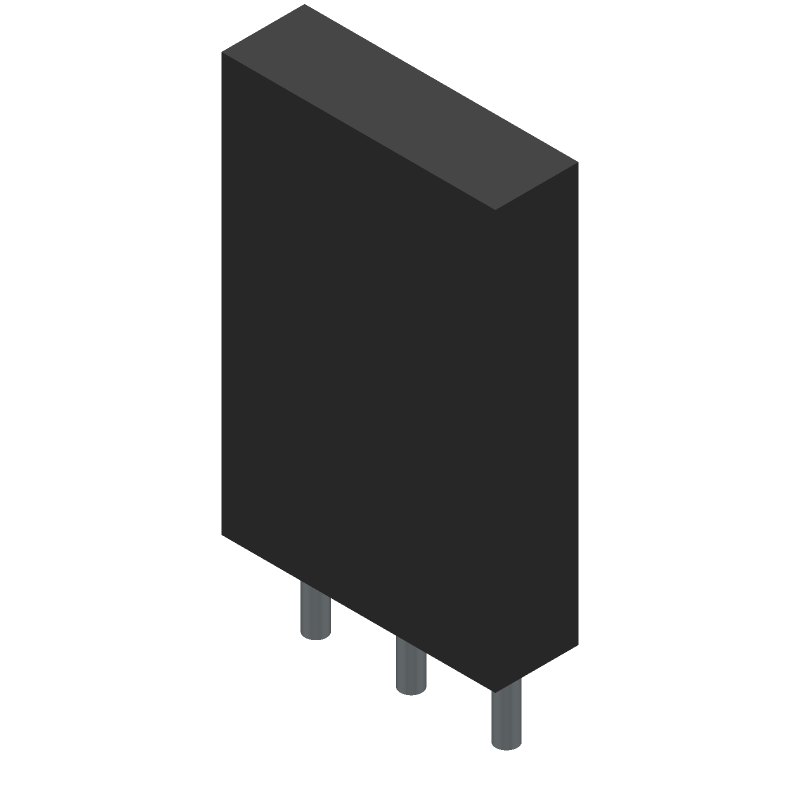

IXTQ60N20L2 CAD Models
IXTQ60N20L2 Part Data Attributes
|
|
IXTQ60N20L2
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
IXTQ60N20L2
Littelfuse Inc
Power Field-Effect Transistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | AVALANCHE RATED | |
| Avalanche Energy Rating (Eas) | 2000 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 200 V | |
| Drain Current-Max (ID) | 60 A | |
| Drain-source On Resistance-Max | 0.045 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 255 pF | |
| JESD-30 Code | R-PSFM-T3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 540 W | |
| Pulsed Drain Current-Max (IDM) | 150 A | |
| Surface Mount | NO | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON |
