IXFK360N15T2 Information
IXFK360N15T2 by Littelfuse Inc is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IXFK360N15T2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
03AH0671
|
Newark | Discmsft Nchtrenchgate-Gen2 To-264(3)/ Tube |Littelfuse IXFK360N15T2 RoHS: Not Compliant Min Qty: 300 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$20.7400 | Buy Now |
|
DISTI #
IXFK360N15T2-ND
|
DigiKey | MOSFET N-CH 150V 360A TO264AA Min Qty: 1 Lead time: 25 Weeks Container: Tube |
205 In Stock |
|
$19.9626 / $30.5100 | Buy Now |
Part Details for IXFK360N15T2

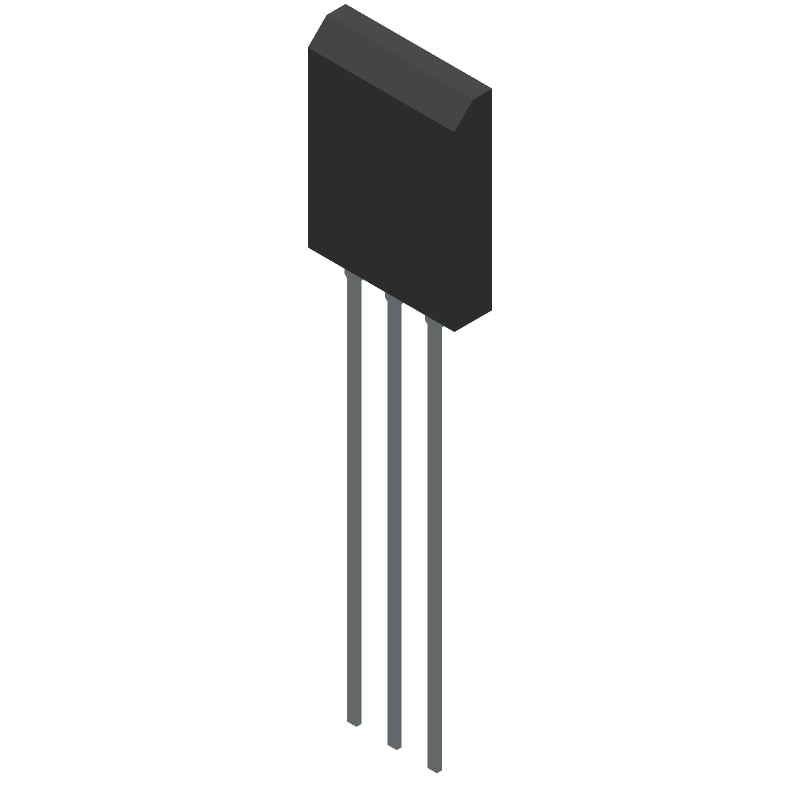

IXFK360N15T2 CAD Models
IXFK360N15T2 Part Data Attributes
|
|
IXFK360N15T2
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
IXFK360N15T2
Littelfuse Inc
Power Field-Effect Transistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | AVALANCHE RATED | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 150 V | |
| Drain Current-Max (ID) | 360 A | |
| Drain-source On Resistance-Max | 0.004 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 665 pF | |
| JEDEC-95 Code | TO-264AA | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 1670 W | |
| Pulsed Drain Current-Max (IDM) | 900 A | |
| Surface Mount | NO | |
| Terminal Finish | Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for IXFK360N15T2
This table gives cross-reference parts and alternative options found for IXFK360N15T2. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IXFK360N15T2, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| IXFX360N15T2 | IXYS Corporation | $14.9150 | Power Field-Effect Transistor, 360A I(D), 150V, 0.004ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, PLASTIC, PLUS247, 3 PIN | IXFK360N15T2 vs IXFX360N15T2 |
