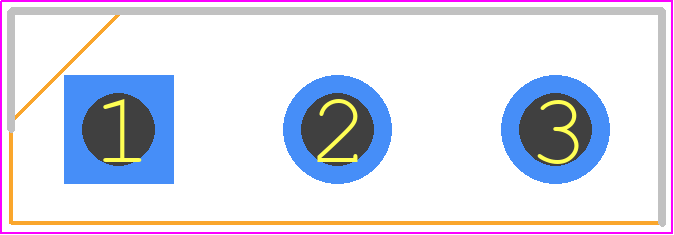

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IXFH150N17T2 by Littelfuse Inc
Results Overview of IXFH150N17T2 by Littelfuse Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
IXFH150N17T2 Information
IXFH150N17T2 by Littelfuse Inc is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for IXFH150N17T2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AK0423
|
Newark | Mosfet, 150A, 175V, 880W, To-247-3 Rohs Compliant: Yes |Littelfuse IXFH150N17T2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 250 |
|
$5.4800 / $9.3400 | Buy Now |
|
DISTI #
IXFH150N17T2-ND
|
DigiKey | MOSFET N-CH 175V 150A TO247AD Min Qty: 1 Lead time: 25 Weeks Container: Tube |
20 In Stock |
|
$5.1646 / $9.7200 | Buy Now |
|
DISTI #
75577859
|
RS | DiscMSFT NChTrenchGate-Gen2 TO-247AD Min Qty: 300 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$7.3500 / $7.9900 | RFQ |
Part Details for IXFH150N17T2
IXFH150N17T2 CAD Models
IXFH150N17T2 Part Data Attributes
|
|
IXFH150N17T2
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
IXFH150N17T2
Littelfuse Inc
Power Field-Effect Transistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | AVALANCHE RATED | |
| Avalanche Energy Rating (Eas) | 1000 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 175 V | |
| Drain Current-Max (ID) | 150 A | |
| Drain-source On Resistance-Max | 0.012 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 136 pF | |
| JEDEC-95 Code | TO-247AD | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 880 W | |
| Pulsed Drain Current-Max (IDM) | 400 A | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
