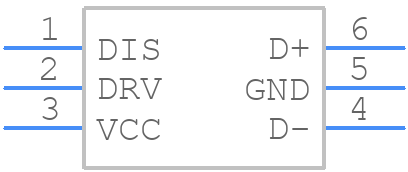

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IW636-06 by Renesas Electronics Corporation
Results Overview of IW636-06 by Renesas Electronics Corporation
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IW636-06 Information
IW636-06 by Renesas Electronics Corporation is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Part Details for IW636-06
IW636-06 CAD Models
IW636-06 Part Data Attributes
|
|
IW636-06
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
IW636-06
Renesas Electronics Corporation
Battery Charge Controller, 0.6A, PDSO6
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Package Description | SOT-23, 6 PIN | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Renesas Electronics | |
| Analog IC - Other Type | BATTERY CHARGE CONTROLLER | |
| Input Voltage-Max | 16 V | |
| Input Voltage-Min | 3 V | |
| JESD-30 Code | R-PDSO-G6 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Output Current-Max | 0.6 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Seated Height-Max | 1.45 mm | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Width | 1.6 mm |
