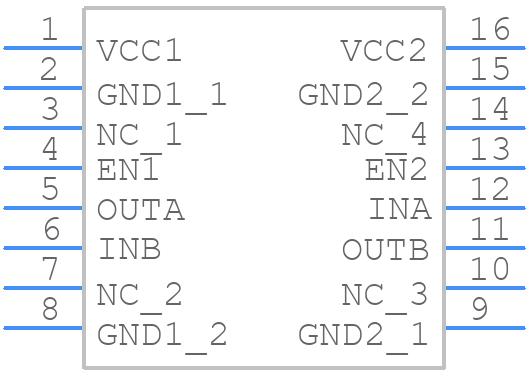

Part Symbol
-
Footprint
-

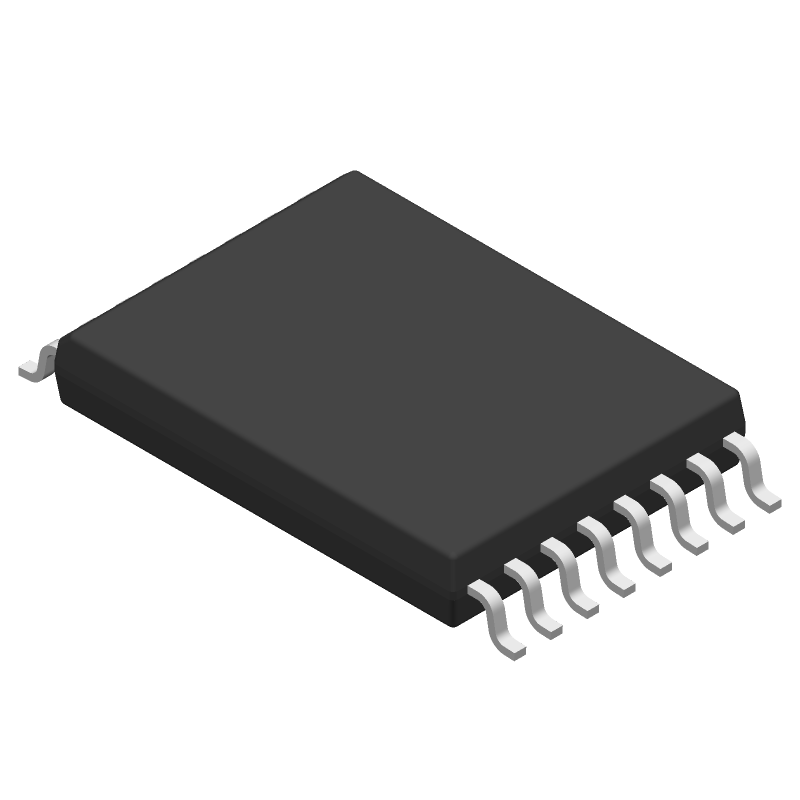

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISO7821DWWR by Texas Instruments
Results Overview of ISO7821DWWR by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ISO7821DWWR Information
ISO7821DWWR by Texas Instruments is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ISO7821DWWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-52648-1-ND
|
DigiKey | DGTL ISOLTR 5.7KV 2CH GP 16-SOIC Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1458 In Stock |
|
$3.6405 / $7.7400 | Buy Now |
|
DISTI #
595-ISO7821DWWR
|
Mouser Electronics | Digital Isolators Highest isolation ra ting dual-channel A 595-ISO7821DWW RoHS: Compliant | 1323 |
|
$3.5200 / $7.7400 | Buy Now |
|
DISTI #
J56:1989_10302494
|
Arrow Electronics | Digital Isolator CMOS 2-CH 100Mbps 16-Pin SOIC T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks Date Code: 2347 | Europe - 13000 |
|
$3.3210 / $3.4130 | Buy Now |
|
|
Win Source Electronics | DGTL ISO 5.7KV 2CH 16SOIC / High-Performance, 8000 VPK Reinforced Dual Channel Digital Isolator | 10500 |
|
$5.2137 / $7.8205 | Buy Now |
Part Details for ISO7821DWWR
ISO7821DWWR CAD Models
ISO7821DWWR Part Data Attributes
|
|
ISO7821DWWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ISO7821DWWR
Texas Instruments
Highest isolation rating, dual-channel, 1/1, reinforced digital isolator 16-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2016-06-19 | |
| Samacsys Manufacturer | Texas Instruments | |
| Interface IC Type | INTERFACE CIRCUIT | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 14 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Channels | 2 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.25 V | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10.3 mm |
Alternate Parts for ISO7821DWWR
This table gives cross-reference parts and alternative options found for ISO7821DWWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISO7821DWWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISO7821DWW | Texas Instruments | $4.0667 | Highest isolation rating, dual-channel, 1/1, reinforced digital isolator 16-SOIC -55 to 125 | ISO7821DWWR vs ISO7821DWW |
ISO7821DWWR Frequently Asked Questions (FAQ)
-
The ISO7821DWWR can support data rates up to 100 Mbps.
-
The ISO7821DWWR has a high common-mode transient immunity of ±25 kV/μs, making it suitable for applications with high electromagnetic interference (EMI).
-
The typical propagation delay of the ISO7821DWWR is around 10 ns, making it suitable for high-speed applications.
-
Yes, the ISO7821DWWR is designed to operate in harsh environments with temperatures ranging from -40°C to 125°C, making it suitable for industrial and automotive applications.
-
The ISO7821DWWR has a high power supply rejection ratio (PSRR) of 120 dB, making it resistant to power supply noise and ensuring reliable operation.
