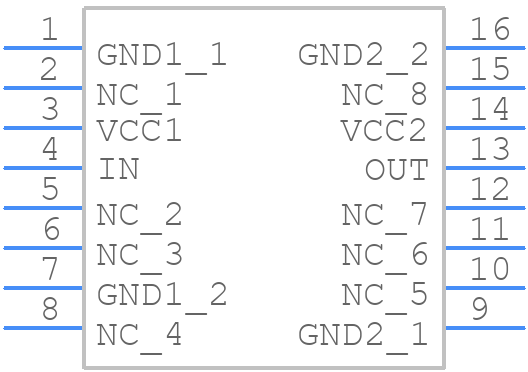

Part Symbol
-
Footprint
-

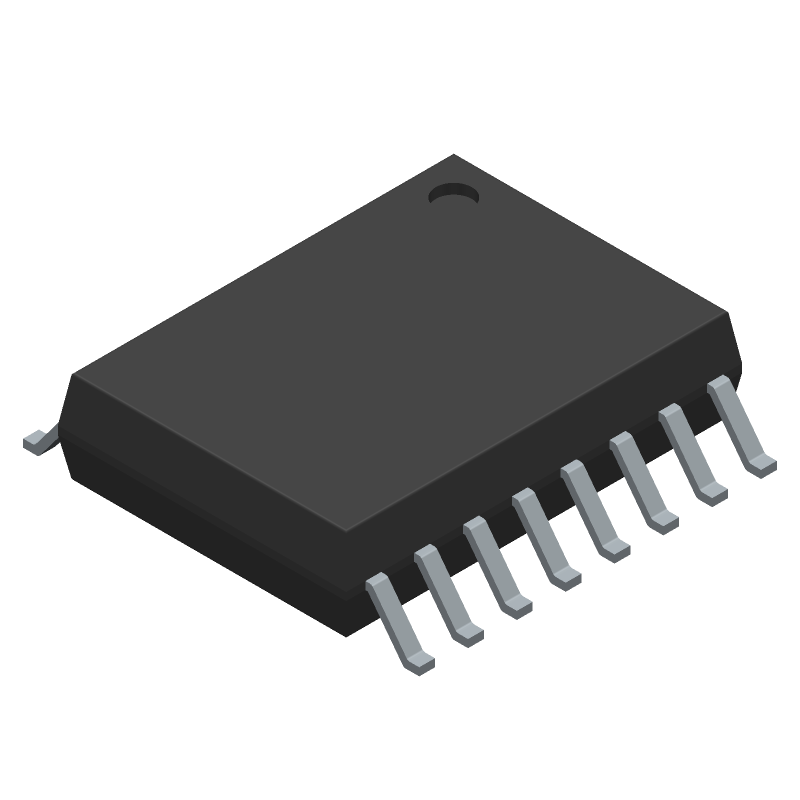

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISO7810DW by Texas Instruments
Results Overview of ISO7810DW by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Security and Surveillance
Financial Technology (Fintech)
Telecommunications
ISO7810DW Information
ISO7810DW by Texas Instruments is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ISO7810DW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-ISO7810DW-296-ND
|
DigiKey | DGTL ISOLTR 5.7KV 1CH GP 16-SOIC Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
120 In Stock |
|
$2.9100 | Buy Now |
|
DISTI #
296-43213-ND
|
DigiKey | DGTL ISOLTR 5.7KV 1CH GP 16-SOIC Min Qty: 1 Lead time: 6 Weeks Container: Bulk |
76 In Stock |
|
$2.8782 / $5.1700 | Buy Now |
|
DISTI #
595-ISO7810DW
|
Mouser Electronics | Digital Isolators Highest isolation ra ting single-channel A 595-ISO7810DWR RoHS: Compliant | 0 |
|
$2.8200 / $5.1700 | Order Now |
|
DISTI #
85988702
|
Verical | Digital Isolator CMOS/LVCMOS 1-CH 100Mbps Medical 16-Pin SOIC Tube RoHS: Compliant Min Qty: 113 Package Multiple: 1 Date Code: 1501 | Americas - 120 |
|
$2.8000 / $3.3250 | Buy Now |
Part Details for ISO7810DW
ISO7810DW CAD Models
ISO7810DW Part Data Attributes
|
|
ISO7810DW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ISO7810DW
Texas Instruments
Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SOIC-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO REQUIRE VCC2 FROM 2.25 -5.5V; ALSO OPERATE WITH 3.3V AND 5 V SUPPLY | |
| Interface IC Type | INTERFACE CIRCUIT | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 10.3 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.25 V | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
Alternate Parts for ISO7810DW
This table gives cross-reference parts and alternative options found for ISO7810DW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISO7810DW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISO7810DWR | Texas Instruments | $2.0073 | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DW vs ISO7810DWR |
| ISO7810FDWR | Texas Instruments | $2.0073 | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DW vs ISO7810FDWR |
| ISO7810FDWWR | Texas Instruments | $3.0128 | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DW vs ISO7810FDWWR |
| ISO7810FDWW | Texas Instruments | $3.3893 | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DW vs ISO7810FDWW |
| ISO7810DWWR | Texas Instruments | Check for Price | Highest isolation rating, single-channel, reinforced digital isolator 16-SOIC -55 to 125 | ISO7810DW vs ISO7810DWWR |
ISO7810DW Frequently Asked Questions (FAQ)
-
Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
The thermal shutdown feature is enabled by default, and it will shut down the device when the junction temperature exceeds 150°C. To handle this, ensure proper thermal design and heat sinking, and consider using a thermal monitoring circuit to detect and respond to thermal shutdown events.
-
The maximum cable length supported by the ISO7810DW depends on the specific application and the type of cable used. As a general guideline, Texas Instruments recommends keeping the cable length below 10 meters to ensure reliable operation. However, longer cable lengths may be possible with proper signal conditioning and termination.
-
The ISO7810DW is designed to operate with a 3.3V or 5V supply voltage. While it may be possible to use a non-standard voltage supply, it is not recommended as it may affect the device's performance, reliability, and compliance with industry standards. Consult with Texas Instruments or a qualified engineer for custom voltage supply requirements.
-
Texas Instruments recommends using a common-mode choke and capacitors to filter out EMI. The application note SLUA623 provides a detailed example of an EMI filter circuit that can be used with the ISO7810DW.
