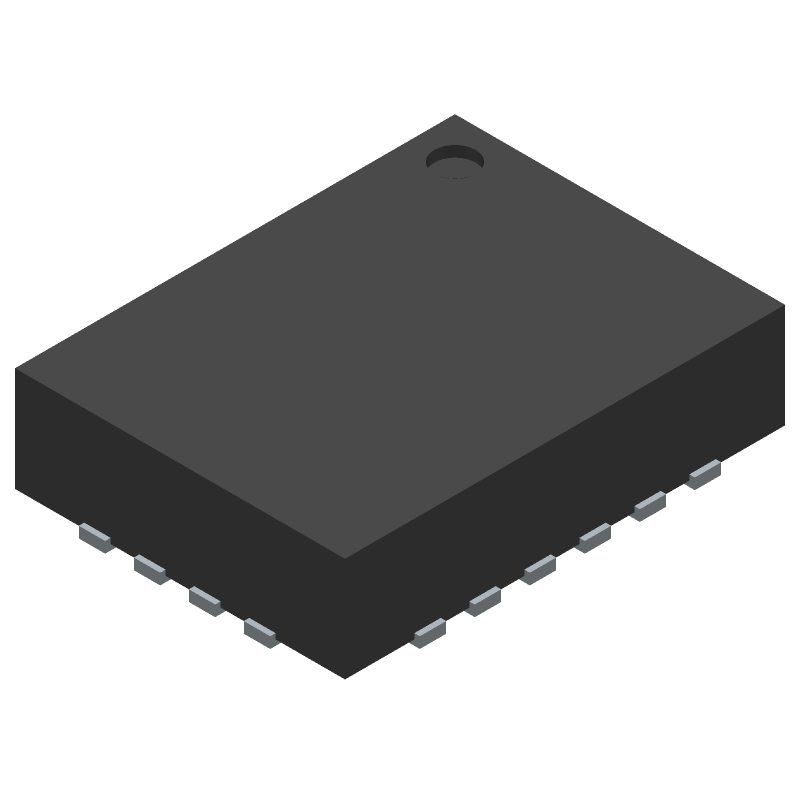

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISL95870BIRZ by Renesas Electronics Corporation
Results Overview of ISL95870BIRZ by Renesas Electronics Corporation
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ISL95870BIRZ Information
ISL95870BIRZ by Renesas Electronics Corporation is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ISL95870BIRZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84AC7097
|
Newark | Dc/Dc Controller, 3.3-25V, 1Mhz, Qfn20, Control Mode:Current Mode Control, Supply Voltage Min:3.3V, Supply Voltage Max:25V, No. Of Outputs:1Outputs, Duty Cycle (%):-, Ic Case/Package:Qfn, No. Of Pins:20Pins, Product Range:- Rohs Compliant: Yes |Renesas ISL95870BIRZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 839 |
|
$2.3700 / $5.8100 | Buy Now |
|
DISTI #
ISL95870BIRZ-ND
|
DigiKey | IC REG CTRLR GPU 1OUT 20QFN Min Qty: 1 Lead time: 18 Weeks Container: Tube |
685 In Stock |
|
$2.5153 / $4.3400 | Buy Now |
|
DISTI #
968-ISL95870BIRZ
|
Mouser Electronics | Switching Controllers 0/2 BIT PWM GPU CONTLR FOR NOTEBOOK RoHS: Compliant | 214 |
|
$2.1800 / $5.8100 | Buy Now |
|
DISTI #
ISL95870BIRZ
|
TME | IC: PMIC, PWM controller, 0.5÷5V, Ch: 1, QFN20, 3.3÷25VDC Min Qty: 1 | 0 |
|
$2.1100 / $4.2400 | RFQ |
|
DISTI #
ISL95870BIRZ
|
IBS Electronics | ISL95870B SERIES 28 V SURFACE MOUNT BUCK PWM CONTROLLER - QFN-20 Min Qty: 750 Package Multiple: 1 | 0 |
|
$2.5870 / $2.6520 | Buy Now |
|
DISTI #
ISL95870BIRZ
|
Avnet Silica | DCDC Controller Synchronous Buck Step Down 33V to 25V Supply 1 Output 1MHz QFN20 (Alt: ISL95870BIRZ) RoHS: Compliant Min Qty: 75 Package Multiple: 75 Lead time: 20 Weeks, 0 Days | Silica - 30450 |
|
Buy Now | |
|
|
LCSC | VFQFN-20-EP DC-DC Converters ROHS | 14 |
|
$2.9827 / $3.1668 | Buy Now |
Part Details for ISL95870BIRZ
ISL95870BIRZ CAD Models
ISL95870BIRZ Part Data Attributes
|
|
ISL95870BIRZ
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL95870BIRZ
Renesas Electronics Corporation
PWM DC/DC Controller with VID Inputs for Portable GPU Core-Voltage Regulator, QFN, /Tube
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | QFN | |
| Pin Count | 20 | |
| Manufacturer Package Code | L20.3X4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Additional Feature | OUTPUT VOLTAGE RANGE: 0.5V TO 5V | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PQCC-N20 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 1000 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
ISL95870BIRZ Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the switching components close to the IC, and use short, wide traces for the power lines. Avoid routing sensitive analog signals near the switching components.
-
The compensation network can be optimized by using the datasheet's recommended values as a starting point and then adjusting the values based on the specific application's requirements. A network analyzer or a Bode plot can be used to measure the loop gain and adjust the compensation network for optimal stability and transient response.
-
The ISL95870BIRZ can handle input voltages up to 25V, but the maximum recommended input voltage is 20V to ensure reliable operation and to prevent damage to the IC.
-
Ensure good airflow around the IC, use a heat sink if necessary, and keep the IC away from other heat sources. Monitor the IC's temperature using the thermal monitoring pin (TMP) and adjust the system design accordingly to prevent overheating.
-
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed close to the IC's input pins to minimize noise and ensure stable operation.
