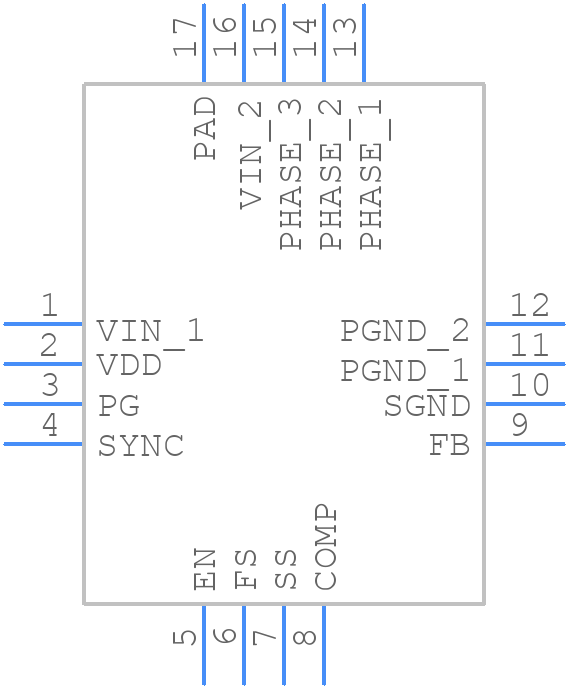

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISL8025AIRTAJZ by Renesas Electronics Corporation
Results Overview of ISL8025AIRTAJZ by Renesas Electronics Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ISL8025AIRTAJZ Information
ISL8025AIRTAJZ by Renesas Electronics Corporation is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ISL8025AIRTAJZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ISL8025AIRTAJZ-ND
|
DigiKey | IC REG BUCK ADJ 5A 16TQFN Min Qty: 1 Lead time: 18 Weeks Container: Tray | Temporarily Out of Stock |
|
$1.2407 / $2.4400 | Buy Now |
|
DISTI #
ISL8025AIRTAJZ
|
Avnet Americas | Conv DC-DC Single Step Down 2.7V to 5.5V 16-Pin TQFN - Trays (Alt: ISL8025AIRTAJZ) RoHS: Compliant Min Qty: 1470 Package Multiple: 490 Lead time: 18 Weeks, 0 Days Container: Tray | 0 |
|
$1.4600 | Buy Now |
|
DISTI #
968-ISL8025AIRTAJZ
|
Mouser Electronics | Switching Voltage Regulators 5A/2MHz, Adj Vout Low Q Synch RoHS: Compliant | 0 |
|
$1.2400 / $2.4400 | Order Now |
|
DISTI #
ISL8025AIRTAJZ
|
Avnet Silica | Conv DCDC Single Step Down 27V to 55V 16Pin TQFN (Alt: ISL8025AIRTAJZ) RoHS: Compliant Min Qty: 490 Package Multiple: 490 Lead time: 20 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for ISL8025AIRTAJZ
ISL8025AIRTAJZ CAD Models
ISL8025AIRTAJZ Part Data Attributes
|
|
ISL8025AIRTAJZ
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL8025AIRTAJZ
Renesas Electronics Corporation
Compact Synchronous Buck Regulator, TQFN, /Tube
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | TQFN | |
| Pin Count | 16 | |
| Manufacturer Package Code | L16.3X3D | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 18 Weeks | |
| Date Of Intro | 2018-07-18 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.7 V | |
| Input Voltage-Nom | 3.6 V | |
| JESD-30 Code | R-PQCC-N16 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 9 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 4200 kHz | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
