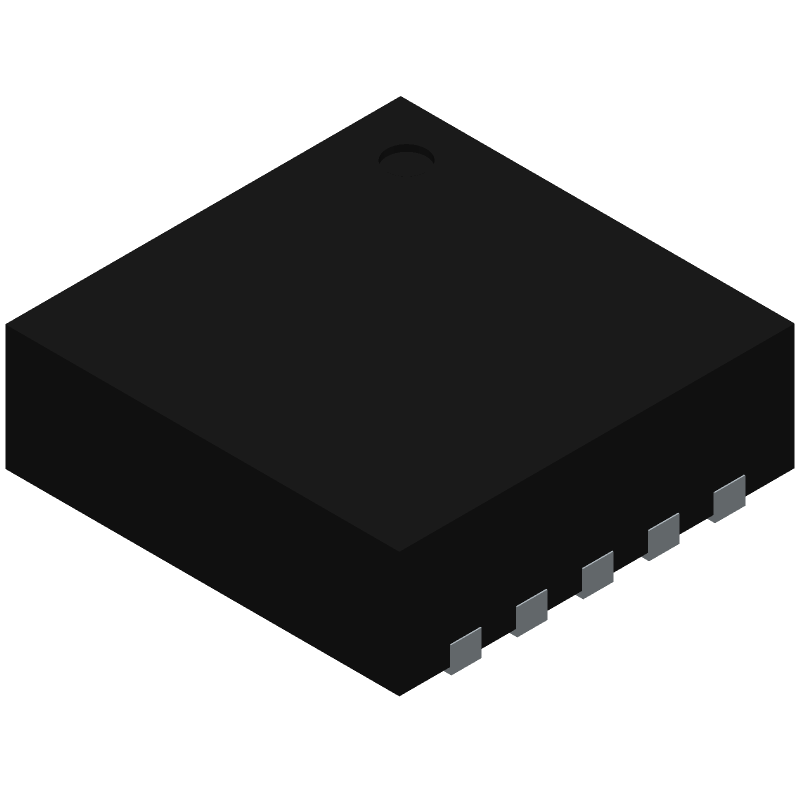

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISL80113IRAJZ-T7A by Renesas Electronics Corporation
Results Overview of ISL80113IRAJZ-T7A by Renesas Electronics Corporation
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ISL80113IRAJZ-T7A Information
ISL80113IRAJZ-T7A by Renesas Electronics Corporation is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ISL80113IRAJZ-T7A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
46W7362
|
Newark | Single 3A Adjustable Vout Ldo - 3X3 10Ld Dfn Pb-Free W/Annea/Tape & Reel Rohs Compliant: Yes |Renesas ISL80113IRAJZ-T7A RoHS: Compliant Min Qty: 250 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
82Y6738
|
Newark | Ldo, Adj, 3A, 0.8V To 3.3V, Dfn-10, Output Type:Adjustable, Input Voltage Min:1V, Input Voltage Max:3.6V, Fixed Output Voltage Nom.:-, Adjustable Output Voltage Min:800Mv, Adjustable Output Voltage Max:3.3V, Output Current:3A, Rohs Compliant: Yes |Renesas ISL80113IRAJZ-T7A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
ISL80113IRAJZ-T7ACT-ND
|
DigiKey | IC REG LINEAR POS ADJ 3A 10DFN Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
102 In Stock |
|
$2.1851 / $3.5100 | Buy Now |
|
|
Bristol Electronics | 1148 |
|
RFQ | ||
|
|
Quest Components | 918 |
|
$7.5204 / $11.2806 | Buy Now | |
|
|
Quest Components | 14 |
|
$8.3560 / $12.5340 | Buy Now |
Part Details for ISL80113IRAJZ-T7A
ISL80113IRAJZ-T7A CAD Models
ISL80113IRAJZ-T7A Part Data Attributes
|
|
ISL80113IRAJZ-T7A
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL80113IRAJZ-T7A
Renesas Electronics Corporation
Ultra Low Dropout 3A Low Input Voltage NMOS LDOs, DFN, /Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | DFN | |
| Pin Count | 10 | |
| Manufacturer Package Code | L10.3X3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2017-10-20 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Adjustability | ADJUSTABLE | |
| Dropout Voltage1-Max | 0.14 V | |
| Dropout Voltage1-Nom | 0.075 V | |
| JESD-30 Code | S-PDSO-N10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Line Regulation-Max (%/V) | 0.2571 | |
| Load Regulation-Max(%) | 0.4% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 3 A | |
| Output Voltage1-Max | 3.3 V | |
| Output Voltage1-Min | 0.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC10,.12,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for ISL80113IRAJZ-T7A
This table gives cross-reference parts and alternative options found for ISL80113IRAJZ-T7A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISL80113IRAJZ-T7A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISL80113IRAJZ | Renesas Electronics Corporation | $1.3148 | Ultra Low Dropout 3A Low Input Voltage NMOS LDOs, DFN, /Tube | ISL80113IRAJZ-T7A vs ISL80113IRAJZ |
| TPS74401RGWR | Texas Instruments | $2.7017 | 3-A, low-VIN (0.8-V), low-noise, high-PSRR, adjustable ultra-low-dropout voltage regulator 20-VQFN -40 to 125 | ISL80113IRAJZ-T7A vs TPS74401RGWR |
| TPS74401RGWT | Texas Instruments | $9.2871 | 3-A, low-VIN (0.8-V), low-noise, high-PSRR, adjustable ultra-low-dropout voltage regulator 20-VQFN -40 to 125 | ISL80113IRAJZ-T7A vs TPS74401RGWT |
| ISL80113IRAJZ-T13 | Renesas Electronics Corporation | Check for Price | Adjustable Positive LDO Regulator | ISL80113IRAJZ-T7A vs ISL80113IRAJZ-T13 |
| ISL80113IRAJZ-T7 | Renesas Electronics Corporation | Check for Price | Adjustable Positive LDO Regulator | ISL80113IRAJZ-T7A vs ISL80113IRAJZ-T7 |
| ISL80113IRAJZ-T | Renesas Electronics Corporation | Check for Price | Ultra Low Dropout 3A Low Input Voltage NMOS LDOs, DFN, /Reel | ISL80113IRAJZ-T7A vs ISL80113IRAJZ-T |
| TPS74401RGWRG4 | Texas Instruments | Check for Price | 3-A, low-VIN (0.8-V), low-noise, high-PSRR, adjustable ultra-low-dropout voltage regulator 20-VQFN -40 to 125 | ISL80113IRAJZ-T7A vs TPS74401RGWRG4 |
| NCV59744MNADJTBG | onsemi | Check for Price | LDO Regulator, 3 A, Ultra-Low Dropout, High PSRR, Low Noise, QFN-20, 3000-REEL, Automotive Qualified | ISL80113IRAJZ-T7A vs NCV59744MNADJTBG |
ISL80113IRAJZ-T7A Frequently Asked Questions (FAQ)
-
A good PCB layout for the ISL80113IRAJZ-T7A involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to keep the equivalent series resistance (ESR) of the output capacitor below 1 ohm. Additionally, the output voltage should be decoupled with a 10nF capacitor.
-
The maximum ambient temperature range for the ISL80113IRAJZ-T7A is -40°C to +125°C. However, the device can operate up to 150°C junction temperature.
-
Yes, the ISL80113IRAJZ-T7A is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it is recommended to follow the recommended operating conditions and to perform thorough testing and validation for the specific application.
-
The power dissipation of the ISL80113IRAJZ-T7A can be calculated using the following formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
