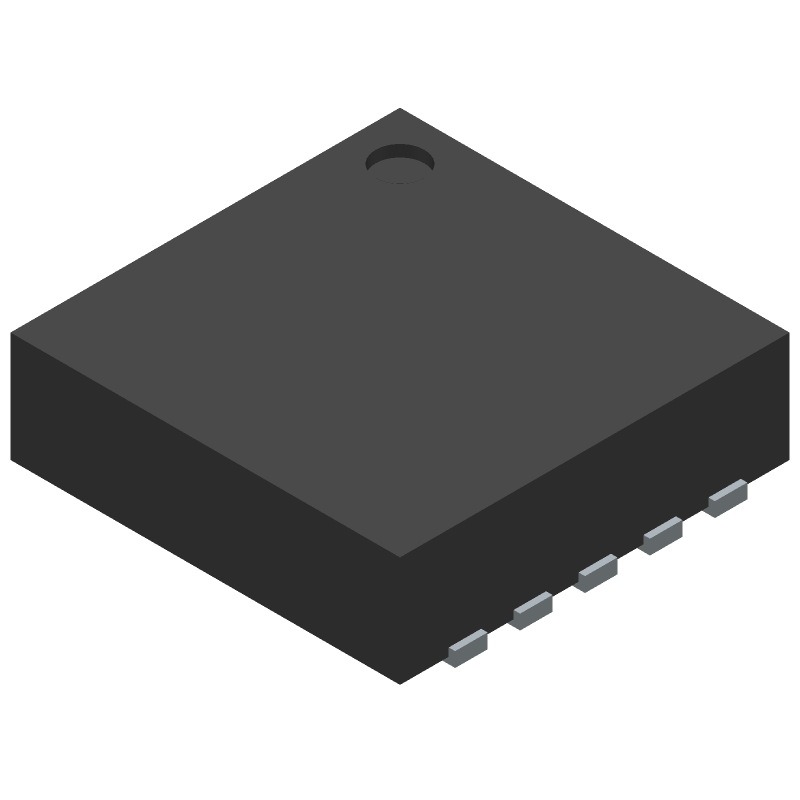

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISL78302AARMMZ by Renesas Electronics Corporation
Results Overview of ISL78302AARMMZ by Renesas Electronics Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
ISL78302AARMMZ Information
ISL78302AARMMZ by Renesas Electronics Corporation is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ISL78302AARMMZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ISL78302AARMMZ-ND
|
DigiKey | IC REG LINEAR 3/3V 300MA 10DFN Min Qty: 1 Lead time: 18 Weeks Container: Tray |
1500 In Stock |
|
$0.8500 / $2.9500 | Buy Now |
|
DISTI #
ISL78302AARMMZ
|
Avnet Americas | - Rail/Tube (Alt: ISL78302AARMMZ) RoHS: Compliant Min Qty: 1500 Package Multiple: 100 Lead time: 18 Weeks, 0 Days Container: Tube | 0 |
|
$1.6300 | Buy Now |
|
DISTI #
968-ISL78302AARMMZ
|
Mouser Electronics | LDO Voltage Regulators High PSRR LDO IC Automotive Low Noise RoHS: Compliant | 0 |
|
$0.8500 | Order Now |
|
DISTI #
ISL78302AARMMZ
|
Avnet Silica | (Alt: ISL78302AARMMZ) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 20 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for ISL78302AARMMZ
ISL78302AARMMZ CAD Models
ISL78302AARMMZ Part Data Attributes
|
|
ISL78302AARMMZ
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL78302AARMMZ
Renesas Electronics Corporation
Dual LDO with Low Noise, Very High PSRR and Low IQ, DFN, /Tube
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | DFN | |
| Package Description | DFN-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | L10.3X3C | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 18 Weeks | |
| Date Of Intro | 2017-10-25 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 0.5 V | |
| Input Voltage-Max | 6.5 V | |
| Input Voltage-Min | 3.5 V | |
| JESD-30 Code | S-PDSO-N10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 10 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.3 A | |
| Output Current2-Max | 0.3 A | |
| Output Voltage1-Max | 3.054 V | |
| Output Voltage1-Min | 2.946 V | |
| Output Voltage1-Nom | 3 V | |
| Output Voltage2-Max | 3.054 V | |
| Output Voltage2-Min | 2.946 V | |
| Output Voltage2-Nom | 3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC10,.11,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 0.9 mm | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
