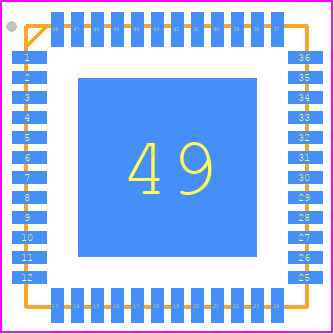

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISL6336ACRZ by Renesas Electronics Corporation
Results Overview of ISL6336ACRZ by Renesas Electronics Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
Aerospace and Defense
Energy and Power Systems
Telecommunications
ISL6336ACRZ Information
ISL6336ACRZ by Renesas Electronics Corporation is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ISL6336ACRZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86109654
|
Verical | Current Mode PWM Controller 0.5V to 1.6V 200A 80kHz to 1000kHz 48-Pin QFN EP Tube Min Qty: 91 Package Multiple: 1 Date Code: 1801 | Americas - 2021 |
|
$3.3125 / $4.1375 | Buy Now |
|
|
Rochester Electronics | 6-Phase PWM Controller With Light Load Efficiency Enhancement And Current Monitoring RoHS: Compliant Status: Obsolete Min Qty: 1 | 2021 |
|
$2.6500 / $3.3100 | Buy Now |
Part Details for ISL6336ACRZ
ISL6336ACRZ CAD Models
ISL6336ACRZ Part Data Attributes
|
|
ISL6336ACRZ
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL6336ACRZ
Renesas Electronics Corporation
6-Phase PWM Controller with Light Load Efficiency Enhancement and Current Monitoring, QFN, /Tube
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | QFN | |
| Package Description | QFN-48 | |
| Pin Count | 48 | |
| Manufacturer Package Code | L48.7X7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 5.25 V | |
| Input Voltage-Min | 4.75 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | S-PQCC-N48 | |
| JESD-609 Code | e3 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 1000 kHz | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 mm |
ISL6336ACRZ Frequently Asked Questions (FAQ)
-
The recommended PCB layout for the ISL6336ACRZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
-
The selection of external components for the ISL6336ACRZ depends on the specific application requirements, such as output voltage, output current, and switching frequency. Renesas provides a component selection guide in the datasheet, and online tools such as the PowerCompass tool can also be used to select the optimal components.
-
The maximum junction temperature for the ISL6336ACRZ is 150°C. However, it's recommended to operate the device at a lower temperature to ensure reliability and to prevent thermal shutdown.
-
The ISL6336ACRZ has a built-in overcurrent protection feature that can be enabled by connecting a resistor from the OC pin to the GND pin. The value of the resistor determines the overcurrent threshold. Additionally, the device also has a hiccup mode that can be enabled to prevent damage from repeated overcurrent events.
-
Yes, the ISL6336ACRZ can be used in a synchronous rectification configuration to improve efficiency. The device has a dedicated pin for synchronous rectification, and the datasheet provides guidelines for implementing this configuration.
