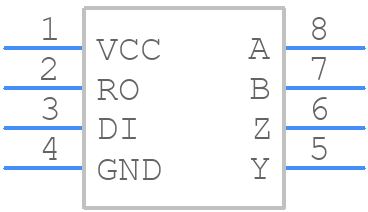

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISL3171EIBZ-T by Renesas Electronics Corporation
Results Overview of ISL3171EIBZ-T by Renesas Electronics Corporation
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
ISL3171EIBZ-T Information
ISL3171EIBZ-T by Renesas Electronics Corporation is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ISL3171EIBZ-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
20-ISL3171EIBZ-TCT-ND
|
DigiKey | IC TRANSCEIVER FULL 1/1 8SOIC Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
4270 In Stock |
|
$0.9250 / $3.1300 | Buy Now |
|
DISTI #
ISL3171EIBZ-T
|
Avnet Americas | - Tape and Reel (Alt: ISL3171EIBZ-T) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$1.7400 | Buy Now |
|
DISTI #
968-ISL3171EIBZ-T
|
Mouser Electronics | RS-422/RS-485 Interface IC 8LD IEC6100-ESD 3V RS-485 FL DUPLX 11 RoHS: Compliant | 2997 |
|
$0.9250 / $2.3700 | Buy Now |
|
DISTI #
87728883
|
Verical | Single Transmitter/Receiver RS-422/RS-485 8-Pin SOIC N T/R Min Qty: 29 Package Multiple: 1 Date Code: 2340 | Americas - 2500 |
|
$0.8680 / $1.9000 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 163 |
|
RFQ | |
|
DISTI #
ISL3171EIBZ-T
|
Avnet Silica | (Alt: ISL3171EIBZ-T) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
ISL3171EIBZ-T
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2500 |
|
$0.8680 / $2.4900 | Buy Now |
Part Details for ISL3171EIBZ-T
ISL3171EIBZ-T CAD Models
ISL3171EIBZ-T Part Data Attributes
|
|
ISL3171EIBZ-T
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL3171EIBZ-T
Renesas Electronics Corporation
±15kV ESD Protected, 3.3V, Full Fail-Safe, Low Power, High Speed or Slew Rate Limited, RS-485/RS-422 Transceivers, SOICN, /Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | SOICN | |
| Pin Count | 8 | |
| Manufacturer Package Code | M8.15 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Differential Output | YES | |
| Driver Number of Bits | 1 | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-422; EIA-485 | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Receive Delay-Max | 120 ns | |
| Receiver Number of Bits | 1 | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 1500 ns | |
| Width | 3.9 mm |
Alternate Parts for ISL3171EIBZ-T
This table gives cross-reference parts and alternative options found for ISL3171EIBZ-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISL3171EIBZ-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISL3171EIBZ | Renesas Electronics Corporation | $1.0829 | ±15kV ESD Protected, 3.3V, Full Fail-Safe, Low Power, High Speed or Slew Rate Limited, RS-485/RS-422 Transceivers, SOICN, /Tube | ISL3171EIBZ-T vs ISL3171EIBZ |
| ISL3171EIBZ-T | Intersil Corporation | Check for Price | ±15kV ESD Protected, 3.3V, Full-duplex, 250kbps RS-485/RS-422 Transceiver; MSOP8, SOIC8; Temp Range: -40° to 85°C | ISL3171EIBZ-T vs ISL3171EIBZ-T |
| ISL3171EIBZ | Intersil Corporation | Check for Price | ±15kV ESD Protected, 3.3V, Full-duplex, 250kbps RS-485/RS-422 Transceiver; MSOP8, SOIC8; Temp Range: -40° to 85°C | ISL3171EIBZ-T vs ISL3171EIBZ |
ISL3171EIBZ-T Frequently Asked Questions (FAQ)
-
A good PCB layout for the ISL3171EIBZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to minimize the length of the traces connected to the RX and TX pins.
-
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range (-40°C to +125°C).
-
Operating the ISL3171EIBZ-T at a lower supply voltage than the recommended 3.3V may result in reduced performance, increased power consumption, and potential reliability issues. Operating at a higher supply voltage may cause the device to exceed its maximum ratings, leading to permanent damage. It's recommended to operate the device within the specified supply voltage range (2.7V to 3.6V) for optimal performance and reliability.
-
To troubleshoot issues with the UART interface, start by verifying the device's configuration and settings. Check the baud rate, data bits, parity, and stop bits to ensure they match the requirements of the connected device. Use a logic analyzer or oscilloscope to monitor the UART signals and identify any errors or anomalies. Additionally, ensure that the device is properly powered and that the UART pins are not overloaded or short-circuited.
-
The ISL3171EIBZ-T has built-in ESD protection on all pins, which can withstand electrostatic discharges up to ±8kV according to the IEC 61000-4-2 standard. To prevent latch-up, it's recommended to follow proper PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding parallel signal paths. Additionally, ensure that the device is operated within its specified voltage and current ratings.
