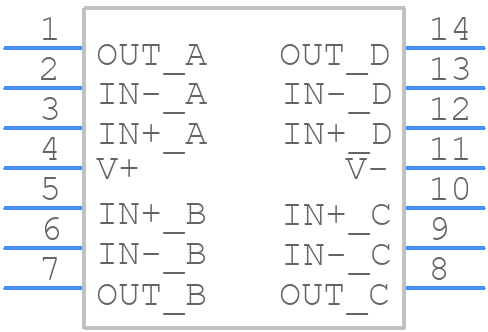

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISL28430FVZ-T7A by Renesas Electronics Corporation
Results Overview of ISL28430FVZ-T7A by Renesas Electronics Corporation
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ISL28430FVZ-T7A Information
ISL28430FVZ-T7A by Renesas Electronics Corporation is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Part Details for ISL28430FVZ-T7A
ISL28430FVZ-T7A CAD Models
ISL28430FVZ-T7A Part Data Attributes
|
|
ISL28430FVZ-T7A
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL28430FVZ-T7A
Renesas Electronics Corporation
Quad Micropower, Low Drift, RRIO Operational Amplifier, TSSOP, /Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | TSSOP | |
| Pin Count | 14 | |
| Manufacturer Package Code | MDP0044 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 55 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Low-Bias | YES | |
| Low-Offset | YES | |
| Micropower | YES | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TAPE AND REEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Supply Current-Max | 0.14 mA | |
| Supply Voltage Limit-Max | 3.25 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.635 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Wideband | NO |
Alternate Parts for ISL28430FVZ-T7A
This table gives cross-reference parts and alternative options found for ISL28430FVZ-T7A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISL28430FVZ-T7A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| OPA4330AIPWR | Texas Instruments | $1.9944 | Quad, 1.8-V, 35-µA, micropower, precision, zero drift CMOS op amp 14-TSSOP -40 to 125 | ISL28430FVZ-T7A vs OPA4330AIPWR |
| AD8604ARUZ-REEL | Analog Devices Inc | $2.4663 | DigiTrim™ RRIO Quad Op Amp with Very Low Offset Voltage | ISL28430FVZ-T7A vs AD8604ARUZ-REEL |
| ISL28430FVZ | Renesas Electronics Corporation | Check for Price | Quad Micropower, Low Drift, RRIO Operational Amplifier, TSSOP, /Tube | ISL28430FVZ-T7A vs ISL28430FVZ |
| ISL28430FVZ-T7 | Renesas Electronics Corporation | Check for Price | Quad Micropower, Low Drift, RRIO Operational Amplifier, TSSOP, /Reel | ISL28430FVZ-T7A vs ISL28430FVZ-T7 |
| ISL28430FVZT | Renesas Electronics Corporation | Check for Price | Operational Amplifier, 4 Func, 55uV Offset-Max, PDSO14 | ISL28430FVZ-T7A vs ISL28430FVZT |
| ISL28430CVZ-T7A | Intersil Corporation | Check for Price | Quad Micropower, Low Drift, RRIO Operational Amplifier; SOIC14, TSSOP14; Temp Range: See Datasheet | ISL28430FVZ-T7A vs ISL28430CVZ-T7A |
| AD8604ARU | Analog Devices Inc | Check for Price | IC QUAD OP-AMP, 2400 uV OFFSET-MAX, 8.2 MHz BAND WIDTH, PDSO14, MO-153AB-1, TSSOP-14, Operational Amplifier | ISL28430FVZ-T7A vs AD8604ARU |
| ISL28430CVZ-T7A | Renesas Electronics Corporation | Check for Price | Quad Micropower, Low Drift, RRIO Operational Amplifier, TSSOP, /Reel | ISL28430FVZ-T7A vs ISL28430CVZ-T7A |
| ISL28430CVZ | Intersil Corporation | Check for Price | Quad Micropower, Low Drift, RRIO Operational Amplifier; SOIC14, TSSOP14; Temp Range: See Datasheet | ISL28430FVZ-T7A vs ISL28430CVZ |
| ISL28430CVZ-T13 | Intersil Corporation | Check for Price | Quad Micropower, Low Drift, RRIO Operational Amplifier; SOIC14, TSSOP14; Temp Range: See Datasheet | ISL28430FVZ-T7A vs ISL28430CVZ-T13 |
