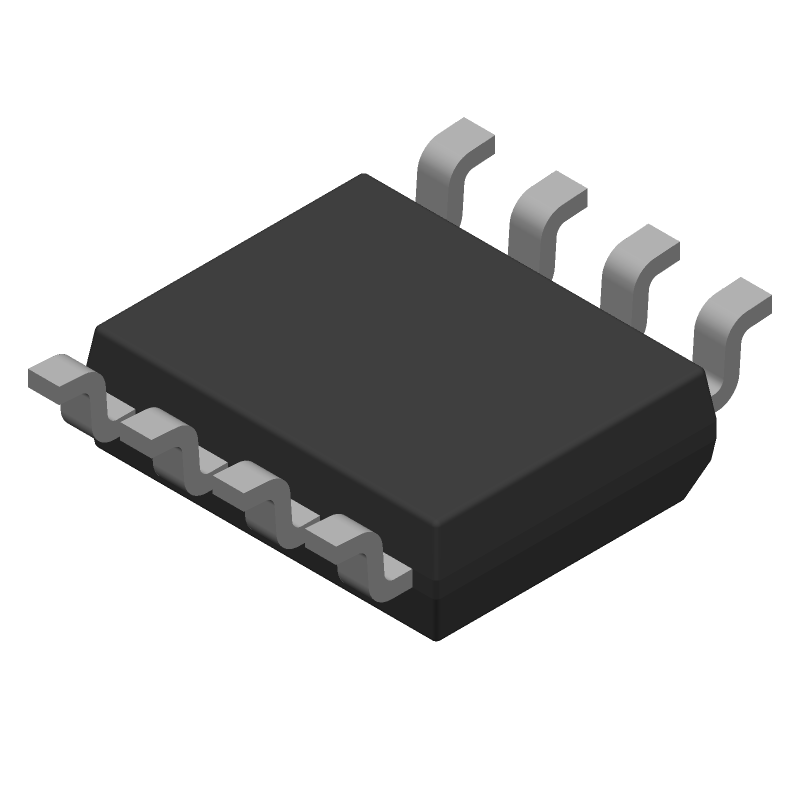

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISL28325FBZ by Renesas Electronics Corporation
Results Overview of ISL28325FBZ by Renesas Electronics Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Renewable Energy
Telecommunications
Automotive
Robotics and Drones
ISL28325FBZ Information
ISL28325FBZ by Renesas Electronics Corporation is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ISL28325FBZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86107946
|
Verical | Op Amp Dual GP R-R I/P ±20V/40V 8-Pin SOIC N Tube Min Qty: 219 Package Multiple: 1 Date Code: 2101 | Americas - 18522 |
|
$1.0633 / $1.7125 | Buy Now |
|
DISTI #
86121333
|
Verical | Op Amp Dual GP R-R I/P ±20V/40V 8-Pin SOIC N Tube Min Qty: 219 Package Multiple: 1 Date Code: 1701 | Americas - 4998 |
|
$1.0633 / $1.7125 | Buy Now |
|
DISTI #
86114732
|
Verical | Op Amp Dual GP R-R I/P ±20V/40V 8-Pin SOIC N Tube Min Qty: 219 Package Multiple: 1 Date Code: 2201 | Americas - 4508 |
|
$1.0633 / $1.7125 | Buy Now |
|
|
Rochester Electronics | 40V Low Power Dual and Quad Operational Amplifier RoHS: Compliant Status: Obsolete Min Qty: 1 | 28028 |
|
$0.8506 / $1.3700 | Buy Now |
Part Details for ISL28325FBZ
ISL28325FBZ CAD Models
ISL28325FBZ Part Data Attributes
|
|
ISL28325FBZ
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL28325FBZ
Renesas Electronics Corporation
40V Low Power Dual and Quad Operational Amplifier, SOICN, /Tube
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | SOICN | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | M8.15E | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.005 µA | |
| Bias Current-Max (IIB) @25C | 0.005 µA | |
| Common-mode Reject Ratio-Min | 80 dB | |
| Common-mode Reject Ratio-Nom | 100 dB | |
| Frequency Compensation | NO | |
| Input Offset Current-Max (IIO) | 0.005 µA | |
| Input Offset Voltage-Max | 1000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 2 | |
| Neg Supply Voltage Limit-Max | -21 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programmable Power | NO | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 0.4 V/us | |
| Supply Current-Max | 1.8 mA | |
| Supply Voltage Limit-Max | 21 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 1200 | |
| Voltage Gain-Min | 100000 | |
| Wideband | NO | |
| Width | 3.9 mm |
ISL28325FBZ Frequently Asked Questions (FAQ)
-
Renesas provides a recommended PCB layout guide in the ISL28325FBZ evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
-
The ISL28325FBZ has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
-
Renesas recommends using a 10uF to 22uF X5R or X7R ceramic capacitor with a voltage rating of 10V or higher as the input capacitor. The capacitor should be placed as close as possible to the VIN pin and have a low ESL (Equivalent Series Inductance) to minimize noise and ensure stable operation.
-
The ISL28325FBZ has a resistive divider network that sets the output voltage. To configure the device for a specific output voltage, calculate the required resistor values using the formula provided in the datasheet and adjust the resistors accordingly. Additionally, ensure that the output voltage is within the recommended range of 0.8V to 5.5V.
-
The ISL28325FBZ has a maximum output current capability of 3A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. Ensure that the device is operated within the recommended operating conditions to avoid overheating and ensure reliable operation.
