ISL28210FBZ Information
ISL28210FBZ by Renesas Electronics Corporation is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ISL28210FBZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
99R4756
|
Newark | Isl28210Fbz Pb-Free Dual Precision Low Noise Jfet Operationa/Tube Rohs Compliant: Yes |Renesas ISL28210FBZ RoHS: Compliant Min Qty: 776 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
ISL28210FBZ-ND
|
DigiKey | IC OPAMP JFET 2 CIRCUIT 8SOIC Min Qty: 1 Lead time: 12 Weeks Container: Tube |
169 In Stock |
|
$2.7254 / $4.9200 | Buy Now |
|
DISTI #
ISL28210FBZ
|
Avnet Americas | OP Amp Dual GP ?20V 8-Pin SOIC N - Rail/Tube (Alt: ISL28210FBZ) RoHS: Compliant Min Qty: 776 Package Multiple: 97 Lead time: 12 Weeks, 0 Days Container: Tube | 0 |
|
$4.5800 | Buy Now |
|
DISTI #
968-ISL28210FBZ
|
Mouser Electronics | Precision Amplifiers ISL28210FBZ DLI LW NOISE JFET OPR RoHS: Compliant | 225 |
|
$2.5100 / $6.4300 | Buy Now |
|
DISTI #
ISL28210FBZ
|
IBS Electronics | ISL28210 SERIES 20 V 12.5 MHZ RAIL TO RAIL SMT OPERATIONAL AMPLIFIER - SOIC-8 Min Qty: 776 Package Multiple: 1 | 0 |
|
$3.0810 | Buy Now |
|
DISTI #
ISL28210FBZ
|
Avnet Silica | OP Amp Dual GP 20V 8Pin SOIC N (Alt: ISL28210FBZ) RoHS: Compliant Min Qty: 97 Package Multiple: 97 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for ISL28210FBZ

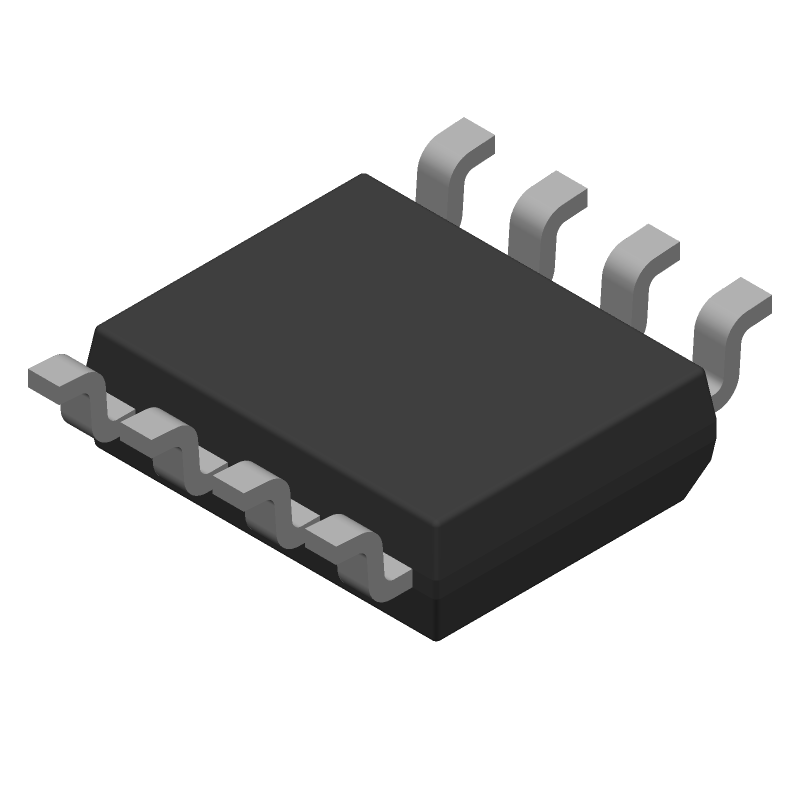

ISL28210FBZ CAD Models
ISL28210FBZ Part Data Attributes
|
|
ISL28210FBZ
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL28210FBZ
Renesas Electronics Corporation
Precision Low Noise JFET Operational Amplifiers, SOICN, /Tube
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | SOICN | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | M8.15E | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.000245 µA | |
| Bias Current-Max (IIB) @25C | 0.000002 µA | |
| Common-mode Reject Ratio-Min | 88 dB | |
| Common-mode Reject Ratio-Nom | 100 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 1300 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 2 | |
| Neg Supply Voltage Limit-Max | -21 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUT LINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 20 V/us | |
| Supply Current-Max | 7.6 mA | |
| Supply Voltage Limit-Max | 21 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 12500 | |
| Voltage Gain-Min | 141253.75 | |
| Wideband | NO | |
| Width | 3.9 mm |
