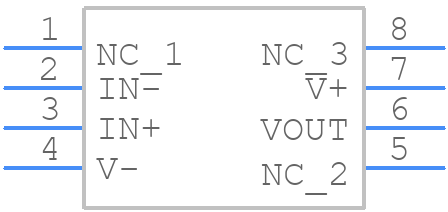

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISL28177FBZ-T7 by Renesas Electronics Corporation
Results Overview of ISL28177FBZ-T7 by Renesas Electronics Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ISL28177FBZ-T7 Information
ISL28177FBZ-T7 by Renesas Electronics Corporation is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ISL28177FBZ-T7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ISL28177FBZ-T7-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT 8SOIC Min Qty: 4000 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.7701 / $0.8317 | Buy Now |
|
DISTI #
ISL28177FBZ-T7
|
Avnet Americas | - Tape and Reel (Alt: ISL28177FBZ-T7) RoHS: Compliant Min Qty: 4000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$1.3900 | Buy Now |
|
DISTI #
968-ISL28177FBZ-T7
|
Mouser Electronics | Precision Amplifiers ISL28177FBZ 40V GEN PURPSE PRCSN OPER RoHS: Compliant | 843 |
|
$0.7930 / $1.4400 | Buy Now |
|
DISTI #
ISL28177FBZ-T7
|
Avnet Silica | (Alt: ISL28177FBZ-T7) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for ISL28177FBZ-T7
ISL28177FBZ-T7 CAD Models
ISL28177FBZ-T7 Part Data Attributes
|
|
ISL28177FBZ-T7
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL28177FBZ-T7
Renesas Electronics Corporation
40V General Purpose Precision Operational Amplifier, SOICN, /Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | SOICN | |
| Pin Count | 8 | |
| Manufacturer Package Code | M8.15E | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Date Of Intro | 2017-11-08 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.001 µA | |
| Bias Current-Max (IIB) @25C | 0.001 µA | |
| Common-mode Reject Ratio-Min | 120 dB | |
| Common-mode Reject Ratio-Nom | 140 dB | |
| Frequency Compensation | NO | |
| Input Offset Current-Max (IIO) | 0.001 µA | |
| Input Offset Voltage-Max | 350 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | NO | |
| Low-Offset | YES | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -22 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.24 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUT LINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 0.2 V/us | |
| Supply Current-Max | 1.7 mA | |
| Supply Voltage Limit-Max | 22 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 600 | |
| Voltage Gain-Min | 1000000 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for ISL28177FBZ-T7
This table gives cross-reference parts and alternative options found for ISL28177FBZ-T7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISL28177FBZ-T7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISL28177FBZ-T13 | Renesas Electronics Corporation | Check for Price | 40V General Purpose Precision Operational Amplifier, SOICN, /Reel | ISL28177FBZ-T7 vs ISL28177FBZ-T13 |
| ISL28177FBZ-T7A | Renesas Electronics Corporation | Check for Price | 40V General Purpose Precision Operational Amplifier, SOICN, /Reel | ISL28177FBZ-T7 vs ISL28177FBZ-T7A |
| ISL28177FBZ-T13 | Intersil Corporation | Check for Price | 40V General Purpose Precision Operational Amplifier; SOIC8; Temp Range: -40° to 125°C | ISL28177FBZ-T7 vs ISL28177FBZ-T13 |
| ISL28177FBZ-T7 | Intersil Corporation | Check for Price | 40V General Purpose Precision Operational Amplifier; SOIC8; Temp Range: -40° to 125°C | ISL28177FBZ-T7 vs ISL28177FBZ-T7 |
| ISL28177FBZ-T | Renesas Electronics Corporation | Check for Price | Operational Amplifier, 1 Func, 350uV Offset-Max, BIPolar, PDSO8 | ISL28177FBZ-T7 vs ISL28177FBZ-T |
ISL28177FBZ-T7 Frequently Asked Questions (FAQ)
-
Renesas provides a recommended PCB layout guide in the application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
-
The selection of input and output capacitors depends on the specific application and frequency range. Renesas recommends using low-ESR capacitors with a value of 10uF to 22uF for input and output decoupling. The application note AN1965 provides more detailed guidance on capacitor selection.
-
The maximum power dissipation of the ISL28177FBZ-T7 is 1.4W, which is limited by the package thermal resistance and the maximum junction temperature. The datasheet provides a power dissipation calculation formula to help designers determine the maximum power dissipation for their specific application.
-
To ensure EMC, Renesas recommends following good PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. The application note AN1965 provides more detailed guidance on EMC considerations.
-
The recommended operating voltage range for the ISL28177FBZ-T7 is 2.7V to 5.5V, although the device can operate down to 2.2V with reduced performance. The datasheet provides more detailed information on the device's electrical characteristics over the recommended operating voltage range.
