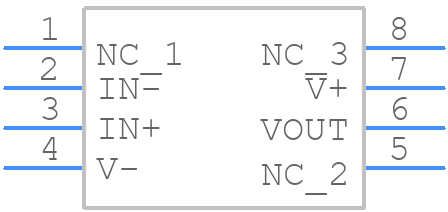

Part Symbol
-
Footprint
-

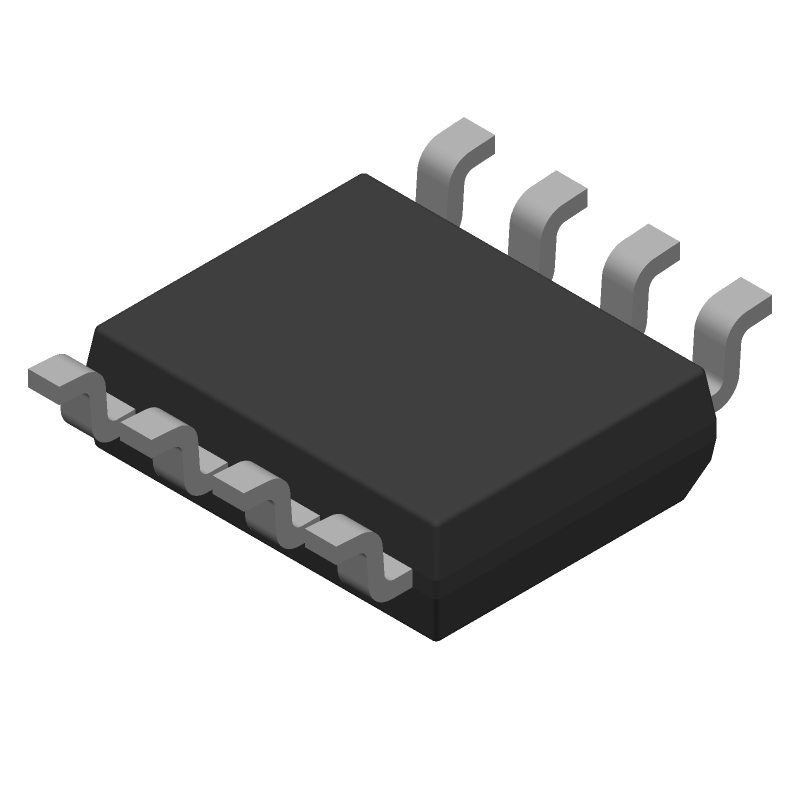

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISL28177FBZ-T13 by Renesas Electronics Corporation
Results Overview of ISL28177FBZ-T13 by Renesas Electronics Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
ISL28177FBZ-T13 Information
ISL28177FBZ-T13 by Renesas Electronics Corporation is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for ISL28177FBZ-T13
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ISL28177FBZ-T13-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT 8SOIC Min Qty: 2500 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.7701 / $0.8317 | Buy Now |
|
DISTI #
ISL28177FBZ-T13
|
Avnet Americas | OP Amp Single GP?20V/40V 8-Pin SOIC T/R - Tape and Reel (Alt: ISL28177FBZ-T13) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel | 105000 Factory Stock |
|
$1.3900 | Buy Now |
|
DISTI #
968-ISL28177FBZ-T13
|
Mouser Electronics | Precision Amplifiers ISL28177FBZ 40V GEN PURPSE PRCSN OPER RoHS: Compliant | 2278 |
|
$0.7930 / $1.4300 | Buy Now |
|
DISTI #
ISL28177FBZ-T13
|
Avnet Silica | OP Amp Single GP20V40V 8Pin SOIC TR (Alt: ISL28177FBZ-T13) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for ISL28177FBZ-T13
ISL28177FBZ-T13 CAD Models
ISL28177FBZ-T13 Part Data Attributes
|
|
ISL28177FBZ-T13
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL28177FBZ-T13
Renesas Electronics Corporation
40V General Purpose Precision Operational Amplifier, SOICN, /Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | SOICN | |
| Pin Count | 8 | |
| Manufacturer Package Code | M8.15E | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Date Of Intro | 2017-11-08 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.001 µA | |
| Bias Current-Max (IIB) @25C | 0.001 µA | |
| Common-mode Reject Ratio-Min | 120 dB | |
| Common-mode Reject Ratio-Nom | 140 dB | |
| Frequency Compensation | NO | |
| Input Offset Current-Max (IIO) | 0.001 µA | |
| Input Offset Voltage-Max | 350 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Low-Bias | NO | |
| Low-Offset | YES | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -22 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.24 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUT LINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 0.2 V/us | |
| Supply Current-Max | 1.7 mA | |
| Supply Voltage Limit-Max | 22 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 600 | |
| Voltage Gain-Min | 1000000 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for ISL28177FBZ-T13
This table gives cross-reference parts and alternative options found for ISL28177FBZ-T13. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISL28177FBZ-T13, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISL28177FBZ-T7A | Renesas Electronics Corporation | Check for Price | 40V General Purpose Precision Operational Amplifier, SOICN, /Reel | ISL28177FBZ-T13 vs ISL28177FBZ-T7A |
| ISL28177FBZ-T13 | Intersil Corporation | Check for Price | 40V General Purpose Precision Operational Amplifier; SOIC8; Temp Range: -40° to 125°C | ISL28177FBZ-T13 vs ISL28177FBZ-T13 |
| ISL28177FBZ-T7 | Renesas Electronics Corporation | Check for Price | 40V General Purpose Precision Operational Amplifier, SOICN, /Reel | ISL28177FBZ-T13 vs ISL28177FBZ-T7 |
| ISL28177FBZ-T7 | Intersil Corporation | Check for Price | 40V General Purpose Precision Operational Amplifier; SOIC8; Temp Range: -40° to 125°C | ISL28177FBZ-T13 vs ISL28177FBZ-T7 |
| ISL28177FBZ-T | Renesas Electronics Corporation | Check for Price | Operational Amplifier, 1 Func, 350uV Offset-Max, BIPolar, PDSO8 | ISL28177FBZ-T13 vs ISL28177FBZ-T |
ISL28177FBZ-T13 Frequently Asked Questions (FAQ)
-
Renesas provides a recommended PCB layout guide in the application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
-
The selection of input and output capacitors depends on the specific application and frequency range. Renesas recommends using low-ESR capacitors with a value of 10nF to 100nF for input and output decoupling. The application note AN1995 provides more detailed guidance on capacitor selection.
-
The maximum power dissipation of the ISL28177FBZ-T13 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to consult the thermal derating curve in the datasheet to determine the maximum power dissipation for a specific application.
-
The ISL28177FBZ-T13 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. Renesas recommends consulting the datasheet and application notes for guidance on using the device in high-temperature environments.
-
To ensure EMC with the ISL28177FBZ-T13, Renesas recommends following good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as necessary. Additionally, the application note AN1995 provides guidance on EMC considerations for the device.
