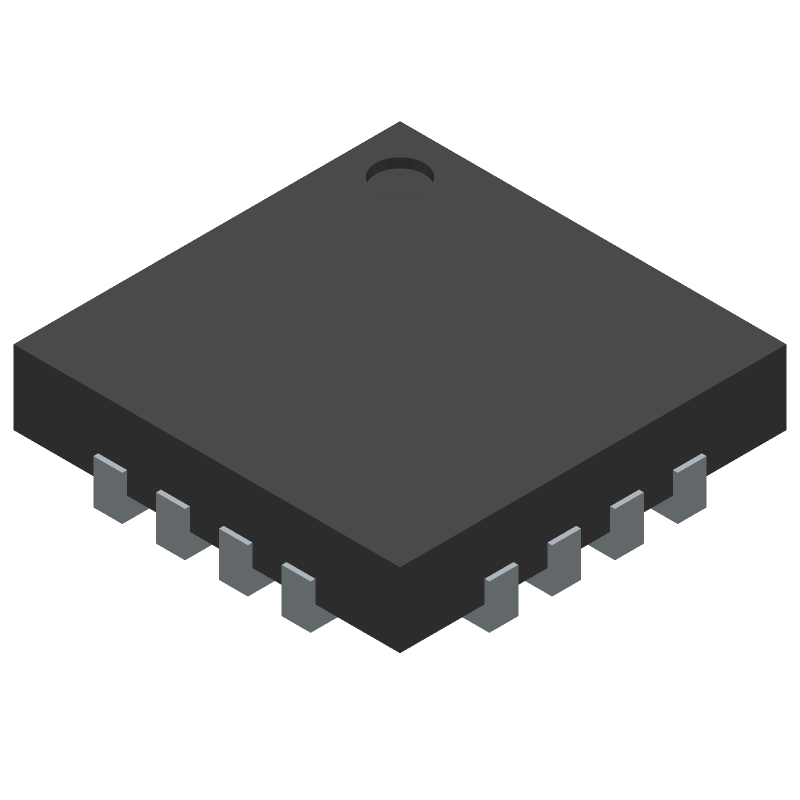

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ISL1550IRZ-T13 by Renesas Electronics Corporation
Results Overview of ISL1550IRZ-T13 by Renesas Electronics Corporation
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
ISL1550IRZ-T13 Information
ISL1550IRZ-T13 by Renesas Electronics Corporation is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Part Details for ISL1550IRZ-T13
ISL1550IRZ-T13 CAD Models
ISL1550IRZ-T13 Part Data Attributes
|
|
ISL1550IRZ-T13
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ISL1550IRZ-T13
Renesas Electronics Corporation
Single Port, VDSL2 Differential Line Driver, QFN, /Reel
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | QFN | |
| Package Description | , | |
| Pin Count | 16 | |
| Manufacturer Package Code | L16.4X4H | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Interface IC Type | LINE DRIVER | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Finish | MATTE TIN | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for ISL1550IRZ-T13
This table gives cross-reference parts and alternative options found for ISL1550IRZ-T13. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ISL1550IRZ-T13, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ISL1550IRZ-T7 | Renesas Electronics Corporation | Check for Price | Single Port, VDSL2 Differential Line Driver, QFN, /Reel | ISL1550IRZ-T13 vs ISL1550IRZ-T7 |
| ISL1550IRZ | Renesas Electronics Corporation | Check for Price | Single Port, VDSL2 Differential Line Driver, QFN, /Tube | ISL1550IRZ-T13 vs ISL1550IRZ |
