Memory / SRAMs / IS64WV102416BLL-10MLA3-TR
Datasheets
IS64WV102416BLL-10MLA3-TR by: Integrated Silicon Solution Inc

SRAM

Part Details for IS64WV102416BLL-10MLA3-TR by Integrated Silicon Solution Inc

Results Overview of IS64WV102416BLL-10MLA3-TR by Integrated Silicon Solution Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

IS64WV102416BLL-10MLA3-TR Information

IS64WV102416BLL-10MLA3-TR by Integrated Silicon Solution Inc is an SRAM.
SRAMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for IS64WV102416BLL-10MLA3-TR

Part # Distributor Description Stock Price Buy
DISTI # 34R4136
Newark 16Mb, high-Speed-Automotive, async,1024K X 16,10Ns,2.4V-3.6V,48 Ball Mbga (9X11 Mm), Rohs, Automotive Temp |Integrated Silicon Solution/issi IS64WV102416BLL-10MLA3-TR RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 400 $20.6500
$20.6500 Buy Now
DISTI # IS64WV102416BLL-10MLA3-TR-ND
DigiKey IC SRAM 16MBIT PAR 48MINIBGA Min Qty: 2000 Lead time: 12 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 2,000 $22.3381
$22.3381 Buy Now
DISTI # IS64WV102416BLL-10MLA3-TR
Avnet Americas SRAM Chip Async Single 3.3V 16M-Bit 1M x 16 10ns 48-Pin Mini-BGA T/R - Tape and Reel (Alt: IS64WV102416BLL-10MLA3-TR) RoHS: Not Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 2,000 $21.8914
  • 4,000 $21.7797
  • 8,000 $21.6680
  • 12,000 $21.5563
  • 16,000 $21.4446
$21.4446 / $21.8914 Buy Now
DISTI # 87064W102416B10MLA3T
Mouser Electronics SRAM 16Mb,High-Speed-Automotive,Async,1024K x 16,10ns,2.4v-3.6v,48 Ball mBGA (9x11 mm), RoHS, Automotive temp RoHS: Compliant 0
  • 2,000 $22.3300
$22.3300 Order Now
DISTI # IS64WV102416BLL-10MLA3-TR
Avnet Silica SRAM Chip Async Single 33V 16MBit 1M x 16 10ns 48Pin MiniBGA TR (Alt: IS64WV102416BLL-10MLA3-TR) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now

Part Details for IS64WV102416BLL-10MLA3-TR

IS64WV102416BLL-10MLA3-TR CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

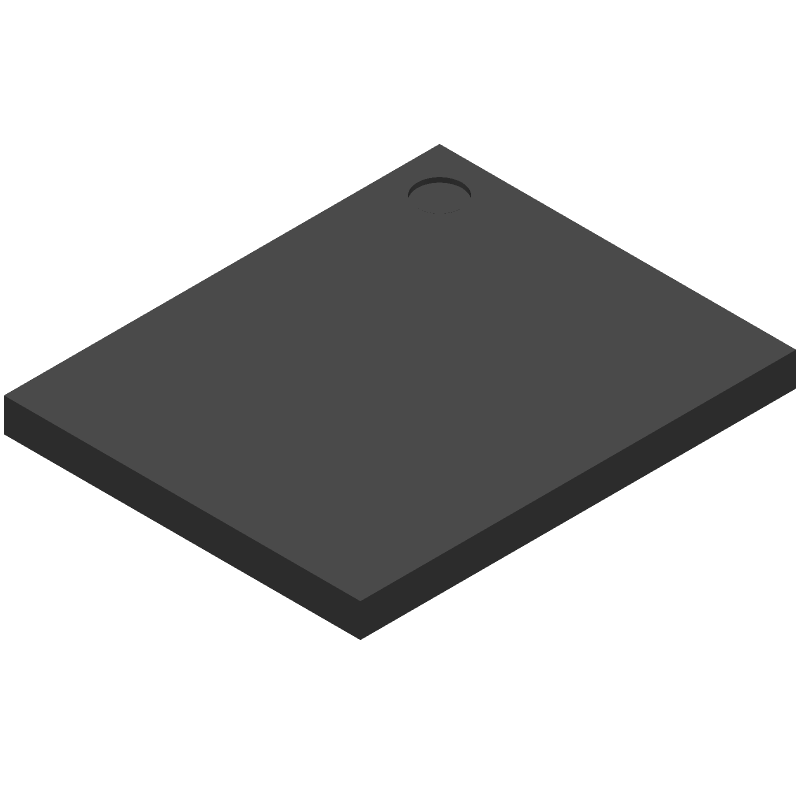

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IS64WV102416BLL-10MLA3-TR Part Data Attributes

Parametric Data
IS64WV102416BLL-10MLA3-TR Integrated Silicon Solution Inc
Buy Now Datasheet
Compare Parts:
IS64WV102416BLL-10MLA3-TR Integrated Silicon Solution Inc SRAM
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer INTEGRATED SILICON SOLUTION INC
Package Description BGA-48
Reach Compliance Code compliant
ECCN Code 3A991.B.2.A
HTS Code 8542.32.00.41
Factory Lead Time 12 Weeks
Samacsys Manufacturer Integrated Silicon Solution Inc.
Access Time-Max 10 ns
I/O Type COMMON
JESD-30 Code R-PBGA-B48
Length 11 mm
Memory Density 16777216 bit
Memory IC Type STANDARD SRAM
Memory Width 16
Number of Functions 1
Number of Ports 1
Number of Terminals 48
Number of Words 1048576 words
Number of Words Code 1000000
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Organization 1MX16
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code TFBGA
Package Equivalence Code BGA48,6X8,30
Package Shape RECTANGULAR
Package Style GRID ARRAY, THIN PROFILE, FINE PITCH
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 260
Screening Level AEC-Q100
Seated Height-Max 1.2 mm
Standby Voltage-Min 2 V
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 2.4 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Form BALL
Terminal Pitch 0.75 mm
Terminal Position BOTTOM
Width 9 mm

Alternate Parts for IS64WV102416BLL-10MLA3-TR

This table gives cross-reference parts and alternative options found for IS64WV102416BLL-10MLA3-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IS64WV102416BLL-10MLA3-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
IS61WV102416EDBLL-10TLI Integrated Silicon Solution Inc $13.2894 Standard SRAM, 1MX16, 10ns, CMOS, PDSO48, 12 X 20 MM, LEAD FREE, TSOP1-48 IS64WV102416BLL-10MLA3-TR vs IS61WV102416EDBLL-10TLI
IS61WV102416EDBLL-10BLI Integrated Silicon Solution Inc $13.5920 Standard SRAM, 1MX16, 10ns, CMOS, PBGA48, 6 X 8 MM, LEAD FREE, MO-207, TFBGA-48 IS64WV102416BLL-10MLA3-TR vs IS61WV102416EDBLL-10BLI
IS64WV102416FBLL-10CTLA3 Integrated Silicon Solution Inc $21.6082 Standard SRAM, 1MX16, 10ns, CMOS, PDSO48, TSOP1-48 IS64WV102416BLL-10MLA3-TR vs IS64WV102416FBLL-10CTLA3
IS61WV102416FBLL-10TLI-TR Integrated Silicon Solution Inc Check for Price Standard SRAM, IS64WV102416BLL-10MLA3-TR vs IS61WV102416FBLL-10TLI-TR
IS61WV102416FBLL-10B4LI Integrated Silicon Solution Inc Check for Price Standard SRAM, 1MX16, 10ns, CMOS, PBGA48, MINIBGA-48 IS64WV102416BLL-10MLA3-TR vs IS61WV102416FBLL-10B4LI
IS61WV102416BBLL-10BLI Integrated Silicon Solution Inc Check for Price Standard SRAM, 1MX16, 10ns, CMOS, PBGA48, 6 X 8 MM, LEAD FREE, MO-207, MINI BGA-48 IS64WV102416BLL-10MLA3-TR vs IS61WV102416BBLL-10BLI
IS64WV102416BBLL-10BAL3 Integrated Silicon Solution Inc Check for Price Standard SRAM, 1MX16, 10ns, CMOS, PBGA48, 6 X 8 MM, LEAD FREE, MO-207, MINI BGA-48 IS64WV102416BLL-10MLA3-TR vs IS64WV102416BBLL-10BAL3
IS61WV102416DBLL-10BI Integrated Silicon Solution Inc Check for Price Standard SRAM, 1MX16, 10ns, CMOS, PBGA48, 6 X 8 MM, MO-207, TFBGA-48 IS64WV102416BLL-10MLA3-TR vs IS61WV102416DBLL-10BI
IS61WV102416DBLL-10TL Integrated Silicon Solution Inc Check for Price Standard SRAM, 1MX16, 10ns, CMOS, PDSO48, 12 X 20 MM, LEAD FREE, TSOP1-48 IS64WV102416BLL-10MLA3-TR vs IS61WV102416DBLL-10TL
IS61WV25616EDBLL-10B2I Integrated Silicon Solution Inc Check for Price Standard SRAM, 1MX16, 10ns, CMOS, PBGA48, 6 X 8 MM, MO-207, TFBGA-48 IS64WV102416BLL-10MLA3-TR vs IS61WV25616EDBLL-10B2I

IS64WV102416BLL-10MLA3-TR Related Parts

IS64WV102416BLL-10MLA3-TR Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the IS64WV102416BLL-10MLA3-TR is -40°C to 85°C.

  • The power-up sequence for the IS64WV102416BLL-10MLA3-TR should follow the recommended sequence in the datasheet, which is VCC, then VIO, and finally CLK. This ensures proper initialization and operation of the device.

  • The recommended PCB layout and routing for the IS64WV102416BLL-10MLA3-TR involves keeping the signal traces short and away from power and ground planes, using a solid ground plane, and placing decoupling capacitors close to the device. Refer to the datasheet and application notes for more detailed guidelines.

  • To troubleshoot issues with the IS64WV102416BLL-10MLA3-TR, start by checking the power supply and clock signals, then verify the device configuration and programming. Use oscilloscopes and logic analyzers to debug signal integrity and timing issues. Refer to the datasheet and application notes for troubleshooting guides and FAQs.

  • The IS64WV102416BLL-10MLA3-TR has built-in ESD protection, but it's still important to follow proper handling and storage procedures to prevent damage. Use anti-static wrist straps, mats, and packaging, and avoid touching the device pins or exposed internal components.
