Memory / SRAMs / IS62WV12816EBLL-45TLI
Datasheets
IS62WV12816EBLL-45TLI by:

Standard SRAM, 128KX16, 45ns, CMOS, PDSO44, 0.400 INCH, LEAD FREE, TSOP2-44

Part Details for IS62WV12816EBLL-45TLI by Integrated Silicon Solution Inc

Results Overview of IS62WV12816EBLL-45TLI by Integrated Silicon Solution Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Computing and Data Storage

IS62WV12816EBLL-45TLI Information

IS62WV12816EBLL-45TLI by Integrated Silicon Solution Inc is an SRAM.
SRAMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for IS62WV12816EBLL-45TLI

Part # Distributor Description Stock Price Buy
DISTI # 52Y2447
Newark 2Mb, Low Power/Power Saver, async,128K X 16,45Ns,2.2V-3.6V,44 Pin Tsop Ii, Rohs |Integrated Silicon Solution/issi IS62WV12816EBLL-45TLI RoHS: Not Compliant Min Qty: 135 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $2.3000
  • 250 $1.9200
  • 500 $1.8700
$1.8700 / $2.3000 Buy Now
DISTI # 706-1506-ND
DigiKey IC SRAM 2MBIT PARALLEL 44TSOP II Min Qty: 540 Lead time: 10 Weeks Container: Tray Temporarily Out of Stock
  • 540 $1.6286
$1.6286 Buy Now
DISTI # IS62WV12816EBLL-45TLI
Avnet Americas SRAM Chip Async Single 2.8V/3.3V 2M-Bit 128K x 16 45ns 44-Pin TSOP-II - Bulk (Alt: IS62WV12816EBLL-45TLI) RoHS: Compliant Min Qty: 540 Package Multiple: 135 Lead time: 10 Weeks, 0 Days Container: Bulk 0
  • 540 $1.3300
  • 810 $1.3000
  • 1,350 $1.2700
  • 2,700 $1.2400
  • 5,400 $1.2100
$1.2100 / $1.3300 Buy Now
DISTI # 870-6212816EBLL45TLI
Mouser Electronics SRAM 2Mb, Low Power/Power Saver,Async,128K x 16,45ns,2.2v-3.6v,44 Pin TSOP II, RoHS RoHS: Compliant 304
  • 1 $2.3000
  • 10 $2.0600
  • 25 $2.0300
  • 100 $1.8600
  • 270 $1.8000
  • 540 $1.6200
$1.6200 / $2.3000 Buy Now
DISTI # 62WV12816EBLL-45TL
TME IC: SRAM memory, 2MbSRAM, 128kx16bit, 2.2÷3.6V, 45ns, TSOP44 II Min Qty: 1 0
  • 1 $2.6100
  • 5 $2.5200
  • 25 $2.2500
$2.2500 / $2.6100 RFQ
DISTI # IS62WV12816EBLL-45TLI
Avnet Silica SRAM Chip Async Single 28V33V 2MBit 128K x 16 45ns 44Pin TSOPII (Alt: IS62WV12816EBLL-45TLI) RoHS: Compliant Min Qty: 135 Package Multiple: 135 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # IS62WV12816EBLL-45TLI
EBV Elektronik SRAM Chip Async Single 28V33V 2MBit 128K x 16 45ns 44Pin TSOPII (Alt: IS62WV12816EBLL-45TLI) RoHS: Compliant Min Qty: 135 Package Multiple: 135 Lead time: 9 Weeks, 0 Days EBV - 0
Buy Now
New Advantage Corporation STD RAM 128Kx16 45NS CMOS RoHS: Compliant Min Qty: 1 Package Multiple: 1 3026
  • 1 $1.7500
$1.7500 Buy Now
Win Source Electronics IC SRAM 2MBIT PARALLEL 44TSOP II 13963
  • 30 $2.2523
  • 65 $1.8480
  • 100 $1.7903
  • 135 $1.7325
  • 175 $1.6748
  • 235 $1.5015
$1.5015 / $2.2523 Buy Now

Part Details for IS62WV12816EBLL-45TLI

IS62WV12816EBLL-45TLI CAD Models

  • Part Symbol

    Part Symbol

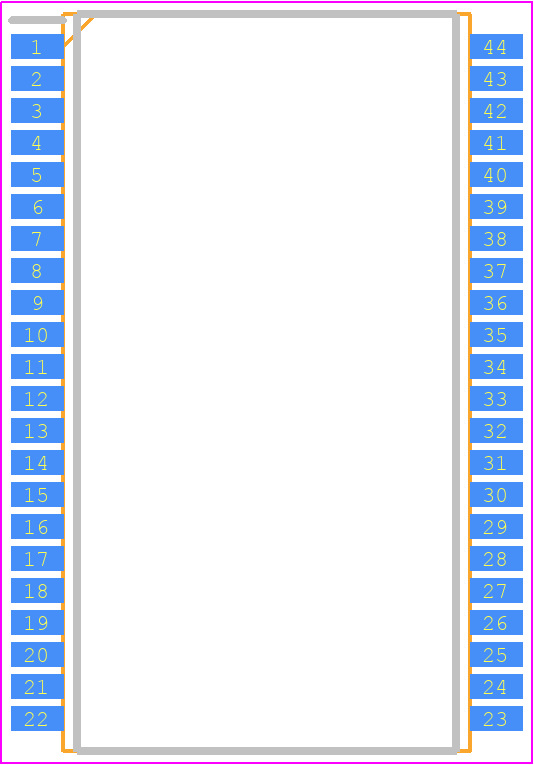

  • Footprint

    footprint

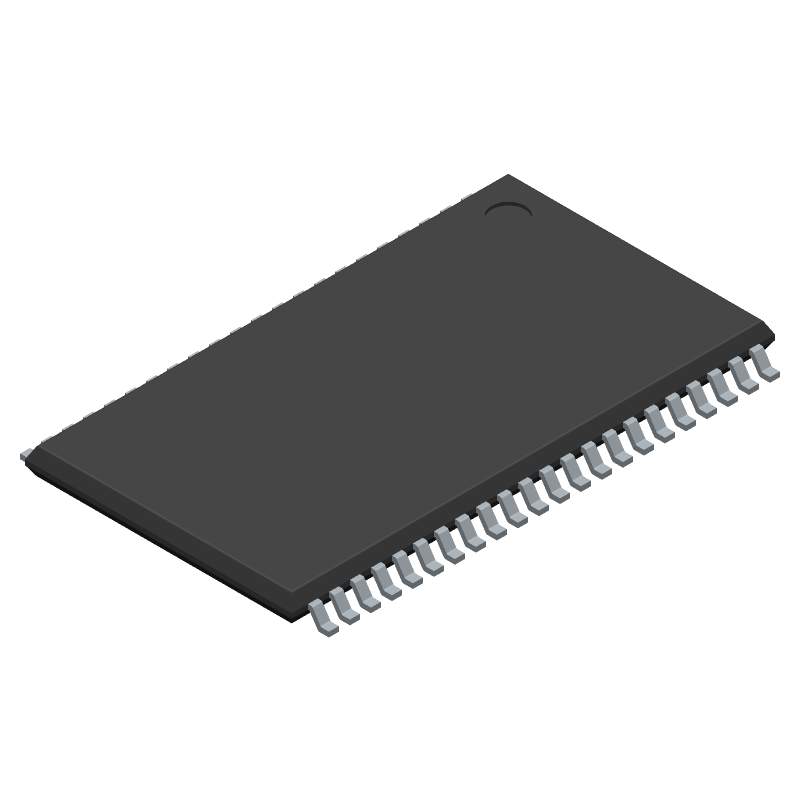

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IS62WV12816EBLL-45TLI Part Data Attributes

Parametric Data
IS62WV12816EBLL-45TLI Integrated Silicon Solution Inc
Buy Now Datasheet
Compare Parts:
IS62WV12816EBLL-45TLI Integrated Silicon Solution Inc Standard SRAM, 128KX16, 45ns, CMOS, PDSO44, 0.400 INCH, LEAD FREE, TSOP2-44
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer INTEGRATED SILICON SOLUTION INC
Package Description 0.400 INCH, LEAD FREE, TSOP2-44
Reach Compliance Code compliant
ECCN Code 3A991.B.2.A
HTS Code 8542.32.00.41
Factory Lead Time 10 Weeks
Samacsys Manufacturer Integrated Silicon Solution Inc.
Access Time-Max 45 ns
JESD-30 Code R-PDSO-G44
Length 18.41 mm
Memory Density 2097152 bit
Memory IC Type STANDARD SRAM
Memory Width 16
Number of Functions 1
Number of Terminals 44
Number of Words 131072 words
Number of Words Code 128000
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 128KX16
Package Body Material PLASTIC/EPOXY
Package Code TSOP2
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 260
Seated Height-Max 1.2 mm
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 2.2 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position DUAL
Width 10.16 mm

Alternate Parts for IS62WV12816EBLL-45TLI

This table gives cross-reference parts and alternative options found for IS62WV12816EBLL-45TLI. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IS62WV12816EBLL-45TLI, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
IS62WV12816EBLL-45BLI Integrated Silicon Solution Inc Check for Price Standard SRAM, 128KX16, 45ns, CMOS, PBGA48, 6 X 8 MM, LEAD FREE, MO-207, MINI BGA-48 IS62WV12816EBLL-45TLI vs IS62WV12816EBLL-45BLI

IS62WV12816EBLL-45TLI Related Parts

IS62WV12816EBLL-45TLI Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the IS62WV12816EBLL-45TLI is -40°C to 85°C.

  • The datasheet recommends a slow power-up sequence to ensure proper initialization of the SRAM. It's also recommended to follow a specific power-down sequence to prevent data loss.

  • The maximum clock frequency supported by the IS62WV12816EBLL-45TLI is 45 MHz.

  • The IS62WV12816EBLL-45TLI is a standard asynchronous SRAM, and can be interfaced with a microcontroller or FPGA using a standard memory interface. The datasheet provides detailed information on the pinout and timing diagrams.

  • The latency of the IS62WV12816EBLL-45TLI is 45 ns.
