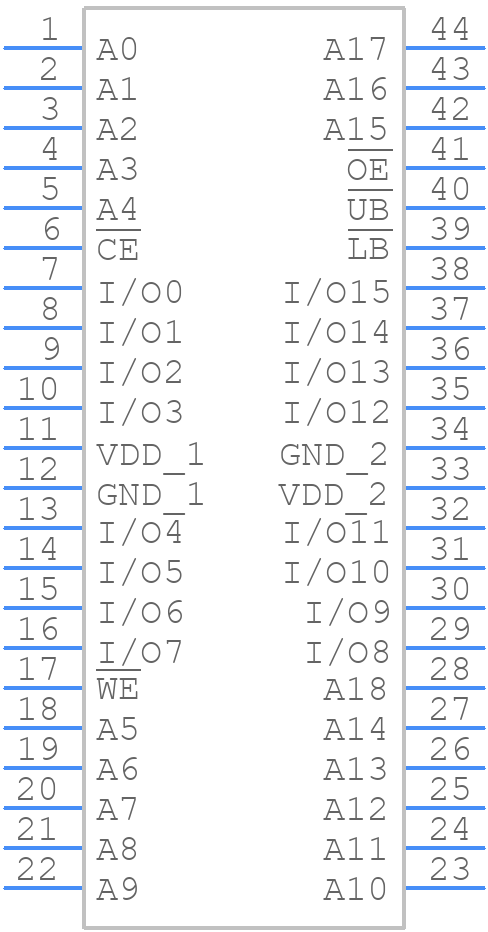

Part Symbol
-

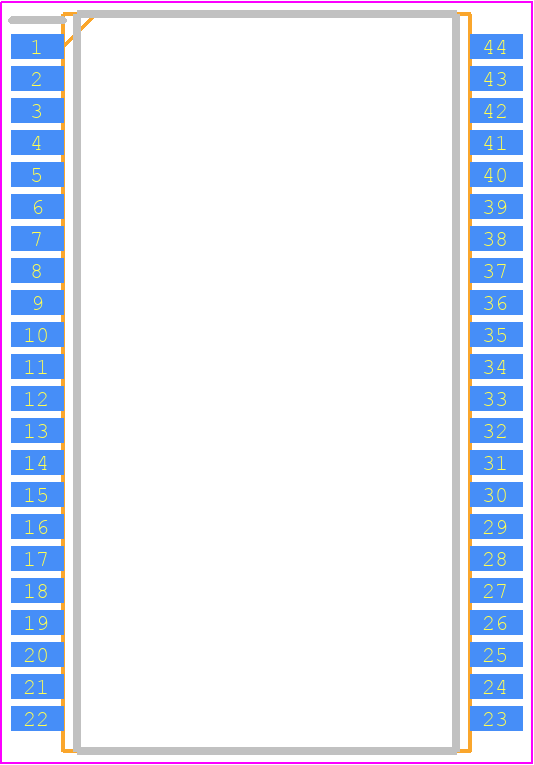

Footprint
-

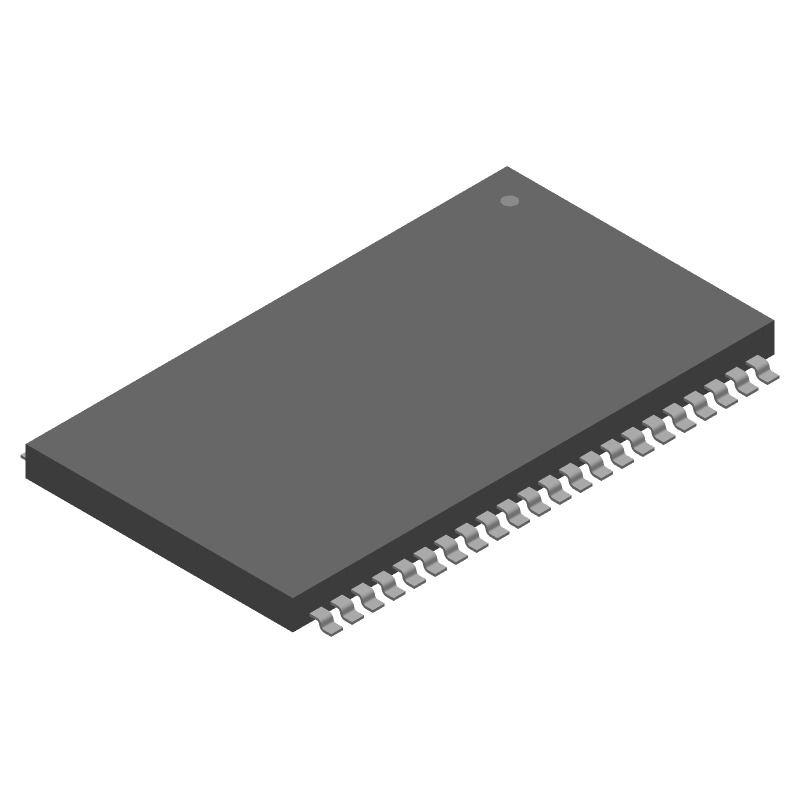

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IS61WV51216EDBLL-10TLI by Integrated Silicon Solution Inc
Results Overview of IS61WV51216EDBLL-10TLI by Integrated Silicon Solution Inc
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
IS61WV51216EDBLL-10TLI Information
IS61WV51216EDBLL-10TLI by Integrated Silicon Solution Inc is an SRAM.
SRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for IS61WV51216EDBLL-10TLI
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29X5489
|
Newark | Sram, 8Mbit, 10Ns, Tsop-Ii-44, Sram Type:Asynchronous Sram, Memory Configuration:512K X 16Bit, Ic Case/Package:Tsop-Ii, No. Of Pins:44Pins, Supply Voltage Min:2.4V, Supply Voltage Max:3.6V, Supply Voltage Nom:3V, Product Range:- Rohs Compliant: Yes |Integrated Silicon Solution/issi IS61WV51216EDBLL-10TLI RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 35 |
|
$9.5300 / $11.5400 | Buy Now |
|
DISTI #
706-1503-ND
|
DigiKey | IC SRAM 8MBIT PARALLEL 44TSOP II Min Qty: 1 Lead time: 10 Weeks Container: Tray |
569 In Stock |
|
$9.0942 / $11.5400 | Buy Now |
|
DISTI #
IS61WV51216EDBLL-10TLI
|
Avnet Americas | SRAM Chip Async Single 3V 8M-Bit 512K x 16 10ns 44-Pin TSOP-II - Bulk (Alt: IS61WV51216EDBLL-10TLI) RoHS: Not Compliant Min Qty: 135 Package Multiple: 135 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$7.2912 / $7.4431 | Buy Now |
|
DISTI #
870-61WV512DBLL10TLI
|
Mouser Electronics | SRAM 8M, 2.4-3.6V, 10ns 512Kx16 Asych SRAM RoHS: Compliant | 1207 |
|
$8.9000 / $11.5400 | Buy Now |
|
|
Bristol Electronics | Min Qty: 1 | 44 |
|
$5.6250 / $9.0000 | Buy Now |
|
|
Bristol Electronics | 30 |
|
RFQ | ||
|
|
Quest Components | 512K X 16 STANDARD SRAM, 10NS, PDSO44 | 35 |
|
$8.1000 / $12.0000 | Buy Now |
|
DISTI #
61WV51216EDBLL0TLI
|
TME | IC: SRAM memory, 8MbSRAM, 512kx16bit, 2.4÷3.6V, 10ns, TSOP44 II Min Qty: 1 | 0 |
|
$11.5000 / $13.3000 | RFQ |
|
DISTI #
IS61WV51216EDBLL-10TLI
|
Avnet Asia | SRAM Chip Async Single 3V 8M-Bit 512K x 16 10ns 44-Pin TSOP-II (Alt: IS61WV51216EDBLL-10TLI) RoHS: Compliant Min Qty: 135 Package Multiple: 135 Lead time: 10 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
IS61WV51216EDBLL-10TLI
|
Avnet Silica | SRAM Chip Async Single 3V 8MBit 512K x 16 10ns 44Pin TSOPII (Alt: IS61WV51216EDBLL-10TLI) RoHS: Compliant Min Qty: 135 Package Multiple: 135 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for IS61WV51216EDBLL-10TLI
IS61WV51216EDBLL-10TLI CAD Models
IS61WV51216EDBLL-10TLI Part Data Attributes
|
|
IS61WV51216EDBLL-10TLI
Integrated Silicon Solution Inc
Buy Now
Datasheet
|
Compare Parts:
IS61WV51216EDBLL-10TLI
Integrated Silicon Solution Inc
Standard SRAM, 512KX16, 10ns, CMOS, PDSO44, 0.400 INCH, LEAD FREE, TSOP2-44
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INTEGRATED SILICON SOLUTION INC | |
| Package Description | TSOP2-44 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.B.2.A | |
| HTS Code | 8542.32.00.41 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Integrated Silicon Solution Inc. | |
| Access Time-Max | 10 ns | |
| I/O Type | COMMON | |
| JESD-30 Code | R-PDSO-G44 | |
| Length | 18.41 mm | |
| Memory Density | 8388608 bit | |
| Memory IC Type | STANDARD SRAM | |
| Memory Width | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 44 | |
| Number of Words | 524288 words | |
| Number of Words Code | 512000 | |
| Operating Mode | ASYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 512KX16 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP2 | |
| Package Equivalence Code | TSOP44,.46,32 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Parallel/Serial | PARALLEL | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Standby Current-Max | 0.015 A | |
| Standby Voltage-Min | 2 V | |
| Supply Current-Max | 0.05 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.4 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | DUAL | |
| Width | 10.16 mm |
Alternate Parts for IS61WV51216EDBLL-10TLI
This table gives cross-reference parts and alternative options found for IS61WV51216EDBLL-10TLI. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IS61WV51216EDBLL-10TLI, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| IS61WV51216EDBLL-10BLI | Integrated Silicon Solution Inc | $10.5223 | Standard SRAM, 512KX16, 10ns, CMOS, PBGA48, 6 X 8 MM, LEAD FREE, MO-207, TFBGA-48 | IS61WV51216EDBLL-10TLI vs IS61WV51216EDBLL-10BLI |
| IS61WV51216EDBLL-10TI | Integrated Silicon Solution Inc | Check for Price | 512K X 16 STANDARD SRAM, 10ns, PDSO44, 0.400 INCH, TSOP2-44 | IS61WV51216EDBLL-10TLI vs IS61WV51216EDBLL-10TI |
IS61WV51216EDBLL-10TLI Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the IS61WVV51216EDBLL-10TLI is -40°C to 85°C.
-
The datasheet recommends a slow power-up sequence to ensure proper initialization of the SRAM. It's also recommended to follow a specific power-down sequence to prevent data loss or corruption.
-
The maximum clock frequency supported by the IS61WV51216EDBLL-10TLI is 10ns, which translates to a clock frequency of 100MHz.
-
The IS61WV51216EDBLL-10TLI is a standard asynchronous SRAM, and can be interfaced with a microcontroller or FPGA using a standard memory interface. The datasheet provides detailed information on the pinout and timing requirements.
-
The latency of the IS61WV51216EDBLL-10TLI is 10ns, which means that it takes 10 clock cycles for the SRAM to respond to a read or write request.
