Memory / SRAMs / IS61WV51216BLL-10TLI-TR
Datasheets
IS61WV51216BLL-10TLI-TR by: Integrated Silicon Solution Inc

Standard SRAM, 512KX16, 10ns, CMOS, PDSO44, LEAD FREE, PLASTIC, TSOP2-44

Part Details for IS61WV51216BLL-10TLI-TR by Integrated Silicon Solution Inc

Results Overview of IS61WV51216BLL-10TLI-TR by Integrated Silicon Solution Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

IS61WV51216BLL-10TLI-TR Information

IS61WV51216BLL-10TLI-TR by Integrated Silicon Solution Inc is an SRAM.
SRAMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for IS61WV51216BLL-10TLI-TR

Part # Distributor Description Stock Price Buy
DISTI # 55M7810
Newark 8Mb, high-Speed, async,512K X 16,8Ns/3.3V, or 10Ns/2.4V-3.6V,44 Pin Tsop Ii, Rohs |Integrated Silicon Solution/issi IS61WV51216BLL-10TLI-TR RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 800 $10.2500
  • 1,200 $9.7600
$9.7600 / $10.2500 Buy Now
DISTI # IS61WV51216BLL-10TLI-TR-ND
DigiKey IC SRAM 8MBIT PARALLEL 44TSOP II Min Qty: 1000 Lead time: 10 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 1,000 $11.3159
$11.3159 Buy Now
DISTI # IS61WV51216BLL-10T
Avnet Americas SRAM Chip Async Single 2.5V/3.3V 8Mbit 512K X 16 10ns 44-Pin TSOP-II T/R - Tape and Reel (Alt: IS61WV51216BLL-10T) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Reel 0
  • 1,000 $9.6760
  • 2,000 $9.5940
  • 4,000 $9.5448
  • 6,000 $9.4956
  • 8,000 $9.4464
$9.4464 / $9.6760 Buy Now
DISTI # 870-61WV51216B10TLIT
Mouser Electronics SRAM 8M (512Kx16) 10ns Async SRAM 3.3v RoHS: Compliant 926
  • 1 $15.9100
  • 10 $14.7300
  • 25 $14.5300
  • 50 $14.3500
  • 100 $12.5700
  • 250 $12.3000
  • 500 $11.7400
  • 1,000 $11.7200
$11.7200 / $15.9100 Buy Now
DISTI # IS61WV51216BLL-10TLI-TR
Avnet Asia SRAM Chip Async Single 2.5V/3.3V 8Mbit 512K X 16 10ns 44-Pin TSOP-II T/R (Alt: IS61WV51216BLL-10TLI-TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days 0
RFQ
DISTI # IS61WV51216BLL-10TLI-TR
Avnet Silica SRAM Chip Async Single 25V33V 8Mbit 512K X 16 10ns 44Pin TSOPII TR (Alt: IS61WV51216BLL-10TLI-TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now
DISTI # IS61WV51216BLL-10TLI-TR
EBV Elektronik SRAM Chip Async Single 25V33V 8Mbit 512K X 16 10ns 44Pin TSOPII TR (Alt: IS61WV51216BLL-10TLI-TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days EBV - 0
Buy Now
Win Source Electronics IC SRAM 8MBIT PARALLEL 44TSOP II / SRAM - Asynchronous Memory IC 8Mb (512K x 16) Parallel 10 ns 44-TSOP II 7260
  • 6 $10.9404
  • 12 $10.2346
  • 18 $9.8817
  • 26 $9.1759
  • 33 $8.8230
  • 41 $8.4701
$8.4701 / $10.9404 Buy Now

Part Details for IS61WV51216BLL-10TLI-TR

IS61WV51216BLL-10TLI-TR CAD Models

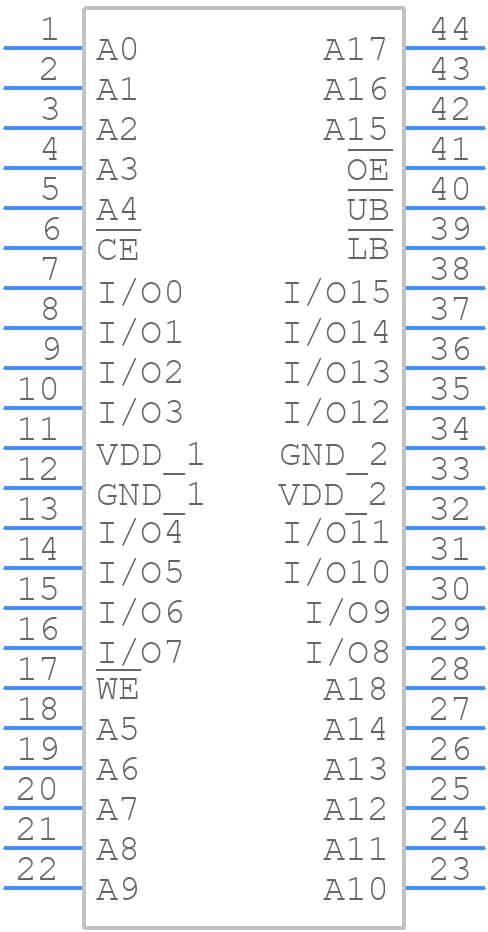

  • Part Symbol

    Part Symbol

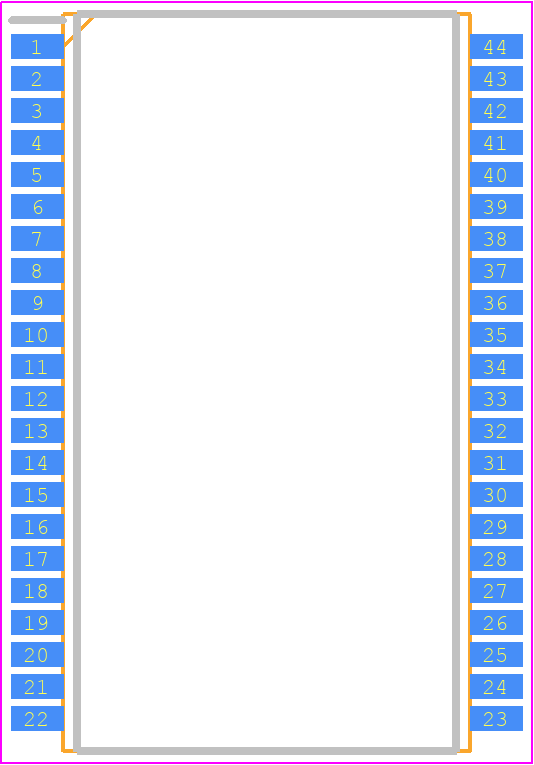

  • Footprint

    footprint

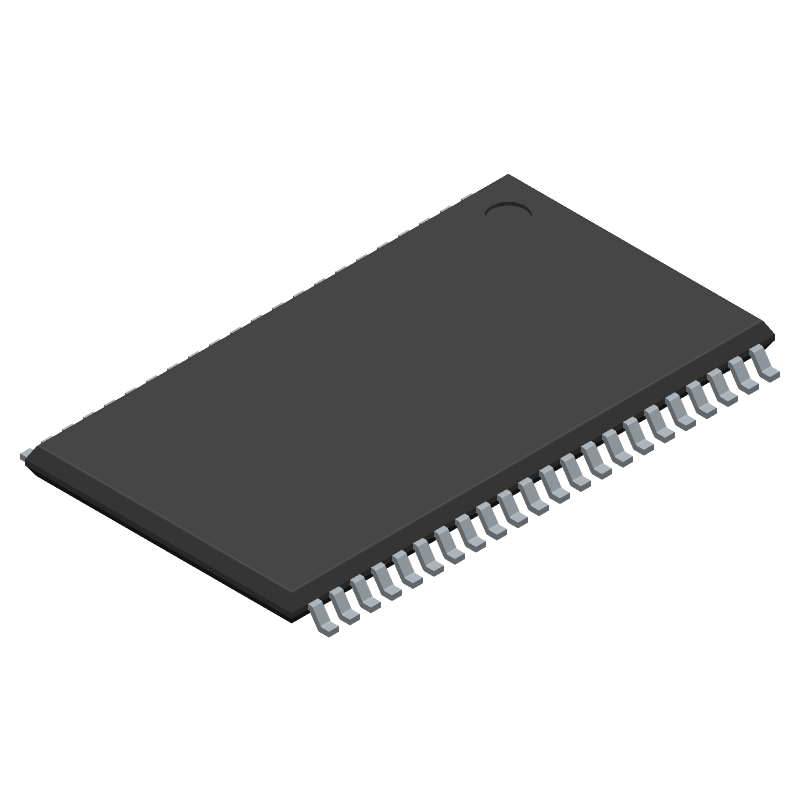

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

IS61WV51216BLL-10TLI-TR Part Data Attributes

Parametric Data
IS61WV51216BLL-10TLI-TR Integrated Silicon Solution Inc
Buy Now Datasheet
Compare Parts:
IS61WV51216BLL-10TLI-TR Integrated Silicon Solution Inc Standard SRAM, 512KX16, 10ns, CMOS, PDSO44, LEAD FREE, PLASTIC, TSOP2-44
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer INTEGRATED SILICON SOLUTION INC
Part Package Code TSOP2
Package Description LEAD FREE, PLASTIC, TSOP2-44
Pin Count 44
Reach Compliance Code compliant
ECCN Code 3A991.B.2.A
HTS Code 8542.32.00.41
Factory Lead Time 10 Weeks
Samacsys Manufacturer Integrated Silicon Solution Inc.
Access Time-Max 10 ns
JESD-30 Code R-PDSO-G44
JESD-609 Code e3
Length 18.415 mm
Memory Density 8388608 bit
Memory IC Type STANDARD SRAM
Memory Width 16
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 44
Number of Words 524288 words
Number of Words Code 512000
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Organization 512KX16
Package Body Material PLASTIC/EPOXY
Package Code TSOP2
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 2.4 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position DUAL
Width 10.16 mm

Alternate Parts for IS61WV51216BLL-10TLI-TR

This table gives cross-reference parts and alternative options found for IS61WV51216BLL-10TLI-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IS61WV51216BLL-10TLI-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
IS61WV51216BLL-10TLI Integrated Silicon Solution Inc $20.3615 Standard SRAM, 512KX16, 10ns, CMOS, PDSO44, LEAD FREE, PLASTIC, TSOP2-44 IS61WV51216BLL-10TLI-TR vs IS61WV51216BLL-10TLI
IS61LV51216-10TI Integrated Silicon Solution Inc Check for Price Standard SRAM, 512KX16, 10ns, CMOS, PDSO44, PLASTIC, TSOP2-44 IS61WV51216BLL-10TLI-TR vs IS61LV51216-10TI
IS61LV51216-12TI Integrated Silicon Solution Inc Check for Price Standard SRAM, 512KX16, 12ns, CMOS, PDSO44, PLASTIC, TSOP2-44 IS61WV51216BLL-10TLI-TR vs IS61LV51216-12TI
IS61LV51216-10T Integrated Silicon Solution Inc Check for Price Standard SRAM, 512KX16, 10ns, CMOS, PDSO44, PLASTIC, TSOP2-44 IS61WV51216BLL-10TLI-TR vs IS61LV51216-10T
IS61LV51216-12T Integrated Silicon Solution Inc Check for Price Standard SRAM, 512KX16, 12ns, CMOS, PDSO44, PLASTIC, TSOP2-44 IS61WV51216BLL-10TLI-TR vs IS61LV51216-12T
IS61WV51216BLL-10TI Integrated Silicon Solution Inc Check for Price 512KX16 STANDARD SRAM, 10ns, PDSO44, PLASTIC, TSOP2-44 IS61WV51216BLL-10TLI-TR vs IS61WV51216BLL-10TI
Part Number Manufacturer Composite Price Description Compare
CY62157EV30LL-55ZSXE Cypress Semiconductor $19.7095 Standard SRAM, 512KX16, 55ns, CMOS, PDSO44, LEAD FREE, TSOP2-44 IS61WV51216BLL-10TLI-TR vs CY62157EV30LL-55ZSXE
IS61LV51216-8TL Integrated Silicon Solution Inc Check for Price Standard SRAM, 512KX16, 8ns, CMOS, PDSO44, LEAD FREE, PLASTIC, TSOP2-44 IS61WV51216BLL-10TLI-TR vs IS61LV51216-8TL
IS62WV51216BLL-70TI Integrated Silicon Solution Inc Check for Price Standard SRAM, 512KX16, 70ns, CMOS, PDSO44, PLASTIC, TSOP2-44 IS61WV51216BLL-10TLI-TR vs IS62WV51216BLL-70TI
HM62V16514LTTI-5 Renesas Electronics Corporation Check for Price 512KX16 STANDARD SRAM, 55ns, PDSO44, 0.400 INCH, PLASTIC, TSOP2-44 IS61WV51216BLL-10TLI-TR vs HM62V16514LTTI-5
K6X8016C3B-UF550 Samsung Semiconductor Check for Price Standard SRAM, 512KX16, 55ns, CMOS, PDSO44, 0.400 INCH, LEAD FREE, TSOP2-44 IS61WV51216BLL-10TLI-TR vs K6X8016C3B-UF550
IS66WV51216DALL-70TLI Integrated Silicon Solution Inc Check for Price Pseudo Static RAM, 512KX16, 70ns, CMOS, PDSO44, 0.400 INCH, LEAD FREE, TSOP2-44 IS61WV51216BLL-10TLI-TR vs IS66WV51216DALL-70TLI
K6X8016T3B-UQ700 Samsung Semiconductor Check for Price Standard SRAM, 512KX16, 70ns, CMOS, PDSO44, 0.400 INCH, LEAD FREE, TSOP2-44 IS61WV51216BLL-10TLI-TR vs K6X8016T3B-UQ700
K6F8016U3M-RB70 Samsung Semiconductor Check for Price Standard SRAM, 512KX16, 70ns, CMOS, PDSO44, 0.400 INCH, REVERSE, TSOP2-44 IS61WV51216BLL-10TLI-TR vs K6F8016U3M-RB70
M68AW512ML55ND1T STMicroelectronics Check for Price 512KX16 STANDARD SRAM, 55ns, PDSO44, PLASTIC, TSOP2-44 IS61WV51216BLL-10TLI-TR vs M68AW512ML55ND1T
K6F8016U3M-RB550 Samsung Semiconductor Check for Price Standard SRAM, 512KX16, 55ns, CMOS, PDSO44, 0.400 INCH, REVERSE, TSOP2-44 IS61WV51216BLL-10TLI-TR vs K6F8016U3M-RB550

IS61WV51216BLL-10TLI-TR Related Parts

IS61WV51216BLL-10TLI-TR Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the IS61WV51216BLL-10TLI-TR is -40°C to 85°C.

  • It is recommended to power up the VCC and VCCQ pins simultaneously, and power down the VCCQ pin before the VCC pin. A slow power ramp-up and ramp-down is also recommended to prevent latch-up.

  • A decoupling capacitor of 0.1uF to 1uF is recommended to be placed as close as possible to the VCC and VCCQ pins to filter out noise and reduce power supply ripple.

  • The IS61WV51216BLL-10TLI-TR is designed to operate at 3.3V, but it can also be used in systems with a 2.5V or 1.8V supply voltage with some performance degradation. However, it is not recommended to use it with a supply voltage above 3.6V.

  • To prevent bus contention, ensure that only one device is driving the bus at a time. For bus loading, it is recommended to use a buffer or a repeater to reduce the capacitive load on the bus.
