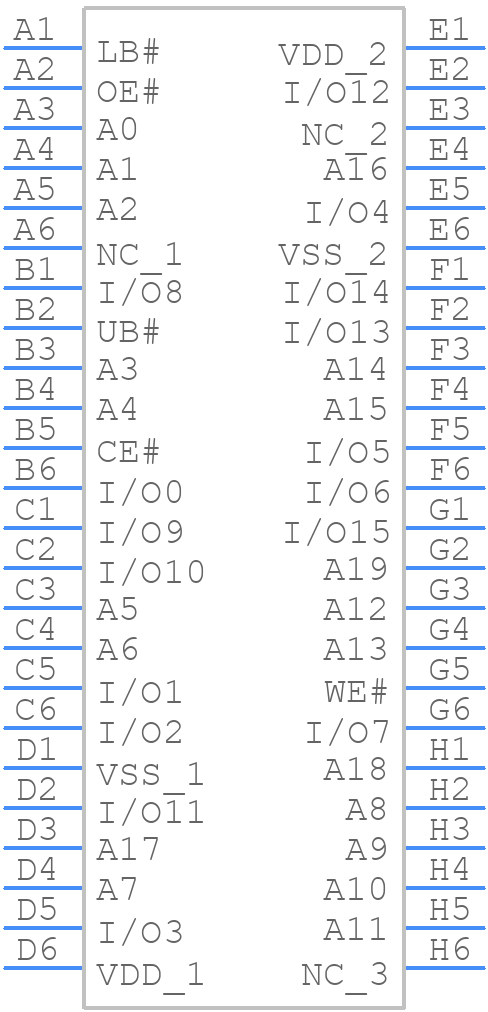

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IS61WV102416DBLL-10BLI by Integrated Silicon Solution Inc
Results Overview of IS61WV102416DBLL-10BLI by Integrated Silicon Solution Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
IS61WV102416DBLL-10BLI Information
IS61WV102416DBLL-10BLI by Integrated Silicon Solution Inc is an SRAM.
SRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for IS61WV102416DBLL-10BLI
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
65AC6030
|
Newark | Sram, 16Mbit, 10Ns, Bga-48, Memory Size:16Mbit, Sram Memory Configuration:1M X 16Bit, Supply Voltage Range:2.4V To 3.6V, Memory Case Style:Bga, No. Of Pins:48Pins, Access Time:10Ns, Operating Temperature Min:-40°C, Operating Rohs Compliant: Yes |Integrated Silicon Solution/issi IS61WV102416DBLL-10BLI RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 113 |
|
$11.4300 / $14.1600 | Buy Now |
|
DISTI #
706-1540-ND
|
DigiKey | IC SRAM 16MBIT PARALLEL 48TFBGA Min Qty: 1 Lead time: 10 Weeks Container: Tray |
1312 In Stock |
|
$11.4466 / $14.1800 | Buy Now |
|
DISTI #
IS61WV102416DBLL-1
|
Avnet Americas | SRAM Chip Async Single 2.5V/3.3V 16M-Bit 1M X 16 10ns 48-Pin TSOP-I - Trays (Alt: IS61WV102416DBLL-1) RoHS: Not Compliant Min Qty: 480 Package Multiple: 480 Lead time: 10 Weeks, 0 Days Container: Tray | 0 |
|
$9.1597 / $10.0681 | Buy Now |
|
DISTI #
870-WV102416DBL10BLI
|
Mouser Electronics | SRAM 16Mb High-Speed Async 1Mbx16 10ns RoHS: Compliant | 1808 |
|
$11.3900 / $14.1700 | Buy Now |
|
DISTI #
IS61WV102416DBLL-10BLI
|
Avnet Asia | SRAM Chip Async Single 2.5V/3.3V 16M-Bit 1M X 16 10ns 48-Pin TSOP-I (Alt: IS61WV102416DBLL-10BLI) RoHS: Compliant Min Qty: 480 Package Multiple: 480 Lead time: 16 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
IS61WV102416DBLL-10BLI
|
Avnet Silica | SRAM Chip Async Single 25V33V 16Mbit 1M X 16 10ns 48Pin TFBGA Tray (Alt: IS61WV102416DBLL-10BLI) RoHS: Compliant Min Qty: 480 Package Multiple: 480 Lead time: 14 Weeks, 0 Days | Silica - 480 |
|
Buy Now | |
|
|
LCSC | 2.4V3.6V 16Mbit BGA-48(6x8) SRAM ROHS | 624 |
|
$9.0174 / $13.1870 | Buy Now |
Part Details for IS61WV102416DBLL-10BLI
IS61WV102416DBLL-10BLI CAD Models
IS61WV102416DBLL-10BLI Part Data Attributes
|
|
IS61WV102416DBLL-10BLI
Integrated Silicon Solution Inc
Buy Now
Datasheet
|
Compare Parts:
IS61WV102416DBLL-10BLI
Integrated Silicon Solution Inc
Standard SRAM, 1MX16, 10ns, CMOS, PBGA48, 6 X 8 MM, LEAD FREE, MO-207, TFBGA-48
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INTEGRATED SILICON SOLUTION INC | |
| Package Description | BGA-48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.B.2.A | |
| HTS Code | 8542.32.00.41 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Integrated Silicon Solution Inc. | |
| Access Time-Max | 10 ns | |
| I/O Type | COMMON | |
| JESD-30 Code | R-PBGA-B48 | |
| Length | 8 mm | |
| Memory Density | 16777216 bit | |
| Memory IC Type | STANDARD SRAM | |
| Memory Width | 16 | |
| Number of Functions | 1 | |
| Number of Ports | 1 | |
| Number of Terminals | 48 | |
| Number of Words | 1048576 words | |
| Number of Words Code | 1000000 | |
| Operating Mode | ASYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 1MX16 | |
| Output Characteristics | 3-STATE | |
| Output Enable | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFBGA | |
| Package Equivalence Code | BGA48,6X8,30 | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY, THIN PROFILE, FINE PITCH | |
| Parallel/Serial | PARALLEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.2 mm | |
| Standby Voltage-Min | 2 V | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.4 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.75 mm | |
| Terminal Position | BOTTOM | |
| Width | 6 mm |
Alternate Parts for IS61WV102416DBLL-10BLI
This table gives cross-reference parts and alternative options found for IS61WV102416DBLL-10BLI. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of IS61WV102416DBLL-10BLI, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| IS61WV102416FBLL-10T2LI | Integrated Silicon Solution Inc | $11.3537 | Standard SRAM, 1MX16, 10ns, CMOS, PDSO54, TSOP2-54 | IS61WV102416DBLL-10BLI vs IS61WV102416FBLL-10T2LI |
| IS61WV102416EDBLL-10B2LI | Integrated Silicon Solution Inc | $13.5920 | Standard SRAM, 1MX16, 10ns, CMOS, PBGA48, 6 X 8 MM, LEAD FREE, MO-207, TFBGA-48 | IS61WV102416DBLL-10BLI vs IS61WV102416EDBLL-10B2LI |
| AS7C316098B-10TIN | Alliance Memory Inc | $17.5591 | Standard SRAM, 1MX16, 10ns, CMOS, PDSO54, 0.400 INCH, ROHS COMPLIANT, MS-024FA, TSOP2-54 | IS61WV102416DBLL-10BLI vs AS7C316098B-10TIN |
| IS64WV102416FBLL-10CTLA3 | Integrated Silicon Solution Inc | $21.6082 | Standard SRAM, 1MX16, 10ns, CMOS, PDSO48, TSOP1-48 | IS61WV102416DBLL-10BLI vs IS64WV102416FBLL-10CTLA3 |
| AS7C316098A-10TINTR | Alliance Memory Inc | $25.8800 | Standard SRAM, 1MX16, 10ns, CMOS, PDSO48, 12 X 20 MM, GREEN, MO-142DD, TSOP1-48 | IS61WV102416DBLL-10BLI vs AS7C316098A-10TINTR |
| AS7C316098A-10BINTR | Alliance Memory Inc | $26.0850 | Standard SRAM, 1MX16, 10ns, CMOS, PBGA48, 6 X 8 MM, GREEN, MO-207, TFBGA-48 | IS61WV102416DBLL-10BLI vs AS7C316098A-10BINTR |
| IS61WV102416FBLL-10TLI | Integrated Silicon Solution Inc | $5.4667 | Standard SRAM, 1MX16, 10ns, CMOS, PDSO48, TSOP1-48 | IS61WV102416DBLL-10BLI vs IS61WV102416FBLL-10TLI |
| IS61WV102416FBLL-10T2LI-TR | Integrated Silicon Solution Inc | Check for Price | Standard SRAM, | IS61WV102416DBLL-10BLI vs IS61WV102416FBLL-10T2LI-TR |
| IS61WV102416EDBLL-10BLI-TR | Integrated Silicon Solution Inc | Check for Price | Standard SRAM, 1MX16, 10ns, CMOS, PBGA48, MINIBGA-48 | IS61WV102416DBLL-10BLI vs IS61WV102416EDBLL-10BLI-TR |
| AS7C316098A-10BIN | Alliance Memory Inc | Check for Price | Standard SRAM, 1MX16, 10ns, CMOS, 6 X 8 MM, GREEN, MO-207, TFBGA-48 | IS61WV102416DBLL-10BLI vs AS7C316098A-10BIN |
IS61WV102416DBLL-10BLI Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the IS61WV102416DBLL-10BLI is -40°C to 85°C.
-
It is recommended to power up the VCC and VCCQ pins simultaneously, and power down the VCCQ pin before the VCC pin. A slow power ramp-up and ramp-down is also recommended to prevent latch-up.
-
A decoupling capacitor of 0.1uF to 1uF is recommended to be placed as close to the VCC pin as possible to filter out noise and reduce power supply ripple.
-
It is recommended to use a voltage supervisor or a power-on reset circuit to ensure that the SRAM is in a known state during power-up and power-down sequences. Additionally, a capacitor can be used to hold up the power supply during brownout conditions.
-
The maximum clock frequency supported by the IS61WV102416DBLL-10BLI is 133MHz.
