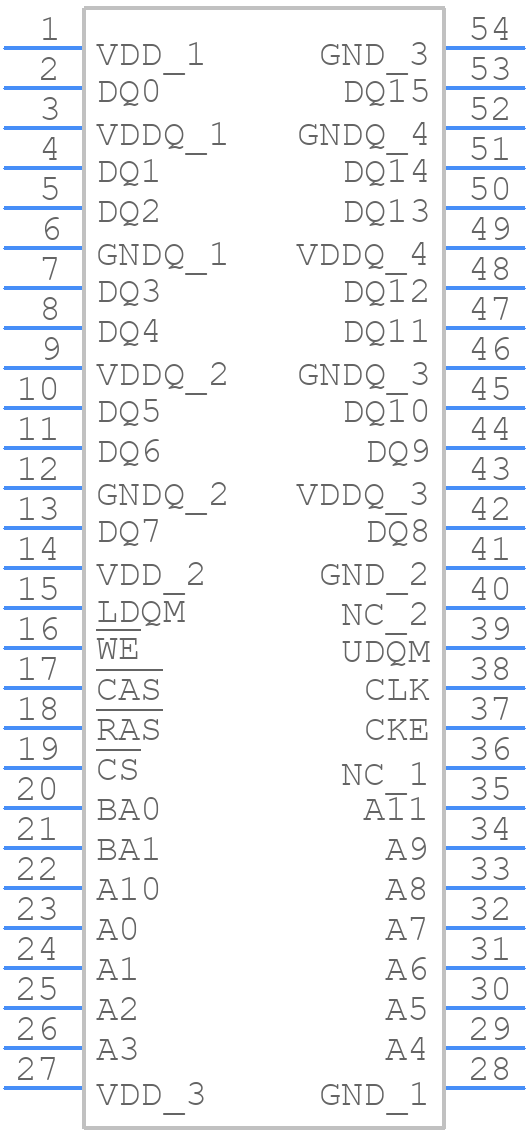

Part Symbol
-

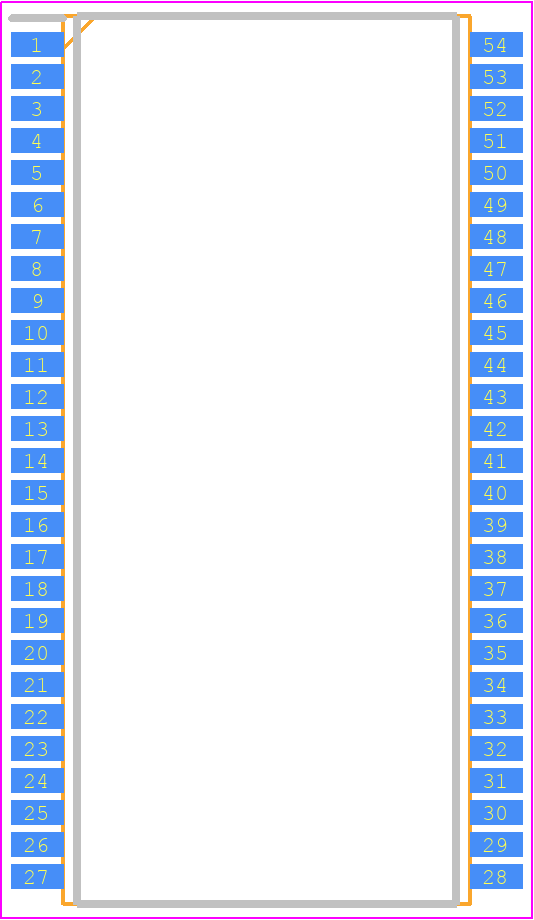

Footprint
-

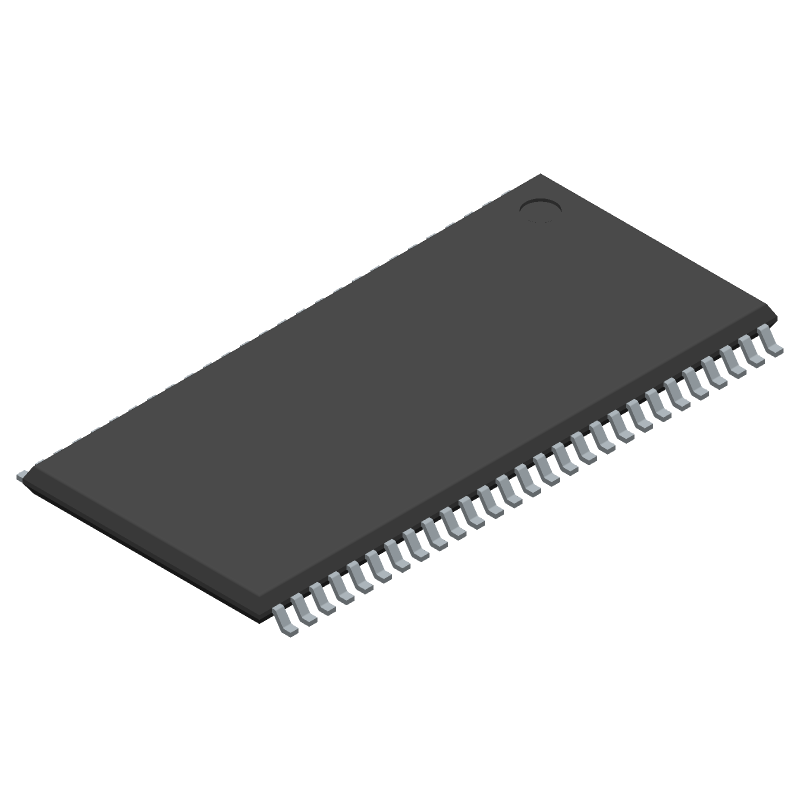

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IS42S16400J-7TL-TR by Integrated Silicon Solution Inc
Results Overview of IS42S16400J-7TL-TR by Integrated Silicon Solution Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Computing and Data Storage
IS42S16400J-7TL-TR Information
IS42S16400J-7TL-TR by Integrated Silicon Solution Inc is a DRAM.
DRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for IS42S16400J-7TL-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52T1701
|
Newark | 64M, 3.3V, Sdram, 4Mx16, 143Mhz, 54 Pin Tsop Ii Rohs, T&r |Integrated Silicon Solution/issi IS42S16400J-7TL-TR RoHS: Not Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
870-IS42S16400J7TLTR
|
Mouser Electronics | DRAM 64M (4Mx16) 143MHz SDRAM, 3.3v RoHS: Compliant | 6480 |
|
$1.2900 / $1.8800 | Buy Now |
Part Details for IS42S16400J-7TL-TR
IS42S16400J-7TL-TR CAD Models
IS42S16400J-7TL-TR Part Data Attributes
|
|
IS42S16400J-7TL-TR
Integrated Silicon Solution Inc
Buy Now
Datasheet
|
Compare Parts:
IS42S16400J-7TL-TR
Integrated Silicon Solution Inc
Synchronous DRAM, 4MX16, 5.4ns, CMOS, PDSO54,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | INTEGRATED SILICON SOLUTION INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.02 | |
| Samacsys Manufacturer | Integrated Silicon Solution Inc. | |
| Access Time-Max | 5.4 ns | |
| Clock Frequency-Max (fCLK) | 143 MHz | |
| I/O Type | COMMON | |
| Interleaved Burst Length | 1,2,4,8 | |
| JESD-30 Code | R-PDSO-G54 | |
| Memory Density | 67108864 bit | |
| Memory IC Type | SYNCHRONOUS DRAM | |
| Memory Width | 16 | |
| Number of Terminals | 54 | |
| Number of Words | 4194304 words | |
| Number of Words Code | 4000000 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Organization | 4MX16 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP | |
| Package Equivalence Code | TSOP54,.46,32 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Qualification Status | Not Qualified | |
| Refresh Cycles | 4096 | |
| Sequential Burst Length | 1,2,4,8,FP | |
| Standby Current-Max | 0.002 A | |
| Supply Current-Max | 0.13 mA | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | DUAL |
IS42S16400J-7TL-TR Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the IS42S16400J-7TL-TR is 0°C to 85°C.
-
To enter self-refresh mode, the SDRAM requires a specific sequence of commands, including a NOP or DES command, followed by a SELF command. The device will then enter self-refresh mode, reducing power consumption.
-
The minimum clock cycle time for the IS42S16400J-7TL-TR is 7.5ns, which corresponds to a maximum clock frequency of 133MHz.
-
After power-up, the SDRAM requires a specific initialization sequence, including a power-on reset, a mode register set command, and a refresh command. Refer to the datasheet for the detailed initialization sequence.
-
The maximum data transfer rate for the IS42S16400J-7TL-TR is 1066MB/s, assuming a clock frequency of 133MHz and a data bus width of 16 bits.
